A4 Copy Paper Cutting and packing Machine

A4 Copy Paper Cutting and packing Machine

Model NO.: KCP-A4-5

Quantity:

Product Description

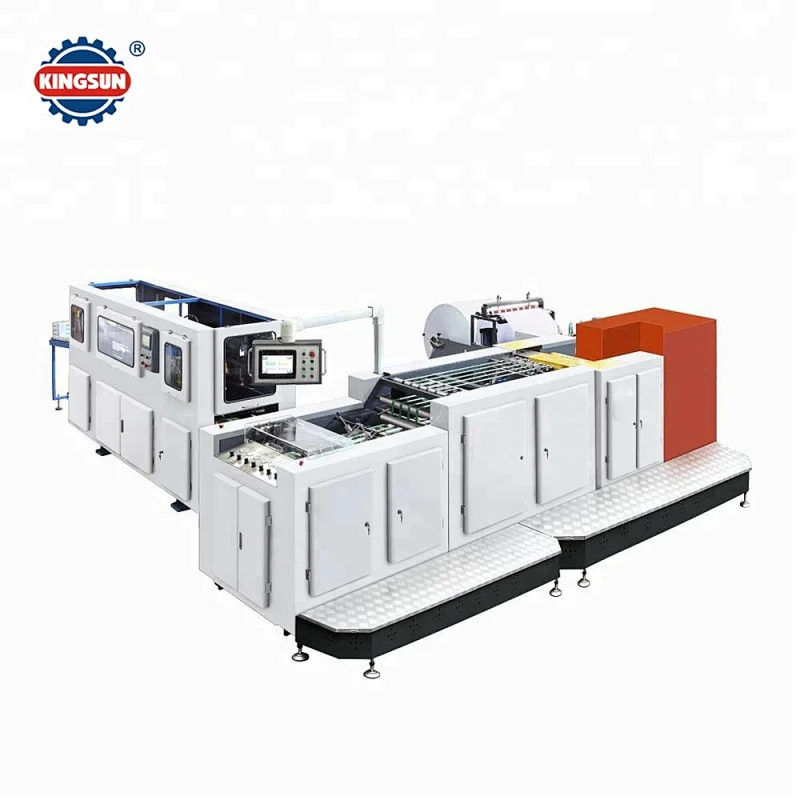

A4 Copy paper cutting and packing machine is new advanced equipment for converting A4 copy paper. With features of high automation and low labor intensity. It is an integration of electric, PLC controlling system and mechanical automation.

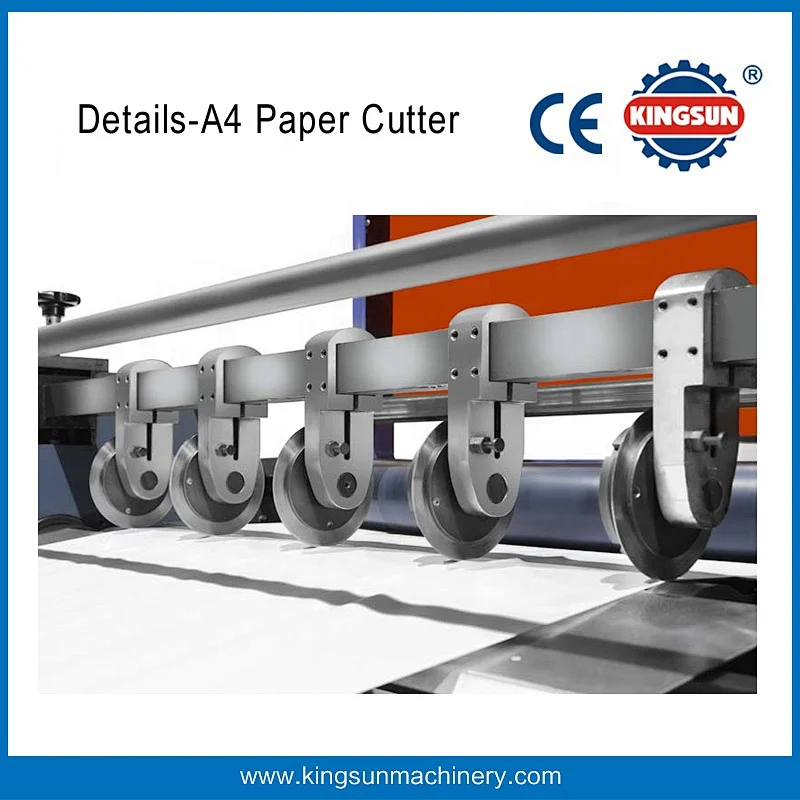

The whole process consists of paper roll unwinding, slitting, sheeting, counting, conveying, reams ejecting, packing and delivery.
This a3 a4 paper cutting and packaging machine works for both a3 and a4 size, it realizes cutting and packing in one process.

Main Structures:

1. Less occupied area needed.

2. High speed

3. High precision

4. Less labors required, 3 workers can well handle this compact A4 cutting and packing machine.

5. Key parts are using international famous recognized brands, ensuring a stable and reliable service life.

Main Specifications:

Gross width	850mm
Net width	840mm
Number of cutting	4cuttings-A4 210mm(width) depends on sizes

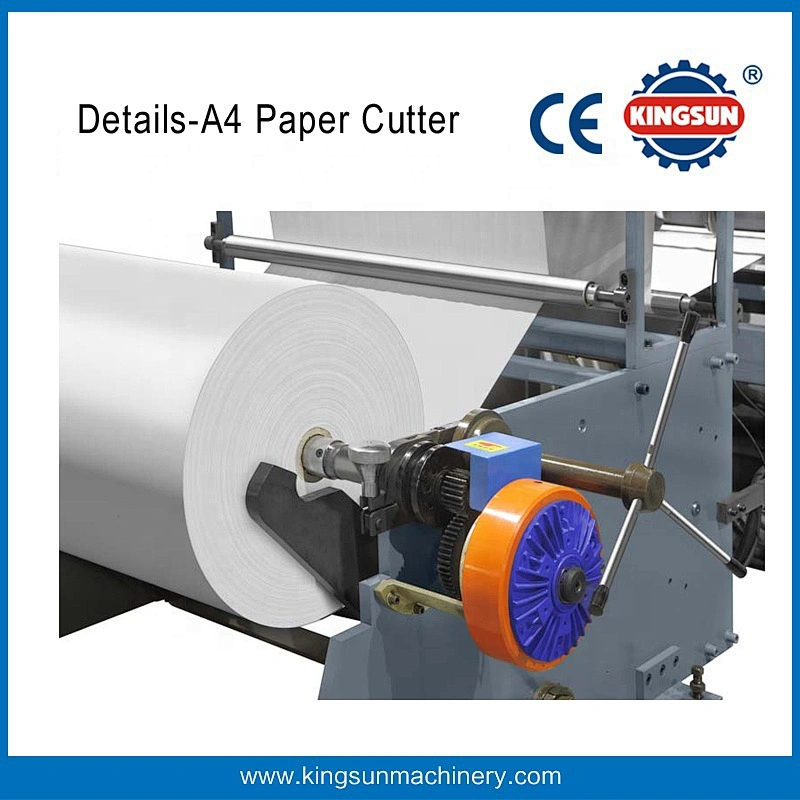

Diameter of paper roll	400-1200mm
Paper core ID	3”(76.2mm)-6”(152.4mm)
Paper weight	60-100gsm
Length of paper cutting	A4(297mm)
Paper quantity	0-500pages
Ream height	65mm(Max)
Designing speed of paper sheeting	300m/min
Times of cutting	840/min
Cycle time of ream exhausted	6-8/min
Real speed of paper sheeting	250m/min
Times of cutting	840/min
Cycle time of ream exhausted	6-8 reams/min
Max thickness of paper sheeting	(max)400gsm(4×100gsm)
Paper sheeting accuracy	±0.2mm(error)
Paper cutting condition	1.Speed not change 2.Paper roll with no breakage 3. Qulified paper roll.
Transmission	AC Frequency converter, stepless speed regulating
Main power source	3phase/380v/50Hz or special made
Adjustable voltage	220V AC/22V DC
Installed capacity	20KW
Air consumption	300NL/min
Pneumatic pressure	6bar
Overall dimension	7 x 7 x 2.1mm
Weight	9T
