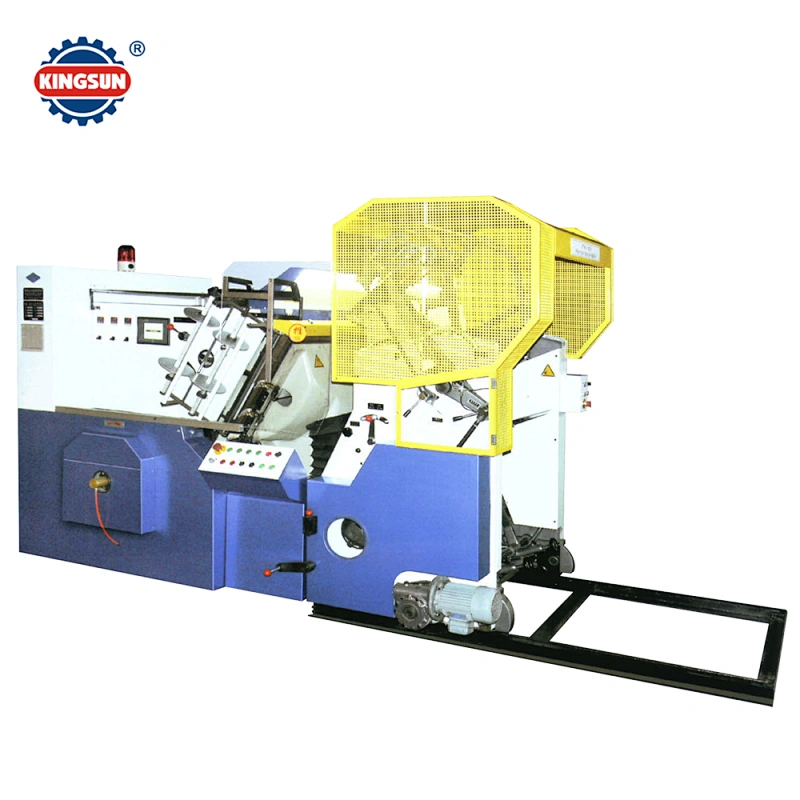

ATML-800 Automatic Hot Foil Stamping And Die Cutting Machine
automatic hot stamping machine
ATML-800 Automatic Hot Foil Stamping And Die Cutting Machine

ATML-800 Automatic Hot Foil Stamping And Die Cutting Machine

Model NO.
ATML-800
Quantity:

ATML-800Automatic hot stamping and die cutting machine



Features:

1. Designed for hot stamping, die cutting, pressing convex and creasing.

2. Realized in feeding, die cutting, paper collecting all in one process.

3. Consists of main four parts: Main motor, hot stamping unit, auto feeder and electric unit.

4. The electric unit includes of main motor control, feeder/ collector control, foil feeder control.

5. With automatic lubrication system.

Main specifications:

Model

ATML-800

Max. sheet size

800x580mm

Min. sheet size

280x220mm

Inner chase dimension

800x532mm

Sheet feeder stacking height

800mm

Sheet collection stacking height

160mm

Application range of cardboard

100-2000g/m2

Max. speed

2000/H

Air pump displacement

40m2/H

Power of electric hot plate

8kw

Max. pressure

110x104N

Power

12kw

Weight

4500kg

Dimensions(L X W X H)

2700x1880x2020mm
