YW-E Automatic Paper Embossing Machine
YW-E Automatic Paper Embossing Machine

YW-E Automatic Paper Embossing Machine

Model NO.
YW-E
Quantity:

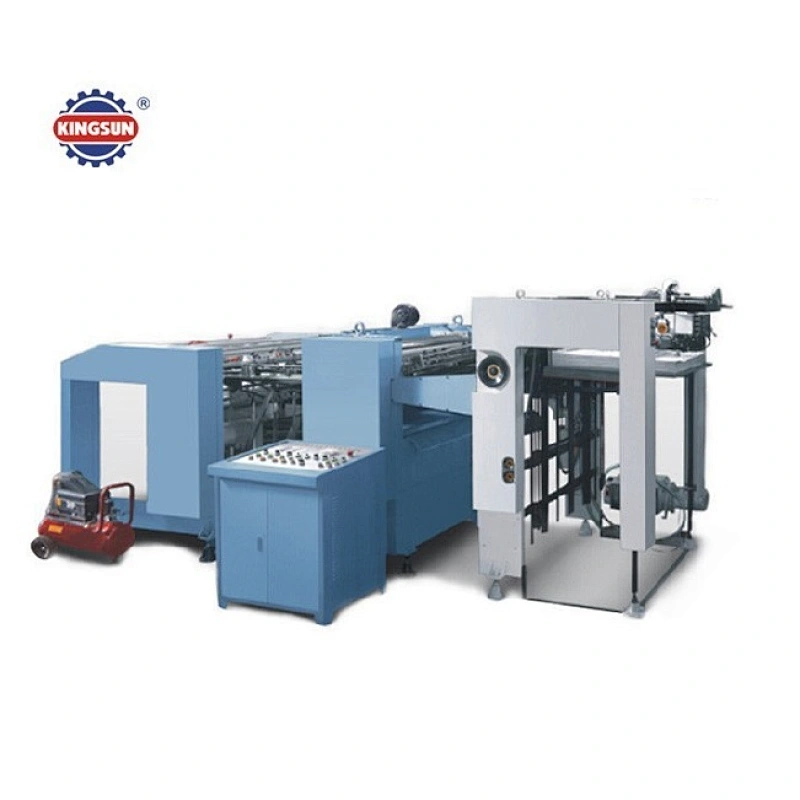

YW-E  Automatic Paper Embossing Machine

This automatic feed paper embossing machine can automatic feeding & collecting paper. It adopted frequency converter, automatic hydraulic system and pneumatic blade, it is characterized by controllable speed, double-sheet control, automatic counting, etc. The average speed can range from 3000~5000 Pcs/H. It is applied to embossing the surfaces of paper like packing products, playing cards, gift cards, art paper, golden and silver card paper, etc. After embossed, this can greatly upgrade the paper so you can get more value from this converting process.

Main specifications:

Model

YW-1150E

Max Embossing Speed(m/min)

80

Max Embossing Width(mm)

1000

Paper Range(g/m2)

>160

Operating pressure(Mpa)

2-10

Main Motor Power(kw)

16

Vacuum Pressure(Mpa)

0.06

Air Source Pressure(Mpa)

1.8-1.0

Overall Dimension(L X W X H)

4900×1850×1850

Net Weight(kg)

4200
