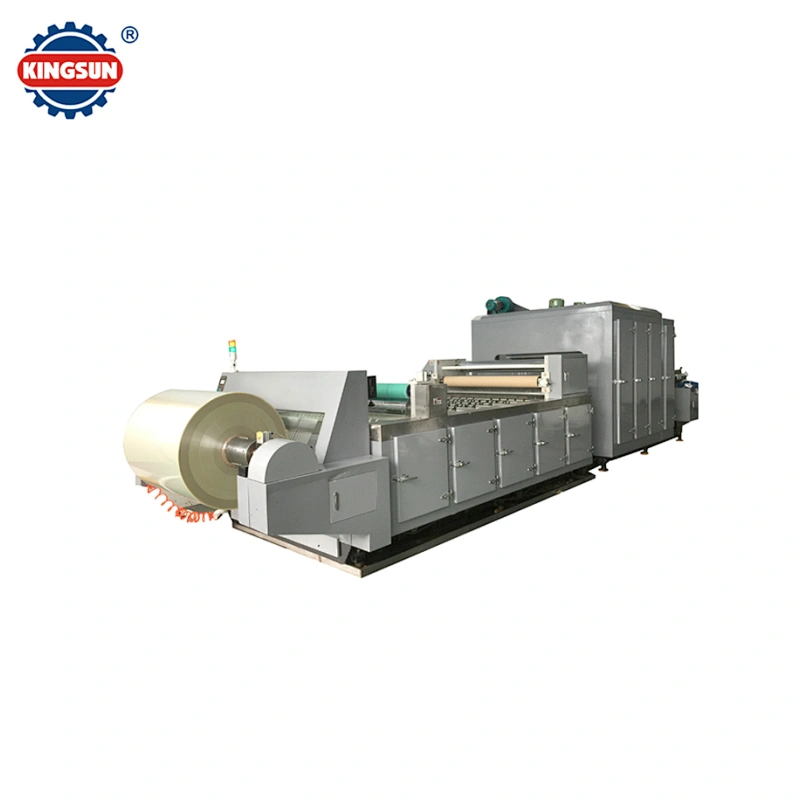

Demetalizing Machine for Holographic Metalized Film Window Making
Demetalizing Machine for Holographic Metalized Film Window Making

Demetalizing Machine for Holographic Metalized Film Window Making

Model NO.
KLJ-1400
Quantity:

1. Description of demetallizing machine:

This series demetalizing machine is the special equipment for spot washing or demetallizing the metallized BOPP film, PET film, PVC film, hologram embossed film, so as to have window see-through effect on the final flexible packaging products.

There is two ways to washing: water washing, and chemical demetallizing.

2. Basic Material:

Metalized film, hologram embossed film, transfer film or printed film.

  • BOPP thickness 20~100μm
  • PET thickness 12~100μm
  • PVC thickness 30~200μm

3. Technical Specifications:

Model

Working width (mm)

Working speed

(M/min)

Winding diameter (mm)

Total power (kw)

Machine dimension (cm)

Weight

(t)

KLJ-800

700

60~100

700

20

720×160×185

2.8

KLJ-1100

1000

60~100

700

20

720×180×185

3

KLJ-1400

1300

60~100

700

24

720×210×185

3.5

KLJ-1700

1600

60~100

700

28

720×240×185

4

4. Machine Structure:

  • Unwinding and rewinding station
  • Chemical and water tank
  • Drying tunnel
  • Squeezing roller cylinder system
  • IR inspection sensor
