double side thermal laminating machine
double side thermal laminating machine

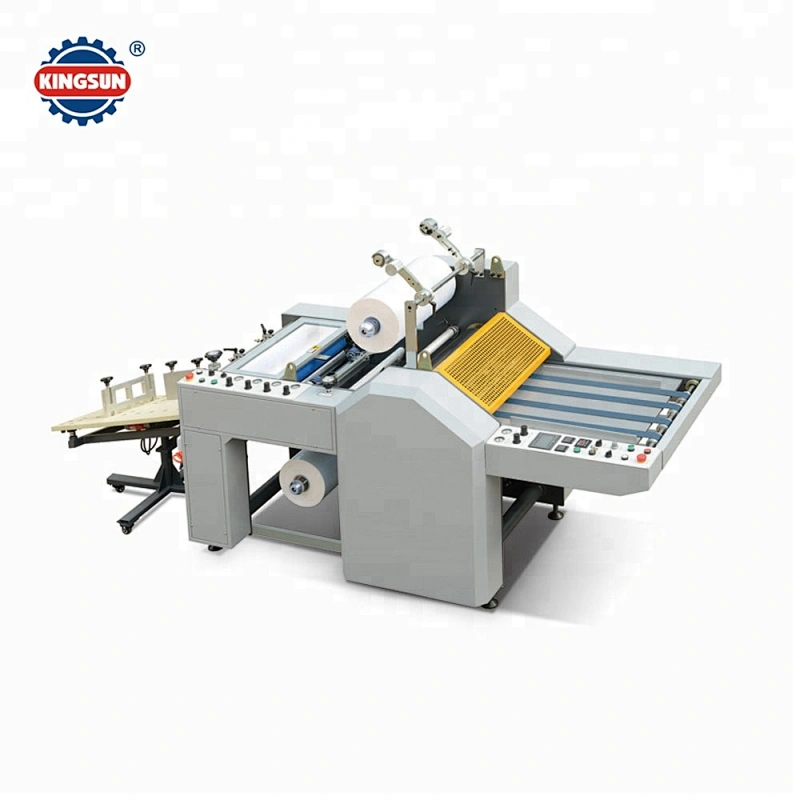

KFM-520B Double Sided Thermal Laminator

Model NO.

KFM-520B Double Sided Thermal Laminator


  1. This ble to do single or double side lamination.
  2. Man- machine interface system: color touch screen, easy for operation; it realizes automatic operation after directly data input for paper size, overlap length and working speed, working status can be tracked via the screen.
  3. Schneider frequency converter, speed variable
  4. The upper & the lower heating rollers with casted aluminum heater, independent temperature control, which ensures the temperature constantly and makes it precise for the double lamination.
  5. Pneumatic pressure system ensures a stable pressure; it can be adjusted upon requests.
  6. The anti-curve device can be adjusted by the turbine gearbox, the laminated paper can be leveled and it does not curve after cutting.
  7. Pneumatic sheet cutting system able to have sheet laminated paper.
  8. The receiving table equipped for the sheet laminated paper.

Technical specifications



Max. paper size


Min. paper size

290 x 290mm

Working speed

25m/min (single); 10m/min (double)

Paper thickness


Total power



3300 x 1150 x 1400mm

Machine weight
