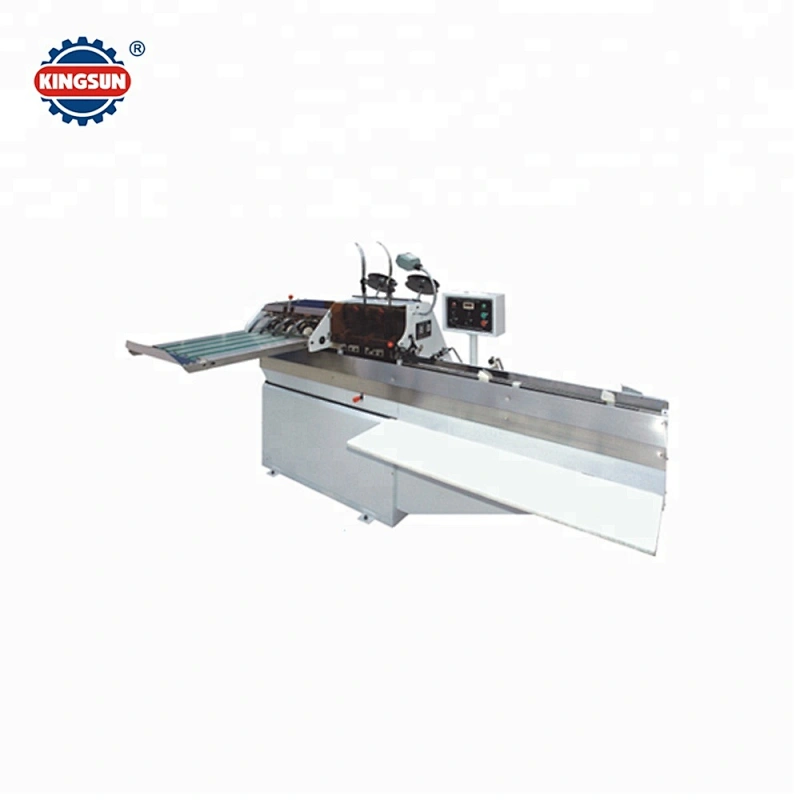

DQ404 model semi-automatic book saddle stitch binding machine
DQ404 model semi-automatic book saddle stitch binding machine

DQ404 model semi-automatic book saddle stitch binding machine

Model NO.

Semi automatic book stitching machine


This semi-automatic book stitch binding machine applies to stitching bind all kinds presswork of notebooks, books,magazines, ads and directions. Generally, it has two nail heads to bind and at most it has four nail head to bind. No matter single united book or double united book can be stapled one time. The machine adopts the frequency inverter timing system. which makes the work calm and timing conveniently and also bind stagger and non-stagger to meet the different requirements.
After the pages put onto the rail by manually, the machine can send the book, stitch bind and withdraw automatically. It has easy operation,convenient repair,low fault rate and big binding scope and so on.

Main specifications:

Max binding size

450×305 mm

Min binding size

127×89 mm

Binding wideness

0.2-4 mm

Binding speed

30-90 time/minute

Steel wire to use

25# 26#

Power of electric use



370 kg

Overall size

2300×990×1420 mm
