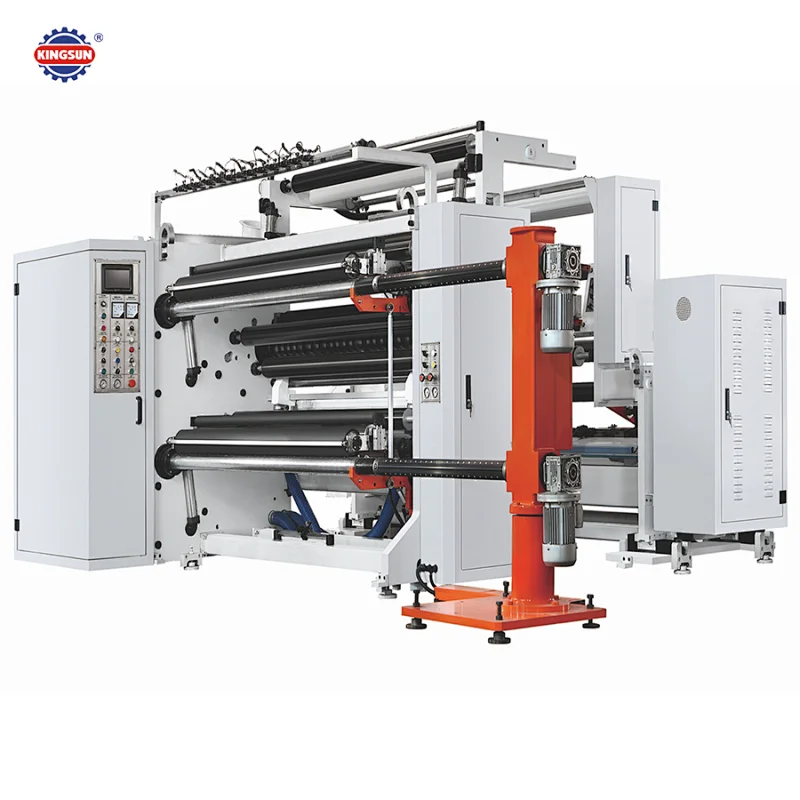

China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine
China High Speed Automatic Roll Paper Slitter Rewinder Machine

China High Speed Automatic Roll Paper Slitter Rewinder Machine

Model NO.
KSFQ-1300G
Quantity:

KSFQ-1300G China High Speed Automatic Roll Paper Slitter Rewinder Machine

KSFQ-1300G china paper rewinder slitter machine is mainly for jumbo roll paper or film slitting into small reels material,fast speed and reliable, main parts all world famous brand.

Main technical parameter

Maximum unwinding diameter

φ1200mm

Maximum rewinding diameter

φ600mm

Maximum web width

1300mm

Min slitting width

50mm

Rewinding paper core diameter

3″

Unwinding paper core diameter

3/6″

Maximum machine speed

400m/min

EPC precision

≤0.40mm

Unwinding motor power

Pneumatic brake (2 sets)

Rewinding motor power

3.5kw ( 2 sets)

Driven motor power

5.5kw

Total power of machine

25kw

Machine dimension

4100 (L) x 4700 (W) x 2100mm (H)

Machine weight

About 4200kg

Applicable material

Paper, adhesive paper

Machine color

Milk white (other colors can choose)

Main electrical configuration

PLC

Simens

Man-machine interface

Taiwan, Weinview

Frequency converter

Japan, Yaskawa

EPC controller

Guangzhou

Web guide DC motor

NEC, Japan

Main motor

Simens

Rewinding motor

Simens

Main pneumatic components

AirTAC

Electric proportional valve

Japan, SMC

Precision pressure regulator value

Japan, SMC

Ultrasonic sensor

German, P+F

Main bearing

NSK, Japan

Main low voltage electric

France, Schneider
