Automatic Paper Cup Making Machine
Automatic Paper Cup Making Machine

Automatic Paper Cup Making Machine

Model NO.
JBZ-S04
Quantity:

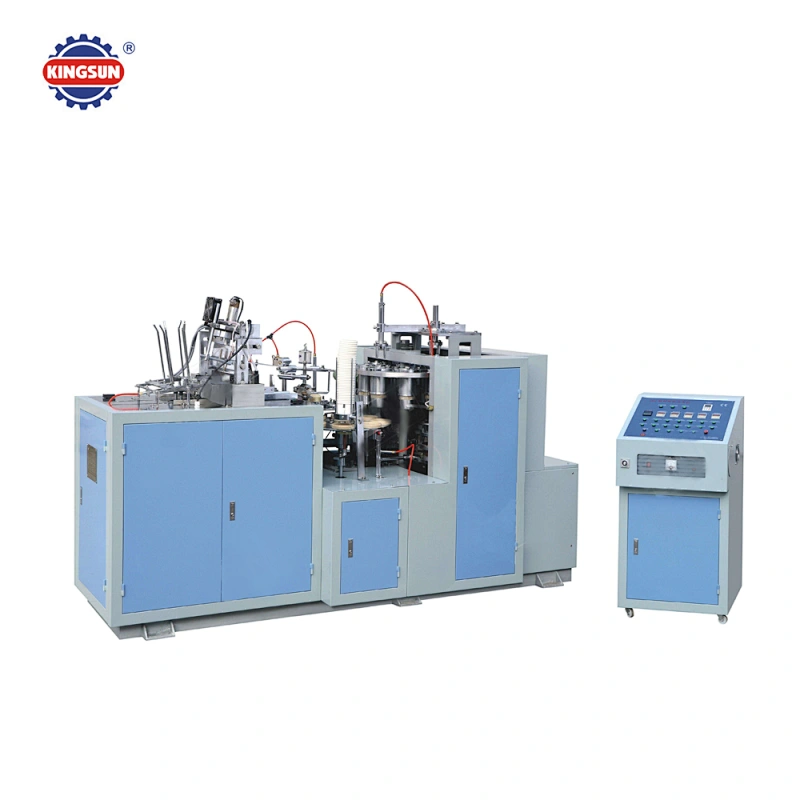

JBZ-S04 Automatic Paper Cup Making Machine

JBZ-S04 paper cup making machine is a multi - station automatic forming machine. Double coated paper cups are produced by automatic paper feeding, ultrasonic welding, top lubrication, down punching, down heating, down knurling, edge rolling, cup folding and other processes. The sealing system is ultrasonic sealing machine, suitable for double-sided PE coated paper full printing design cup. The cup can be used for hot or cold drinks, such as soft drinks, ice cream and coffee etc.

Main technical parameter

Model

JZB-S04

Cup size

2-6 oz (for ice-cream)
Raw materialTwo side PE coated paper and one side PE coated paper
Top mouth diameter

50-80mm

Bottom diameter

35-70mm

Cup height

30-60mm

Bottom depth

≤10

Angle

4-6°

Capacity

40-50pcs/min

Power supply

380V 50HZ(it can be changed if customer require)

Total power

5kw

Weight

1600kg

Package size(L*W*H)

2600×1200×1600mm

600×700×1000mm

Wooden case packing(L*W*H)

2800×1350×1800mm

800×750×1100mm

Air source

0.2m³/min;0.6MPa(customer-owned)
