High Speed Paper Slitting And Rewinding Machine
High Speed Paper Slitting And Rewinding Machine
High Speed Paper Slitting And Rewinding Machine
High Speed Paper Slitting And Rewinding Machine
High Speed Paper Slitting And Rewinding Machine
High Speed Paper Slitting And Rewinding Machine
High Speed Paper Slitting And Rewinding Machine

High Speed Paper Slitting And Rewinding Machine

Model NO.
KFQ-2500
Quantity:

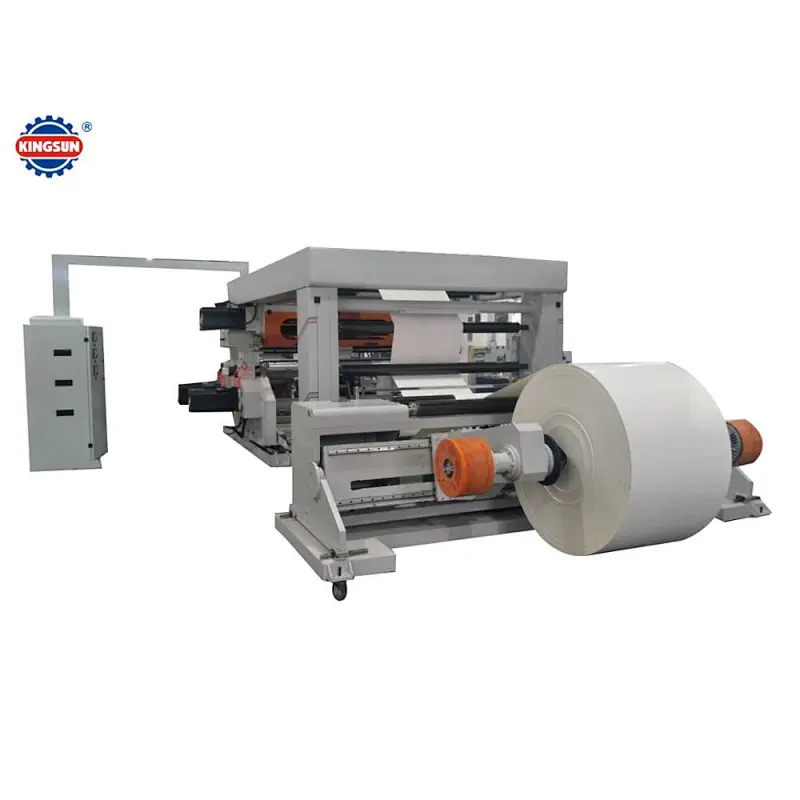

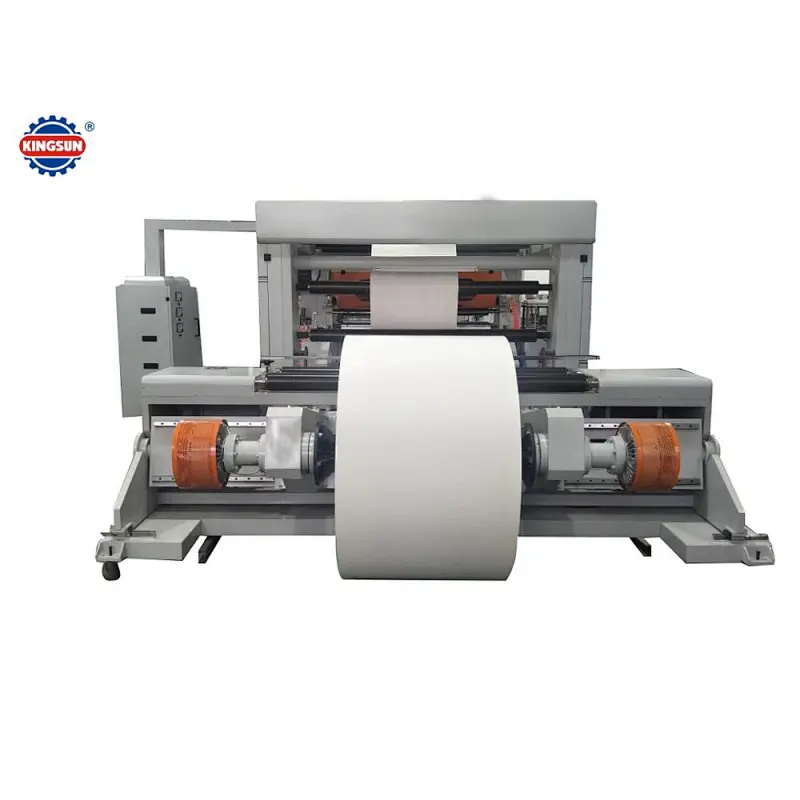

KFQ-2500 High Speed Paper Slitting And Rewinding Machine

This paper slitting and rewinding machine is used for slitting and rewinding various large rolling materials such as paper,(50g/㎡~550g/㎡ non-carbon paper, capacitance paper, bill paper), double-face adhesive tape, coated paper, etc.

Main technical parameter

Model

KFQ-2500

Width

2500mm

Thickness of material

50g / ㎡-500g / ㎡ (depending on the material)

Max diameter of raw material

φ1700mm

Max diameter of rewinding

φ1500mm

Width of material

2500mm

Diameter of rewinding pneumatic shaft

φ76mm (3”)

Rewinding shaft

2 pcs(can rewinding with single shaft )

Slitting accuracy

±0.2mm

Speed

600m/min

Total power

45-68kw

Weight

About 15000kg

Dimension(LxWxH)

6500X4800X2500mm
