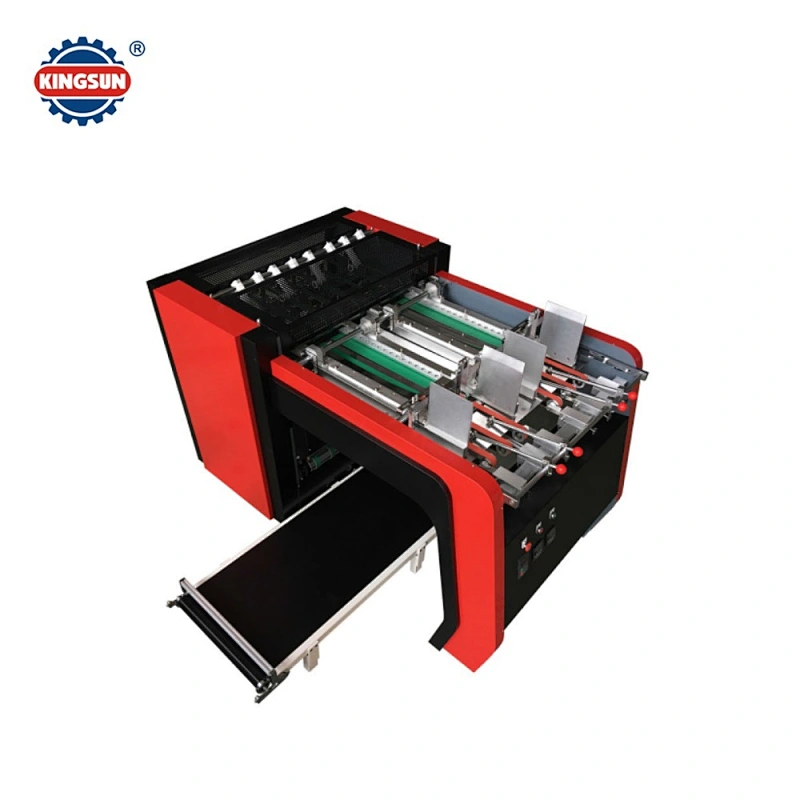

KLZ-930 Model Grey Board V Groove Cutting Machine

Model NO.
KLZ-930
Quantity:

KLZ-930 Model Grey Board V Groove Cutting Machine

KLZ-930automatic V groove cutting machine newly improved, high efficient and low consumption, with total 12 cutting knives.It works for both thin and normal cardboard, with thickness 200gsm- 3.5mm.

Main technical specifications:

Width of working piece

Width 50-850mm

Length of working piece

Length110-550mm

Best Accuracy

±0.05mm

Normal Error

±0.1mm

Fastest Speed

30-32m/min,

110-120pcs/min(work piece size 200x200mm)

Normal Speed

20-25m/min,70-90pcs/min

Groove Angle

80-140° adjustable

Thickness of working piece

200gsm-3.0mm

Total Number of Groove

12 pieces

Power

3.0kw

Dimension

2100x1400x1350mm

Machine Weight

1480kg
