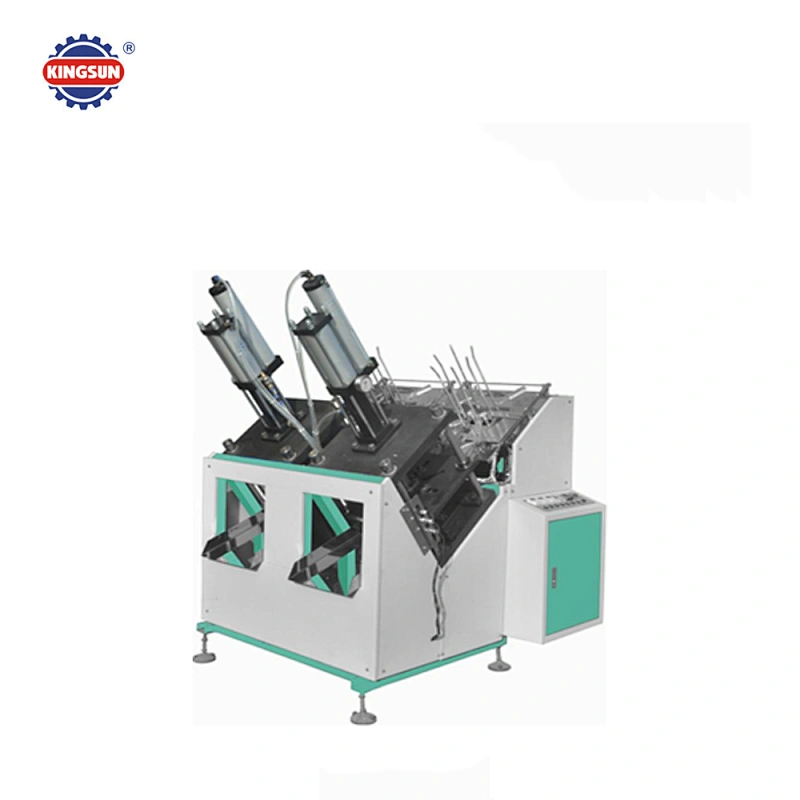

Pneumatic Paper Plate Making Machine
Pneumatic Paper Plate Making Machine

Pneumatic Paper Plate Making Machine

Model NO.
KML-400
Quantity:

KML-400 Pneumatic Paper Plate Making Machine

1. KML-400 full-automatic medium-speed paper plate making machine is developed and designed according to market demand. KML-400 reassembles the principle of combining pneumatic and mechanical. Compared with the traditional automatic paper machine, the KML-400 has a higher output rate and is easy to operate and maintain.
2. KML-400 uses high-efficiency booster cylinders with a maximum pressure of 5T, which is faster and more environmentally friendly than hydraulic cylinders.
3. KML-400 is widely used in the production of raw paper or aluminum foil. By changing the mold, round or square plates, etc. can be produced in different specifications.

Main technical parameter

Model

KML-400

Paper plate size

4-11 inches

Capacity

50-70pcs/min

Power requirement

220V 50HZ

Total power

3kw

Weight

500kg

Specification

1300×1400×1600mm

Raw material

100-800g/m2(original paper,white paperboard, white cardboard, aluminum foil paper or others)

Air source

Working pressure0.8Mpa

Working air volume 1.5m3/min
