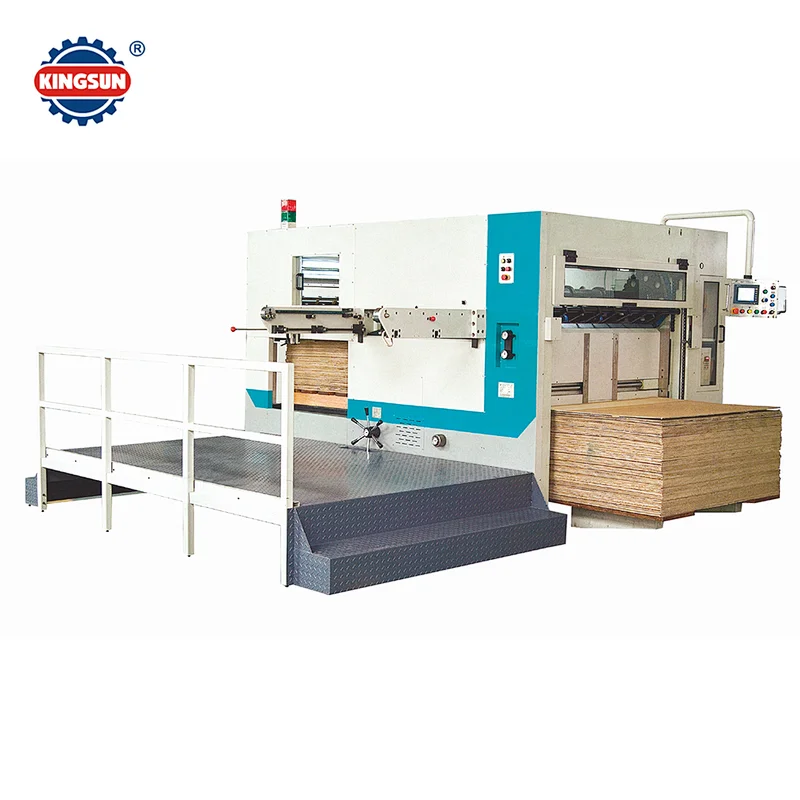

KYH-1450 Semi-automatic die cutting and Creasing machine
KYH-1450 Semi-automatic die cutting and Creasing machine

KYH-1450 Semi-automatic die cutting and Creasing machine

Model NO.
1450, 1500,1600
Country of Origin
Shanghai or China main port

KYH-1450/1500 model semi-automatic die cutting and creasing machine, also called as semi-automatic die cutter machine, is a special equipment applying to die-cutting of paper and corrugated boxes . The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.

Main specifications:

Max paper size: 1450 x 1060mm

Min paper size: 550 x 500mm

Paper type:

Cardboard: 200-2000gsm

Corrugated paper:8mm

Die cutting pressure: 250N/cm2

Die cutting precision: ±0.25mm

Die cutting speed: 4000sheets/h

Dimensions: 4200 x 2300x2200mm

Total weight: 16tons

Total power: 13.5KW

Max feeding pile height: 1400mm

Max delivery pile height:1200mm

Note: We also have other size automatic die cutting and creasing machine, or die cutter macihne, welcome to contact for more details.

Packaging & Shipping

All the machines are stickly inspected and well packed before shipment:
