Automatic Aluminum Foil Roll Rewinding Machine
Automatic Aluminum Foil Roll Rewinding Machine
Automatic Aluminum Foil Roll Rewinding Machine
Automatic Aluminum Foil Roll Rewinding Machine
Automatic Aluminum Foil Roll Rewinding Machine
Automatic Aluminum Foil Roll Rewinding Machine
Automatic Aluminum Foil Roll Rewinding Machine

Automatic Aluminum Foil Roll Rewinding Machine

Model NO.
KZ-500L-4
Quantity:

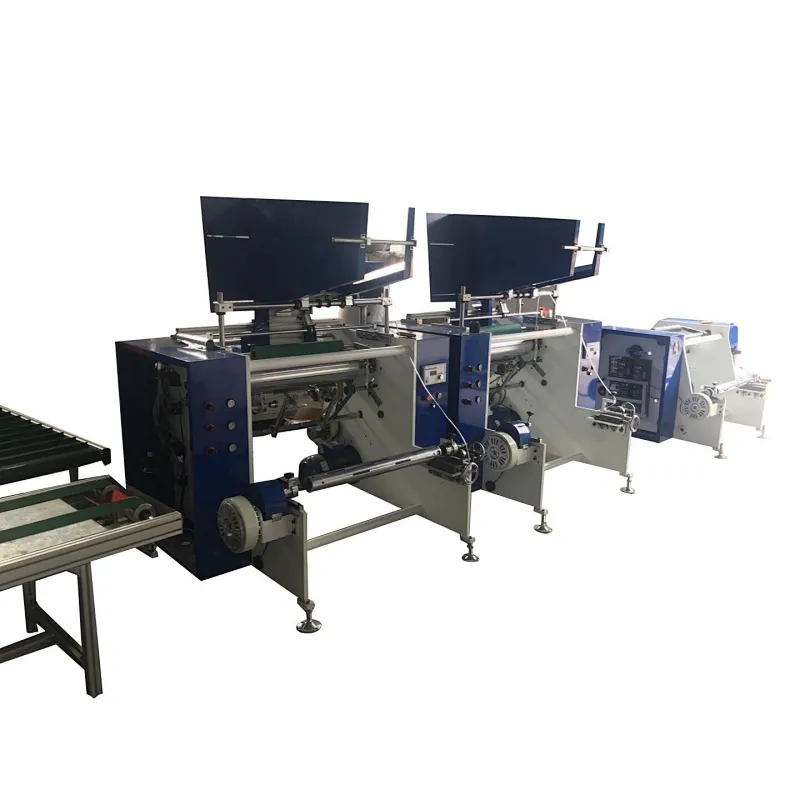

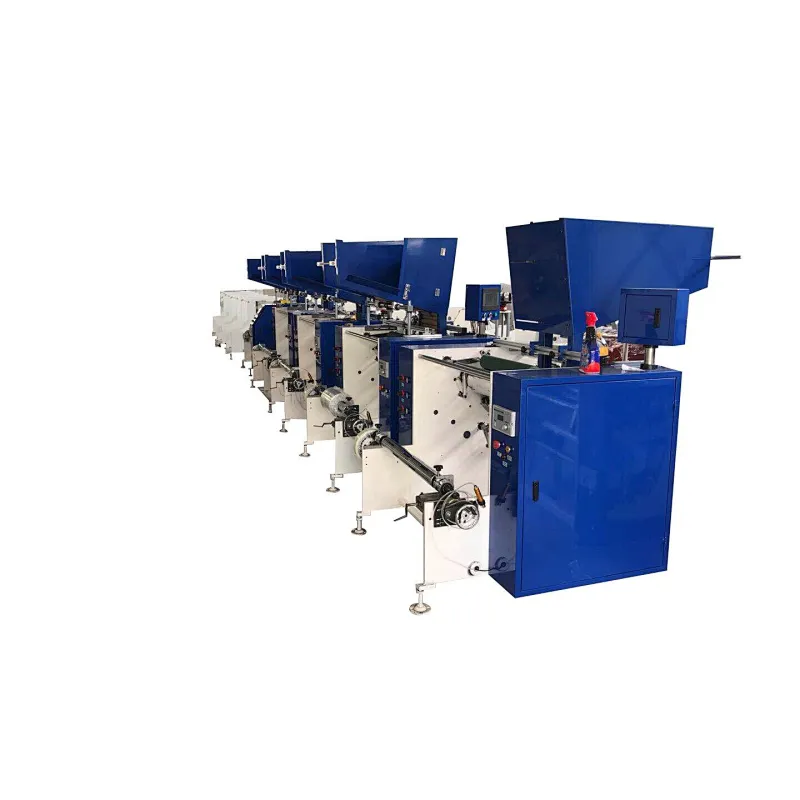

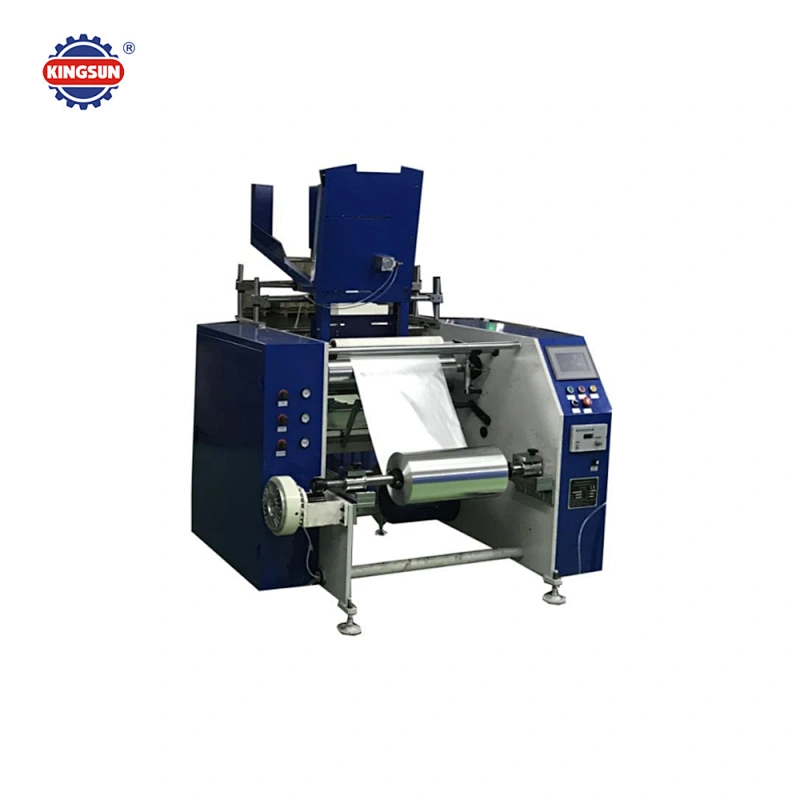

KZ-500L-4 Automatic Aluminum Foil Roll Rewinding Machine

The aluminum foil roll rewinding machine is used to convert the big size of aluminum foil into small rolls. Full automatic. Auto paper core loading, auto winding, auto 4-shaft exchanging system, and auto conveyor belt collecting.

Main technical parameter

Model

KZ-500L-4

Material

Aluminum foil

Width of material

300-500mm

Max diameter of jumbo roll

600mm

Rewinding length

1.8-50m/roll

Thickness of the foil

0.008-0.05mm

Speed

0-180m/min

ID core of jumbo roll

3”(76mm)

ID core of rewind roll

According to request

Power of main motor

2.2kw

Overall dimension

1520 x 2200 x 2200mm

Weight

1.2T
