offset label printing machine
offset label printing machine

KZX-320 Series Intermittent Rotary Self Adhesive Offset Printing Machine

Model NO.
Minimum order quantity
1 set
Supply Ability
30 set / Year
Country of Origin
Ningbo or Shanghai

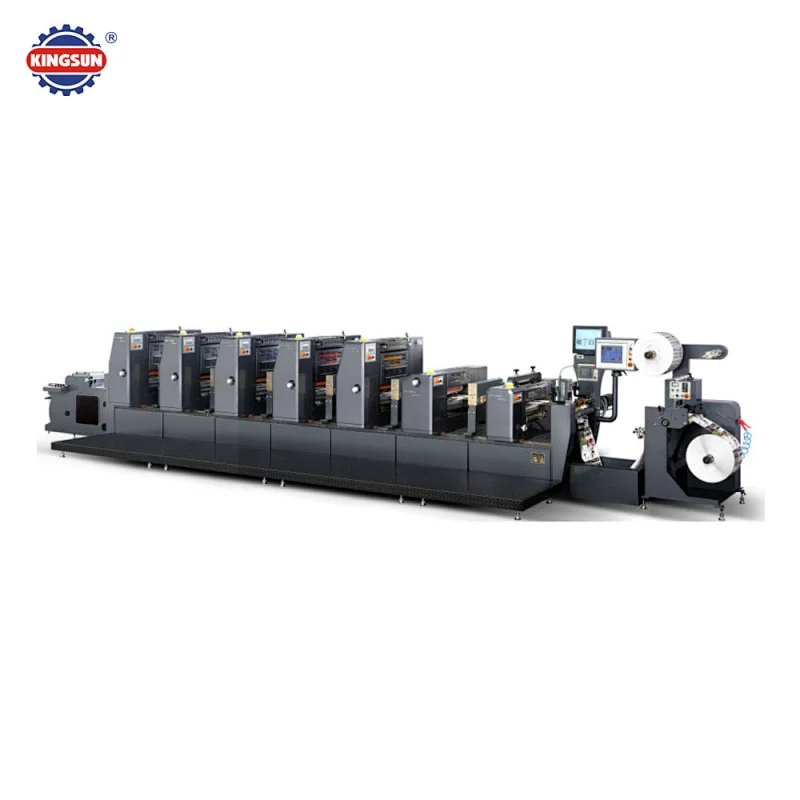

KZX-320 Series Intermittent Rotary Self Adhesive Offset Printing Machine
The intermitent type offset label printing machine, is the newest model label printing machine, which is very good for small or medium quantity label printing, with much better printing quality then flexo press or other type, low cost for make sample label and faster to make it, use PS plate and easy for adjustment, all electric components use Europe famous brand, reliable working and very easy for maintenance, this is first choise for higer grade label printing production.

Features of machine:

1.KZX-320 inermitent label offset printing machine adopts exact servo control system which can ensure the stabilization when the printing material in the printing process. It can Free from the printing roller change. The operation of this machine is fast, convenient and simple.

2.Pinting unit: adopting high quality and heavy offset printing unit. Assembled with 19 pieces of ink rollers (including 4pcs of Form Rollers) and 4pieces of Water rollers, has nice ink working system to avoid Streak trouble and Ghost image efficiently, largely increase the printing quality. The definition and precision made would never be reached by flexo press.

3.Shaftless transmission system: every printing unit transmitted by an independent servo motor, 14 sets of servo motors in total for whole machine (6color) to ensure the exact color registering precision during high speed operation.

4.Positioning system: The only work is to input the printing length on the main control panel, every printing unit will be motioned to the presetting position automatically. Largely saves time and materials when adjust the color register.

5.Color registering system: the vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste). By video still system, the machine can regulate vertical & horizontal Registering without stopping, it improves the printing quality and increases the producing capacity.

6.Super Large printing area: 300X350, the maximum perimeter could be reached at 350mm. By high-precision photocells, the machine ensures multi-register print on both side, make the possibility of label pattern variety.

7.Every printing unit equips with clutch device to be stopped independently by lifting away when needed. This system extends the machine long life.

8.Multi-options: UV varnishing unit, rotary die-cutting unit are available for option, even Spot UV unit.Magnetic die-cutting cylinders adopted, on which different patterns only need to replace different flexible die plate, in-line printing and die cutting, easy operation, low cost, high performance.

9. Touch LCD screen, faster CPU, 12 inch supper large display area, powerful human-computer dialogue system, multi-guide inspection display interface, instant alarm signal, makes operation easier, more efficient and save time.

10.PS plate Intermittent printing adopted, hits the high-level demands whatever high, mid or low capacity printing works, and it is an ideal choice for printing houses to produce the high-grade self adhesive labels.

Main Specifications:

Printing speed: 50-180 impressions/Min

Printing color: 2-9 colors

Max printing repeat length: 350mm

Max web width: 320mm

Max printing width: 300mm

Max unwinding diameter: 800mm

Max rewinding diameter:600mm

Power: supply: 3 phase 380V

Total power: 33.6KW(without UV power)

Main machine size: 9800 x1600 x 1850mm ( L X W X H, for 6 colors)

Machine weight: about 9500kg

There is various option: more printing colors, UV system, bigger unwinding, die cutting, flexo printing,cold stamping for choose.
