High Speed Paper Cup Forming Machine
High Speed Paper Cup Forming Machine

High Speed Paper Cup Forming Machine

Model NO.
JBZ-12H
Quantity:

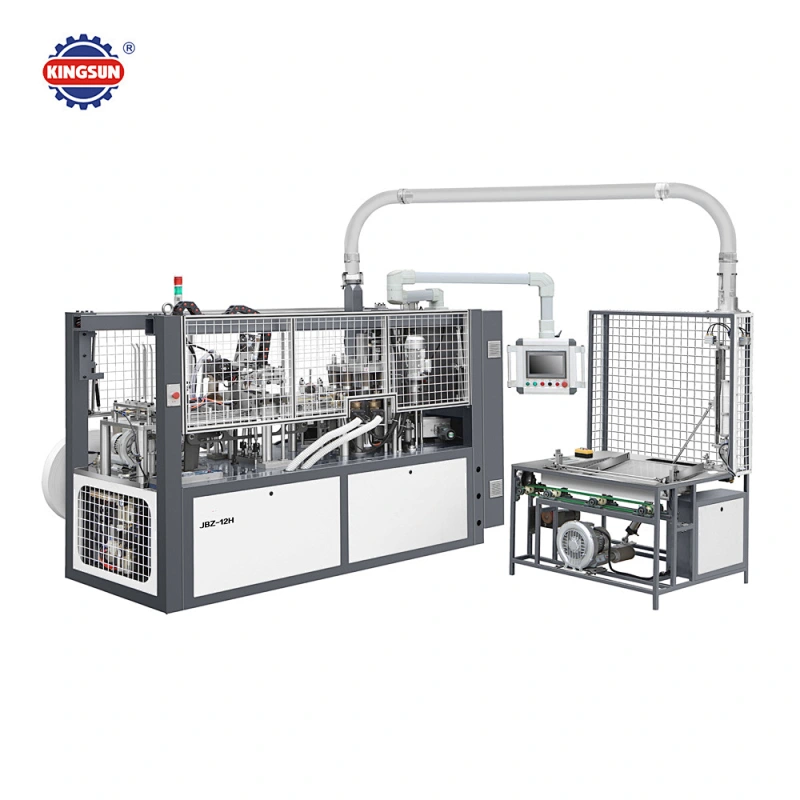

JBZ-12H High Speed Paper Cup Forming Machine

JBZ-12H high speed paper cup forming machine is a multi-functional high speed automaton, which can automatically produce single-side and double-side PE coated paper cups through automatic paper feeding, sealing, silicone lubrication, bottom punching and heating. This kind of cup can be used for drinks, ice cream, etc. This machine adopts multi-station rotating die head, imported hot air equipment, imported PLC system and other new technologies, including knurling, curling and cup discharge. With accurate and reliable characteristics, it is the first choice of paper cup manufacturing.

Main technical parameter

Model

JZB-12H

Cup size

6~16oz

Applicable raw paper190~350g/(single/double-sided PE coated paper)

Capacity

90-120pcs/min

Heating power

8.6/13.2kw

Main motor power

2.2kw
Air pressure request

0.6m³/min;0.6MPa(provided by customer)

Machine weight

3.5T

Machine size

2700mm×1500mm×1800mm
Paper cup collector size

1150mmx850mmx2000mm

Actual power consumption

7.5kw
