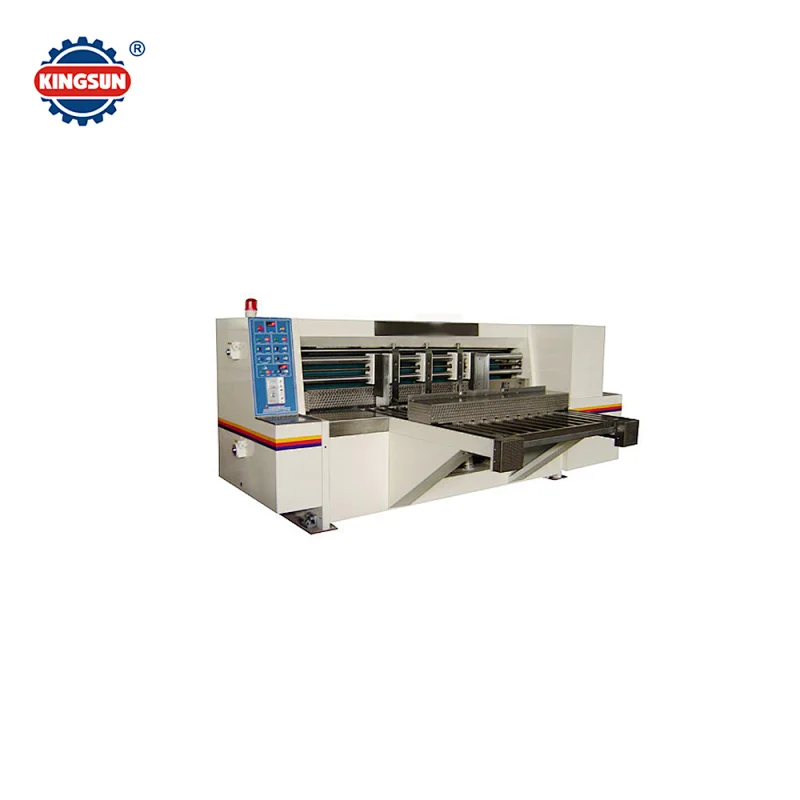

KMZ-4000 Series Corrugated Box Rotary Die Cutter Machine

KMZ-4000 Series Corrugated Box Rotary Die Cutter Machine

1. Using vacuum suck back-stopper and feeding automatic make the crooked carton
level off.
2. All the transmission gears are made of high quality hardened and ground steel

which has grinded under high temperature, Rockwell Hardness>40o.
3. Spraying circulation is adopted to lubricate the gears, reducing noise and
prolonging the service life.
4. The rubber roller and stencil roller both are made of high quality ground and

chromed steel.
5. All drums are dynamic balanced, enhancing the transmission stability.
6. The stencil and rubber roller can auto take off by cylinder and partialities
to ease the burden of the machine and extend the service life.
7. Air-operated automatic elevator device work in feeding system.(The roller descend

when feeding and it rise when feeding stop. )
8. Move axis of mechanic transmission rubber roller 60mm, circumferential direction

differential device, cut at different position every time. (no circulate limitlessly)
9. Unique speed difference compensate device, whatever the diameter of cushion change,

the device can make the rubber roller along with template roller glide, accordingly

let the surface of cushion and knife template at same speed and insure every batch

carton in one size.
10. Equipped with high quality import amending rubber cushion, amending 3-4 times

(1-1.5mm/time), prolong the service life. Phase adjustment, epicyclical gear frame,
electric
digital 360 degree adjust.(open, stop, positive and negative all can be operated)
