Wenzhou Kingsun Machinery Industrial Co.,ltd325000About UsNo.1002 Heyuan Mansion, Xincheng, Wenzhou City, Zhejiang Province, ChinaThank you very much for visiting Kingsun website, we are one of China leading professional supplier & manufacturer of printing and packaging machines. We provide a wide range of high quality equipment, including post-press equipment such as flatbed automatic die cutter, hot foil stamping machine, folder gluer, paper guillotine, thermal laminator, flute laminator, slitter rewinder, paper sheeter, hard cover making machine, and label making machine such as flexo printing press, label die cutting machine, and flexible packaging equipment such as rotogravure printing machine, dry laminator, plastic bag making equ

screen printing machine
screen printing machine

WQ-320 narrow width label screen printing press

Model NO.
WQ-320
Delivery
FOB
Minimum order quantity
1 set
Supply Ability
20 set / Month
Country of Origin
Shanghai or Ningbo
Quantity:

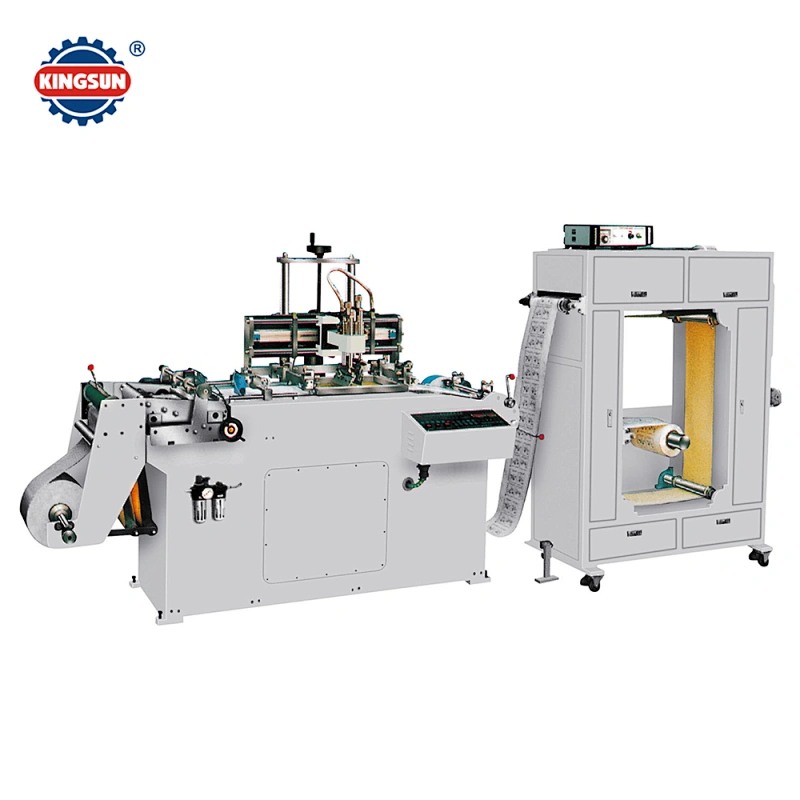

WQ-320 narrow width label screen printing press

This machine is used for printing on reel material such as PVC,OPP,Nylon,hologram label,adhensive label sticker,etc. the material feeding of this machine is controlled by servomotor,the main drive part adopted the pneumatic device,and the printing position is followed and controlled by photocell. the machine has the characteristic of high accurate of color register,steady material-feeding,automatic counter and alarm,convenient adjust and compact structure,etc.


Main specifications:

Model

WQ-320

Printing speed

10-50m/min

Max. web width

320mm

Max. printing width

300mm

Max. printing length

320mm

Max. unwinding diameter

450mm

Printing repeat length

175-355mm

Precision of color register

±0.15mm

Main motor power

1.2kw

Oven power

4.1kw

Air pressure needed

4.5-6kg/cm2

Main machine dimension

2.4x0.95x1.5m

Overall dimensions

1.75x0.6x1.8m

Weight

About 1100kg
