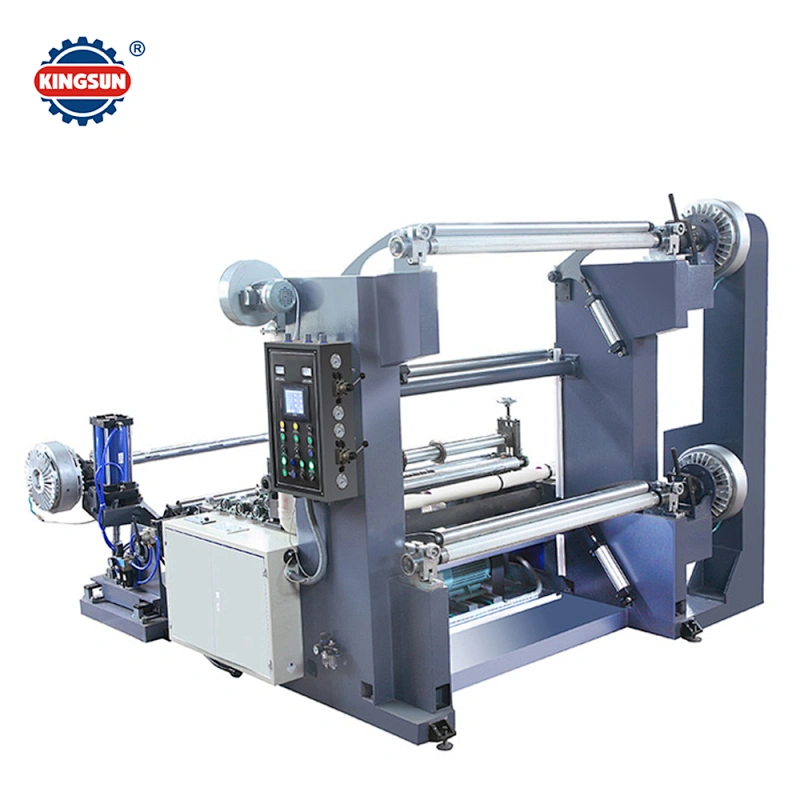

Computer Control Jumbo Roll Paper Slitting Machine
Computer Control Jumbo Roll Paper Slitting Machine

Computer Control Jumbo Roll Paper Slitting Machine

Model NO.
QFJ-1300CH
Quantity:

​​​​​​QFJ-1300CH Computer Control Jumbo Roll Paper Slitting Machine

This series paper slitting machine or paper slitting and rewinding machine is good for slitting and rewinding materials from 50 gram to 800 gram in thickness, such as various paper,cardboard, polypropylene and polyethylene for printing and packaging, composite material, aluminum foil, and so on. It adopts double frequency inverter control system. It has installed with EPC, automatic tension controller, auto-counter, automatic unwinding loader, high precise and high working speed etc.

Main technical parameter

Model

QFJ-1300CH

Maximum unwinding width

1300mm

Maximum unwinding diameter

1500mm

Maximum rewinding diameter

1000mm

Maximum machine speed

250m/min

Maximum working speed

220m/min

Main machine power

4.5kw

Torque motor

6kw

Machine dimension

2800x2200x1900mm

Machine weight

4500kg
