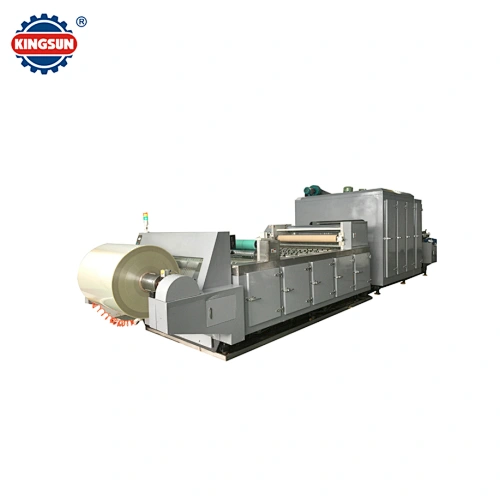

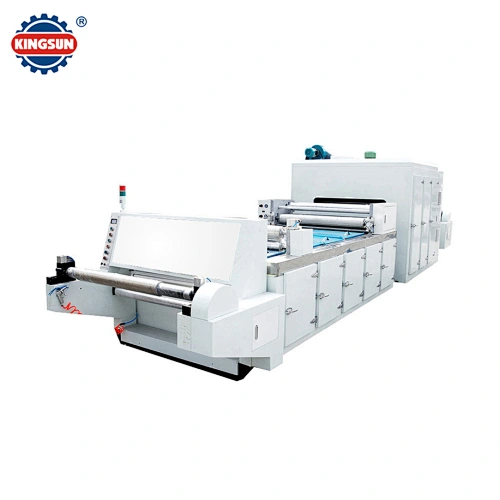

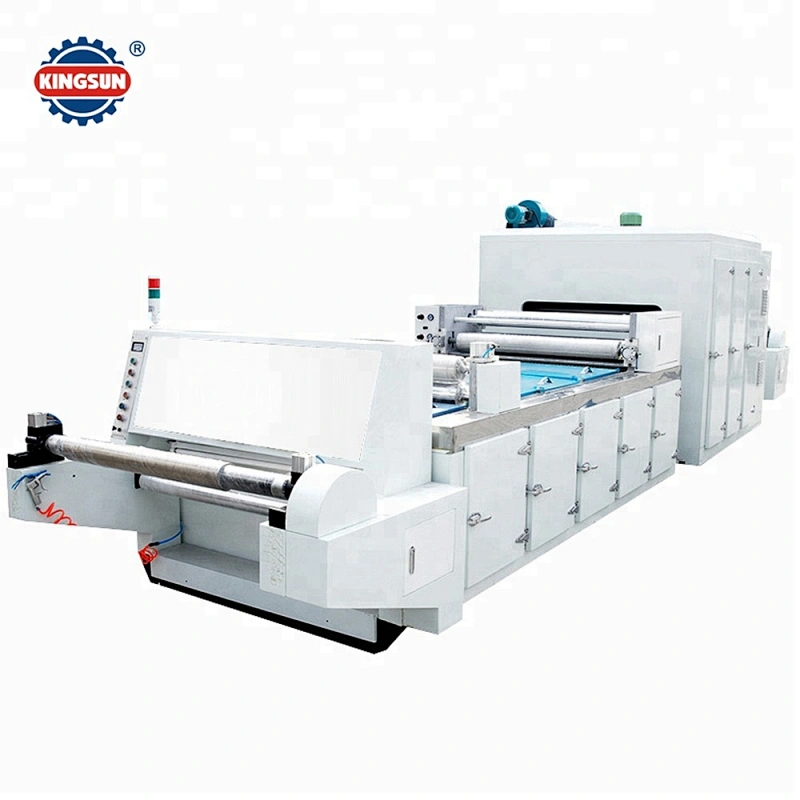

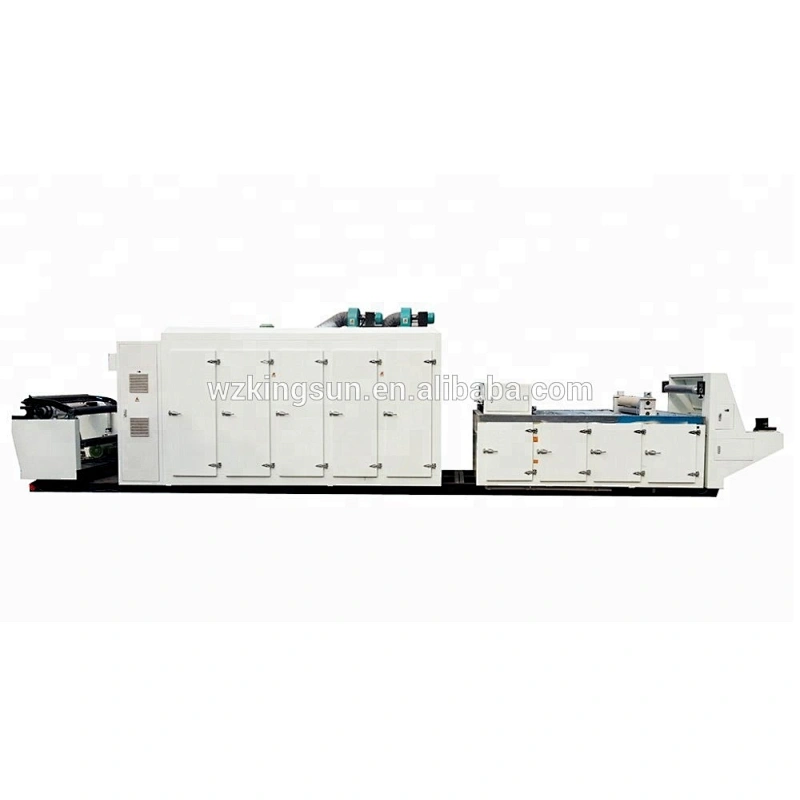

Demetallization Machine for Holographic Film Window Making

Demetallization Machine for Holographic Film Window Making

Demetallization Machine for Holographic Film Window Making
Demetallization Machine for Holographic Film Window MakingDemetallization Machine for Holographic Film Window MakingDemetallization Machine for Holographic Film Window MakingDemetallization Machine for Holographic Film Window Making
Categoriesdemetalizing Machine
AlbumView larger image
BrandKingsun paper packing machine
ModelKLJ-800,1100,1400,1700
FOB portNingbo
Terms of PaymentL/C, D/P, T/T
Download DOC
Update Time2018-08-19
Detail Information
1. Description of demetallizing machine:

This series demetallizing machine is the special equipment for spotwashing or demetallizing the metallized BOPP film, PET film, PVC film, hologramembossed film, so as to have window see-through effect on the final flexiblepackaging products.

It has two ways for demetallizing: water washing and chemical etching.

2. Basic Material:

Metalized film, hologram embossed film,transfer film or printing film.

  • BOPP thickness 20~100μm
  • PET thickness 12~100μm
  • PVC thickness 30~200μm

3. Technical Specifications:

Model

Working width (mm)

Working speed

(M/min)

Winding diameter (mm)

Total power (kw)

Machine dimension (cm)

Weight

(t)

KLJ-800

700

60~100

700

20

720×160×185

2.8

KLJ-1100

1000

60~100

700

20

720×180×185

3

KLJ-1400

1300

60~100

700

24

720×210×185

3.5

KLJ-1700

1600

60~100

700

28

720×240×185

4

4. Machine Structure:

  • Unwinding and rewinding station
  • Chemical and water tank
  • Drying tunnel
  • Squeezing roller cylinder system
  • IR inspection sensor
