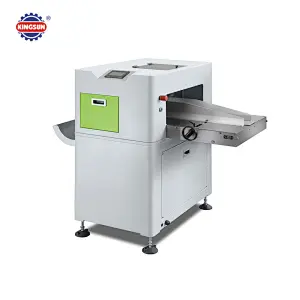

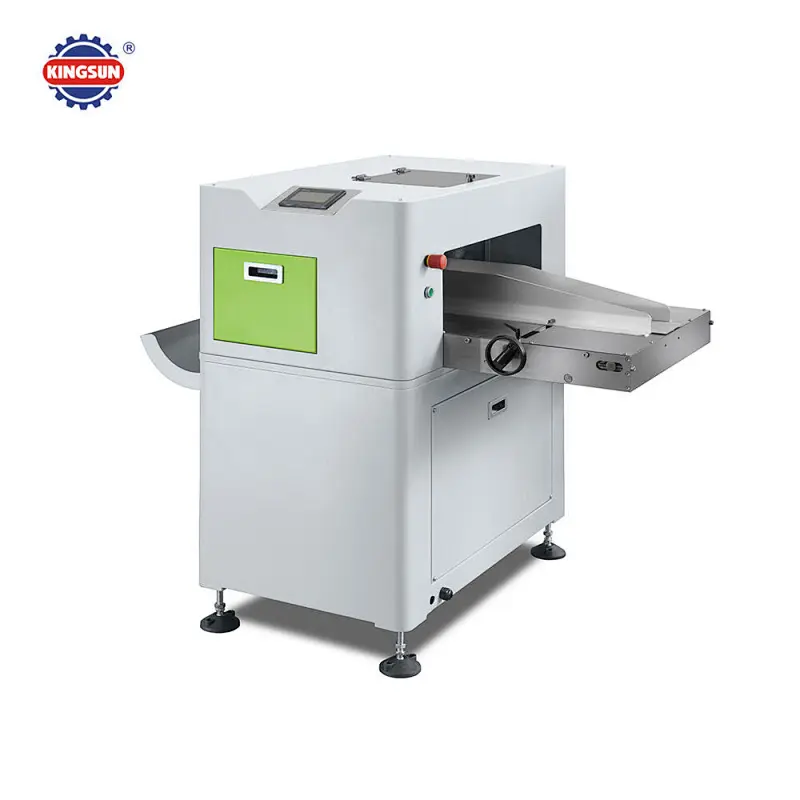

S20 Digital Spine Cutting Machine
S20 Digital Spine Cutting Machine

S20 Digital Spine Cutting Machine

Model NO.
S20
Quantity:

S20 Digital Spine Cutting Machine

Introduction

Cardboard automatic bottom-drawing type servo conveying, computer setting cutting size, no foundation and experience are needed, simple operation. Mainly used for cutting the spine of book cases of various sizes, with a wide range of sizes, filling the gap in the current market.

Feature

1. PLC, servo control
2. Touch screen friendly operation interface
3. CE standard safety cover

    Technical parameter

    Cardboard conveying width

    Min: 120mm

    Max: 400mm

    Cutting size

    Min: 8mm

    Max: 85mm

    Production speed

    20m/min or 110sheets/min

    Voltage

    1.5kw, 220V, 50HZ, 1 phase

    Air supply

    0.6Mpa

    Machine dimension(L*W*H)

    1375x1000x1150mm

    Note: Machine speed depends on size, material, etc.

    Send Message

    *
    * clear input

    Related Products

    hard cover making machine
    AHC-450A Model Automatic Hard Cover Making Machine
    Model NO. AHC-450A
    automatic case maker
    AHC-450A Series Automatic Hard Book Cover Case Maker
    Model NO. AHC-540A/450A
    case maker
    MHC-500A Semi-automatic Case Making Machine
    Model NO. MHC-500A
    book case maker
    AHC-540A Automatic Hard Cover Maker Machine
    Model NO. AHC-540A
    cutting machine
    KL-1300 Automatic Cardboard Cutting Machine
    Model NO. KL-1300
    C18 Corner Cutter
    C18 Corner Cutter
    Model NO. C18
    RC19 Round Corner Machine
    RC19 Round Corner Machine
    Model NO. RC19

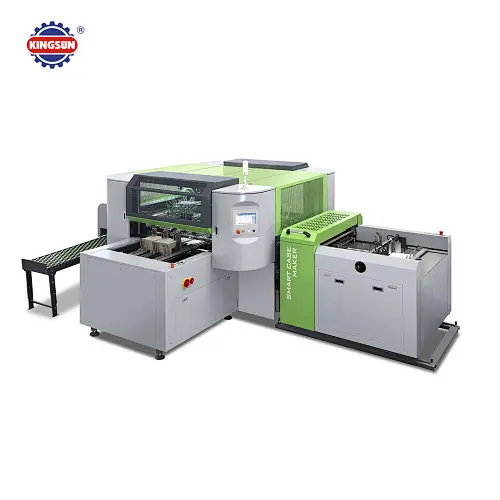

    R18 Smart Case Maker
