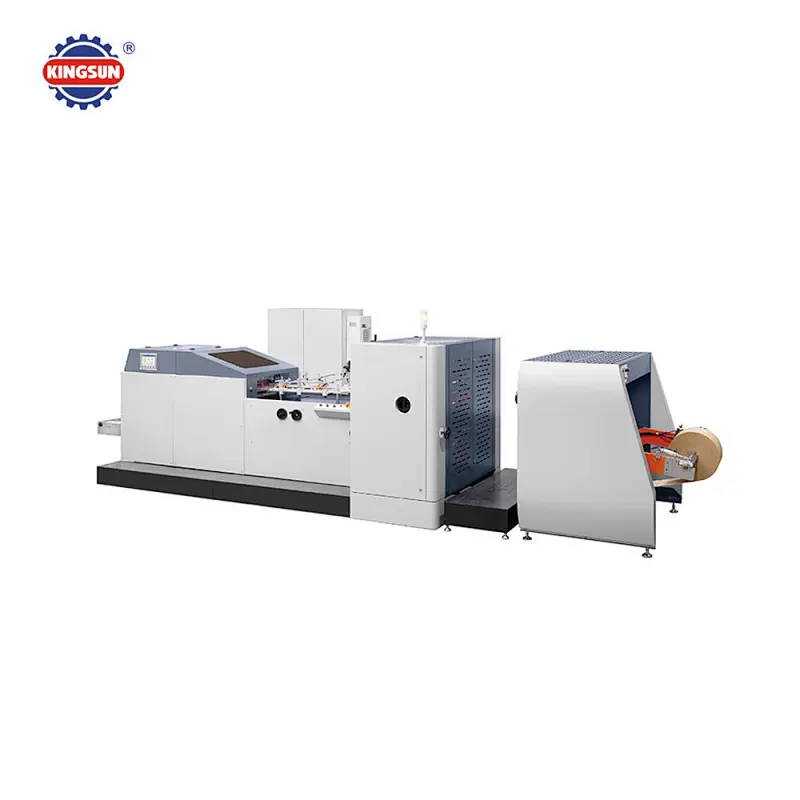

JD-350 Automatic Sharp-bottom Paper Bag Making Machine
Introduction
Use environmentally friendly paper rolls such as kraft paper, glossy paper, food coated paper, medical paper and other paper rolls, after piercing, edge gluing, color standard length fixing(or fixed length), raw materials forming, fixed length stretched, and folded the bottom and bottom gluing, forming and other processes, the finished paper bag finishing is fully automatic at one time.
This machine adopts motion control, servo motor programming, convenient operation, efficient production and stable operation. It is a special paper bag machine for producing various environmentally friendly paper bags such as sharp bottom paper bags, bread bags with windows, snack food bags, dried fruit bags, etc.
Technical parameter
Paper bag length | 155-715mm |
Paper bag width | 70-320mm |
Insert size | 20-120mm |
Step height | 15/20mm |
Production speed | 50-720pcs/min (different paper bag length, production speed is different) |
Paper roll width | 200-920mm |
Paper thickness | 35-80g/m2 |
Maximum diameter of paper roll | 1000mm |
Paper roll inner diameter | 76mm |
Film width | 50-200mm |
Film thickness | 0.012-0.037mm |
Maximum film diameter | 500mm |
Machine power | 19.5kw/3phase |
Working air source | 120L/min 0.5-0.8Mpa |
Machine weight | 6500kg |
Machine size (L*W*H) | 7300×3000×2200mm |
