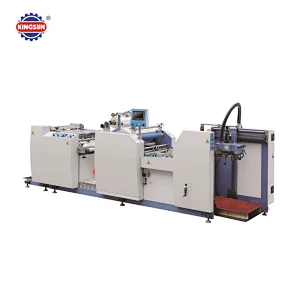

SW-760 Automatic Laminating Machine
Advantage
1. The paper feeding table can be directly lowered to the ground to realize the hydraulic truck pushing the paper stack;
2. Equipped with a suction paper feeding table, which can feed paper stably;
3. The large-diameter heating steel roller is equipped with electromagnetic heating, which makes the laminating effect excellent;
4. Split structure design makes machine operation and maintenance easier;
5. The double-layer guide rail paper flapping plate designed for the automatic collection unit makes it compact and easy to operate.
Detail
Suction feeding unit

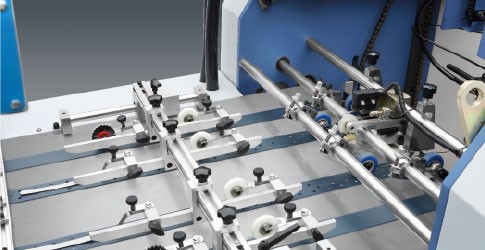

Front lay device

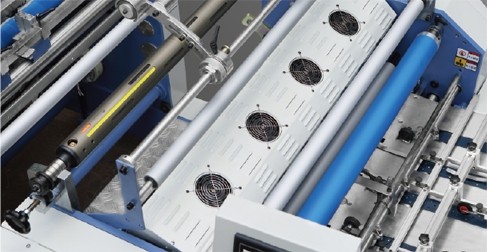

Electromagnetic heating technology
Anti-curvature device

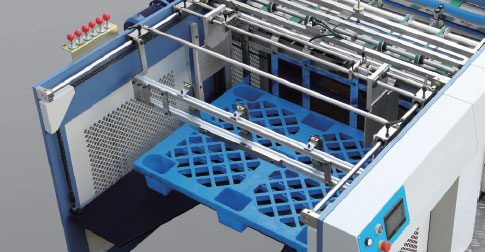

Automatic paper collection unit
Advantage
1. The paper feeding table can be directly lowered to the ground to realize the hydraulic truck pushing the paper stack;
2. Equipped with a suction paper feeding table, which can feed paper stably;
3. The large-diameter heating steel roller is equipped with electromagnetic heating, which makes the laminating effect excellent;
4. Split structure design makes machine operation and maintenance easier;
5. The double-layer guide rail paper flapping plate designed for the automatic collection unit makes it compact and easy to operate.
Model | SW-760 |
Max paper size | 760×820mm |
Min paper size | 210×300mm |
Paper thickness | 90-600gsm |
Laminating speed | 0-60m/min |
Gross power | 20/12kw |
Total weight | 3000kg |
Overall dimensions | 4600×1550×1700 mm |
Detail
Suction feeding unit
Front lay device
Electromagnetic heating technology
Anti-curvature device
Automatic paper collection unit
