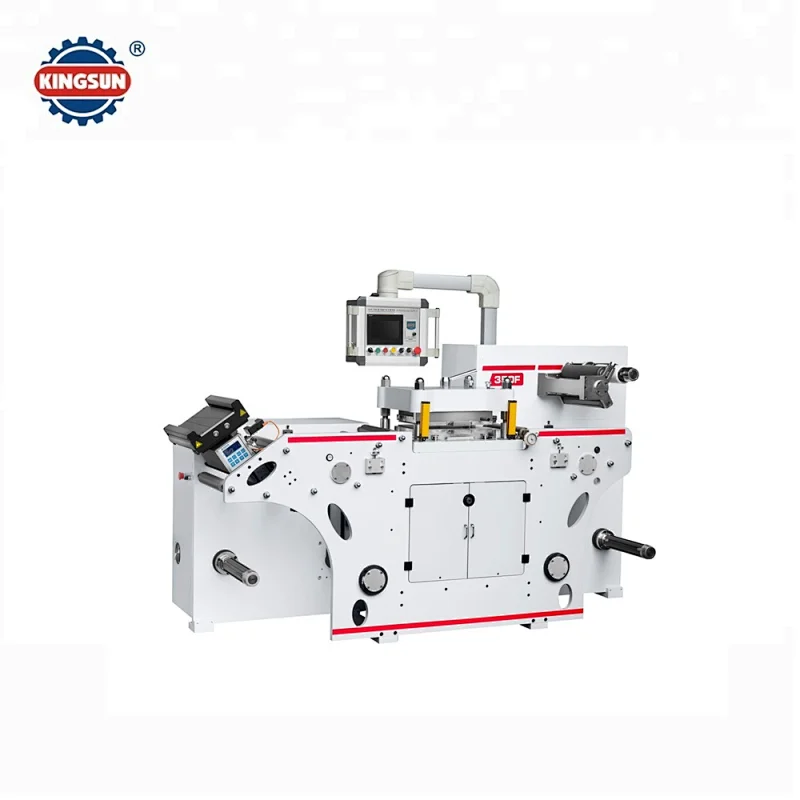

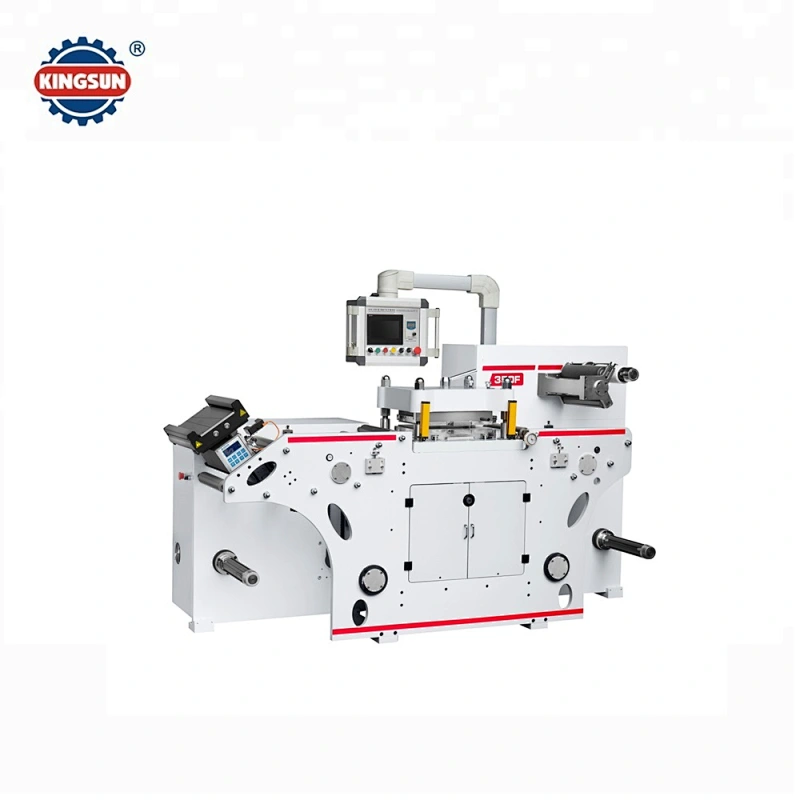

WQM-350F High Speed Flat Bed Die Cutting Machine
Characteristic
This machine adopts the lastest of the Mitsubishi Control System from Japan, Schneider low-voltage electrical apparatus from France. This machine runs the paper material with uniform speed, and adopts auto tension which is very stability. With the high degree of automation, the speed can up to 140m/min , the pressure is stable when the speed is low or fast,can install slitting device , hot stamping or cold foiling ,sheeting and other matching functions
This machine adopts the lastest of the Mitsubishi Control System from Japan, Schneider low-voltage electrical apparatus from France. This machine runs the paper material with uniform speed, and adopts auto tension which is very stability. With the high degree of automation, the speed can up to 140m/min , the pressure is stable when the speed is low or fast,can install slitting device , hot stamping or cold foiling ,sheeting and other matching functions
| Operating system | Mistubish system |
| Max.die cutting speed | 130m/min（450T/min） |
| Max.web | 350mm |
| Max.diameter of unwinder | 700mm |
| Max.diameter of rewinder | 700mm |
| The pricision | ±0.10mm |
| Max.die cutting wide | 320mm |
| Max.die cutting length | 350mm |
| Power | 12kw |
| Voltage | 380v |
| Weight | 2000kg |
| Measure | （L×W×H）：3500×1500*1500 |
| Machine occupation | （L×W）：（3500+1000+1000）×（1500+1500+1000） |
| Name | Model | Quantity | Unit | Brand |
| Controller system | 1 | set | Mistubishi | |
| Motion controller | 5 | pc | Mistubishi | |
| PLC | 1 | pc | Mistubishi | |
| Motor servo | 5 | pc | Mistubishi | |
| Magnetic cluth | 2 | pc | Zhejiang | |

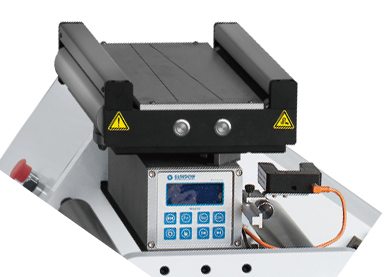

| Auto webguiding | 1 | set | Wuhan | |
| Reducer | 1 | set | Simpo | |
| Touch screen | 1 | set | Mistubishi |
