Manual Corrugated Cardboard Creasing And Die Cutting Machine
Manual Corrugated Cardboard Creasing And Die Cutting Machine

Manual Corrugated Cardboard Creasing And Die Cutting Machine

Model NO.

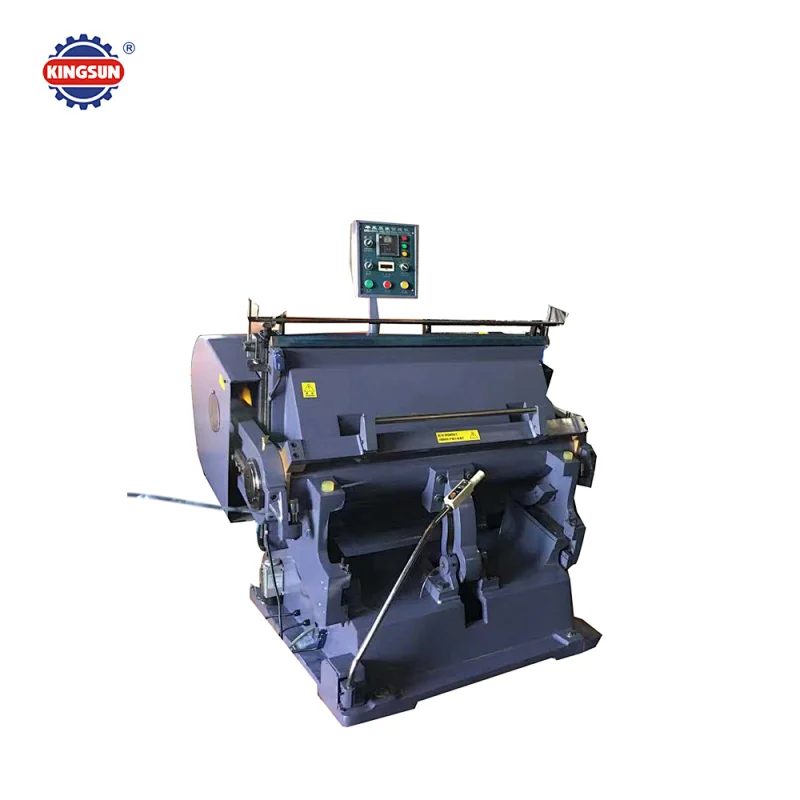

PYQ-203CE Manual Corrugated Cardboard Creasing And Die Cutting Machine

This manual die cutting and creasing machine is more scientific and reasonable in structure than models of the same specification, running smoothly, with low noise and large pressing and cutting force. It has obvious effects especially for products with excessive pressing and cutting force such as thick cardboard and plastic sheets.

1. Sliding bearings are made of high quality alloy copper, thus to enhance the effect of anti-friction and vibration reducing.

2. Flywheel with big moment of force and large pressure.

3. High strength due to whole iron casting by using high quality material for machine body.

4. Single plate electromagnetic clutch is sensitive and reliable.

5. With functions of single piece, continuous and opening delay operating, dwell range is adjustable.

6. Operating position is reasonably designed, moving-bed can be opened to its optimum.

7. Safety protection system is reliable.

8. Can equip inner and outer movable frame and centralized lubrication device.

Main technical parameter

Inner chase size930x670mm
Speed23±3 strokes/Min
Max rule length <30m
Motor power4kw-6H
Machine weight3500kg
Overall dimension1750x1980x1700mm
