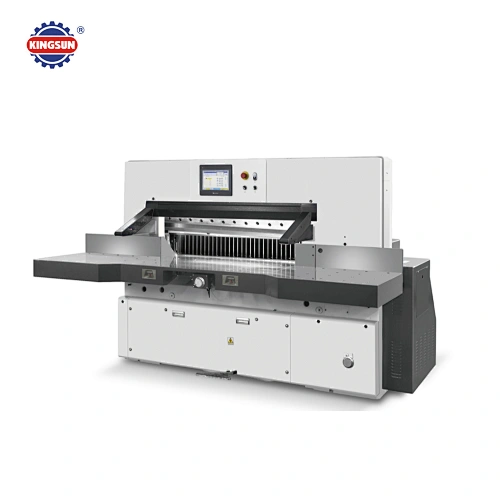

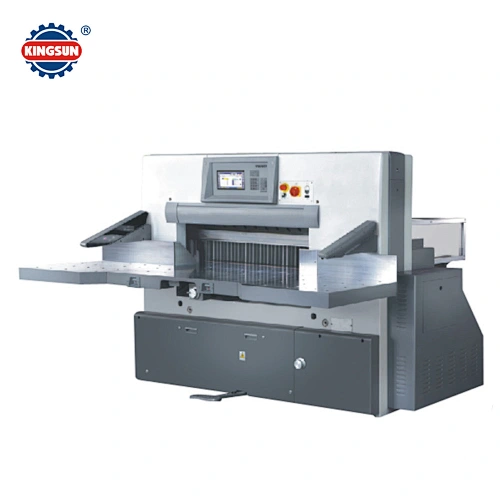

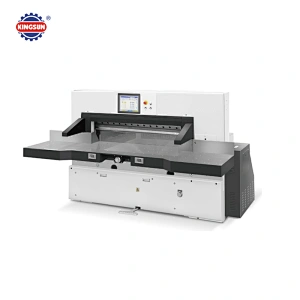

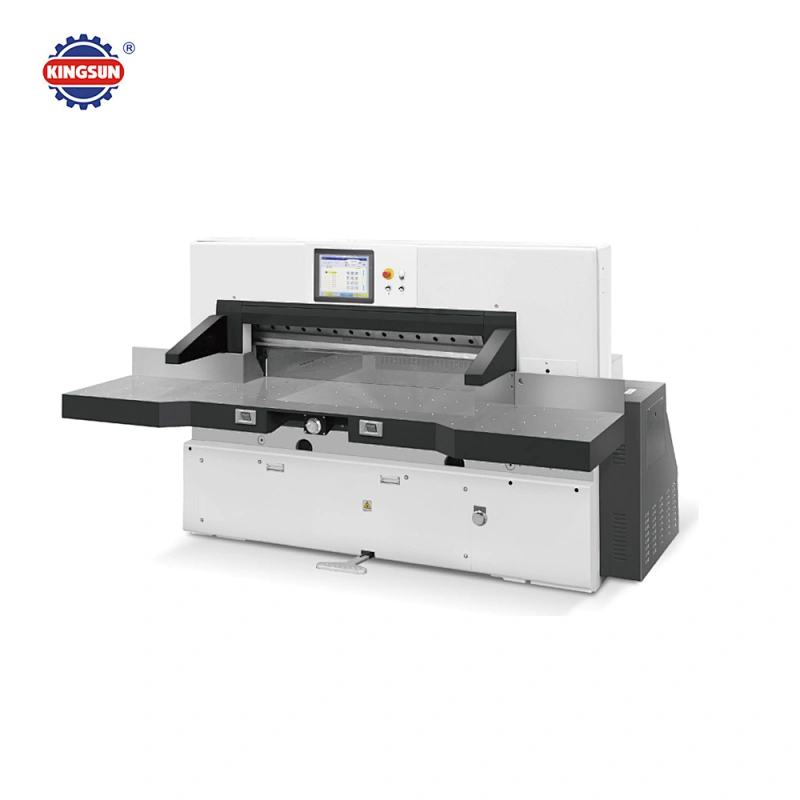

QZYK-115CF High Quality Guillotine Computer Program Control Paper Cutter Machine
QZYK-115CF High Quality Guillotine Computer Program Control Paper Cutter Machine

QZYK-115CF High Quality Guillotine Computer Program Control Paper Cutter Machine

Model NO.
QZYK-115CF
Quantity:

QZYK-115CF High Quality Guillotine Computer Program Control Paper Cutter Machine

Product Description:

Japan alternative digital servo control technology; 15-inch colorful touching LCD. The data resolution rate is 0.01mm. It has self-diagnostic function of troubles and displays the operating pattern, and has 100 program units, over 10000 different cutting positions, dynamic display of cutting and running, dynamic tracking, max feeding speed 8-25m/min.Powerful computer operating system with more functions and it can store and memorize things. The storage time can be up to 300,000 hours with self-maintenance of the operating system. Hydraulic components are adopted from Italy, electrical components from France, Germany, Japan, Korea, Taiwan ball lead screw,Linear double guide rails, PLC control system are adopted to monitor all mechanical implementation, Its key parts adopt imported bearing of low maintenance.
Computer controlled paper cutter, available for various paper size.

Technical Parameter:

Model / SpecificationsQZYK-C115F
Cutting width(cm)115
Max. cutting height without assistance pressing plate(cm)16
Max. cutting depth(cm)115
Min. cutting depth without assistance pressing plate(cm)2.5
Extended length of working table(cm)73
Height of working table(cm)88-92
Machine width including side working table(cm)266
Total length of working table(cm)226
Cutting speed(r/min)45
Max. paper pressure(n)40000
Power of main motor(kw)4
Motor for paper feeding(kw)0.75
Air pump(kw)0.75
Machine weight(kg)4000
Overall dimension (Length x width x height)(cm)255x160x215
