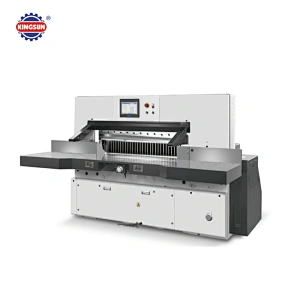

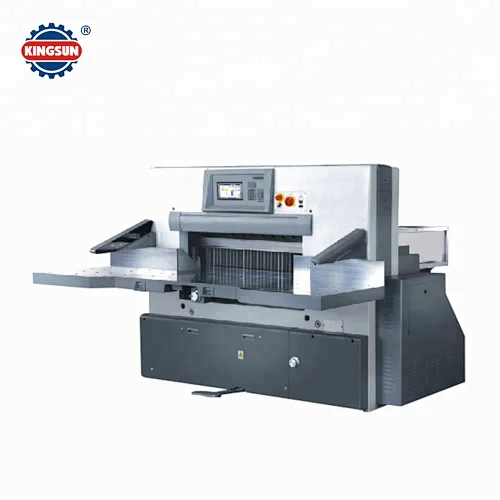

QZYK-C115K China Professional Program Control Guillotine Paper Cutter Cutting Machine
QZYK-C115K China Professional Program Control Guillotine Paper Cutter Cutting Machine

QZYK-C115K China Professional Program Control Guillotine Paper Cutter Cutting Machine

Model NO.
QZYK-C115K
Quantity:

​​​​​​QZYK-C115K China Professional Program Control Guillotine Paper Cutter Cutting Machine

Product Description:

It equipped AC digital servo controlling technology and 10 inches colorful touching screen, the data resolution rate is 0.01mm. Full touch operating system for human computer interface,has self-diagnostic function of troubles and displays the operating pattern,100 program units, over 10000 different cutting positions, it can memorize, store and dynamic follow-up. The max paper-pushing speed is 5-15m/min. It adopts Japanese hydraulic components, Japan and Korean electric components. Japan, Taiwan ball lead screw and linear double guide-rail, PLC control system for electric configuration, Its key parts adopt imported bearing of low maintenance.IR ray protective device is more convenient for cutting with optical knife-line alignment, button operated by two hands, single circulation cutting device etc.
This paper cutter machine good for various paper size suits for specific requirements.

Technical Parameter:

Model / SpecificationsQZYK-C115K
Cutting width(cm)115
Max. cutting height without assistance pressing plate(cm)16.5
Max. cutting depth(cm)115
Min. cutting depth without assistance pressing plate(cm)2.5
Extended length of working table(cm)73
Height of working table(cm)88-92
Machine width including side working table(cm)266
Total length of working table(cm)226
Cutting speed(r/min)45
Max. paper pressure(n)40000
Power of main motor(kw)4
Motor for paper feeding(kw)0.75
Air pump(kw)0.75
Machine weight(kg)4000
Overall dimension (Length x width x height)(cm)255x160x215
