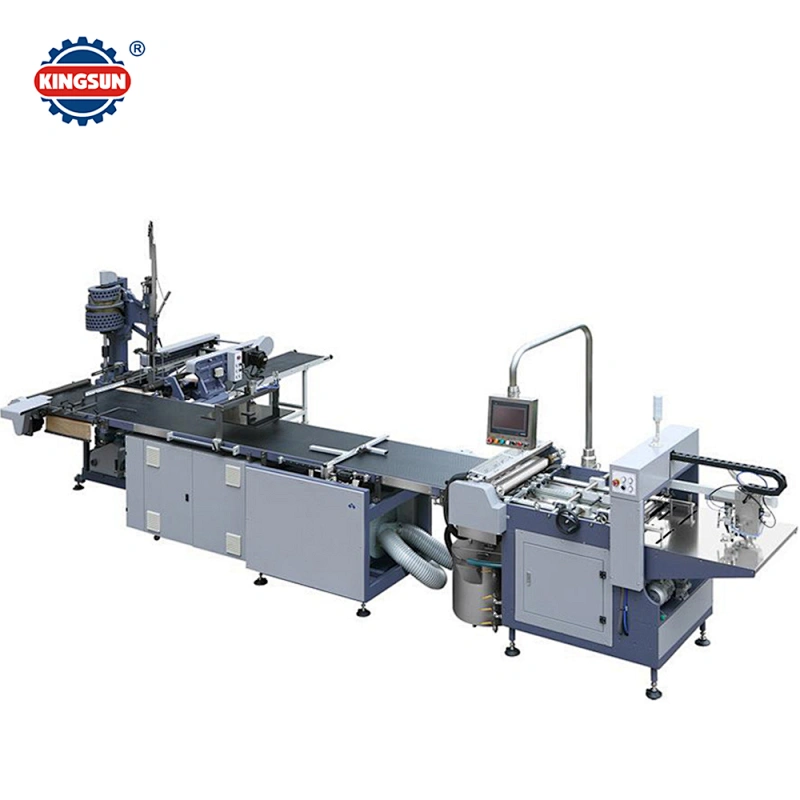

RB-420D Semi-automatic Rigid Box Forming Machine

RB-420D Semi Automatic Rigid Box Forming Machine

Features:

1. The feeder in this machine adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.

2. The width between stacker and feeding table is adjusted concentrically in the center. The operation is very easy without tolerance.

3. New designed copper scraper cooperates with the roller more compactly, effectively avoiding paper winding. And the copper scraper is more durable.

4. Adopt imported ultrasonic doublepaper tester, featuring in simple operation, which can keep two pieces paper from entering into the machine at the same time.

5.Automatic circulation, mixing and gluing system for hot-melting glue. (Optional device: glue viscosity meter)

6.The vacuum suctionfan under the conveyer belt can keep the paper from deviating.

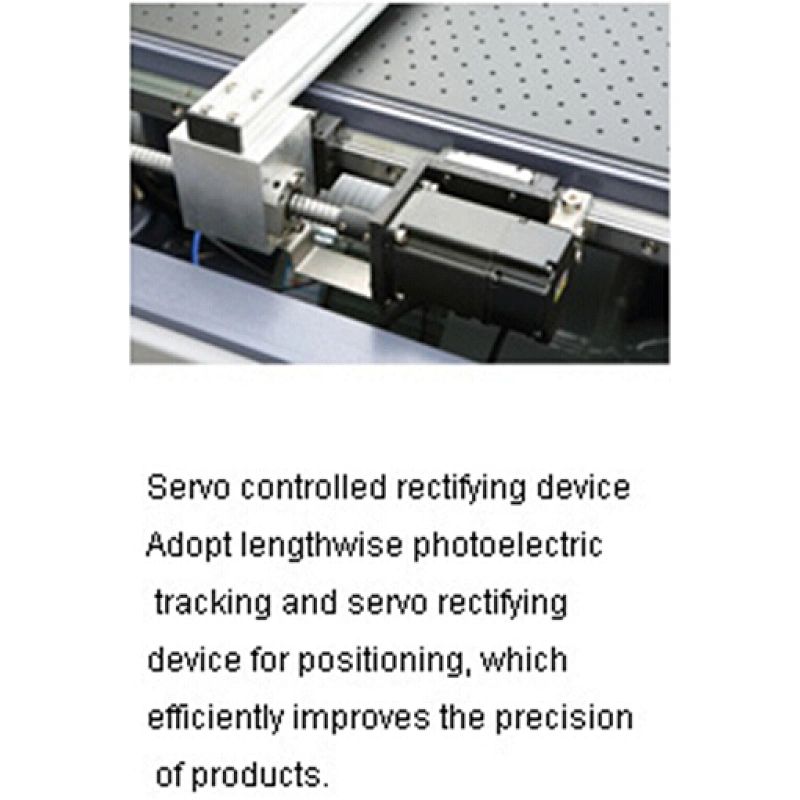

7. Thepaper and cardboard inner box employsphotoelectric sensor and servo motor to spot correctly.

8.Thewrapper can continually wrap, fold ears and paper sides and form in one process.

9. The whole machine employs PLC, photoelectric tracking system and HMI to automaticallyformingboxes in one process.

10. It can automatically diagnose the troubles and alarm accordingly.

The corresponding relationship between the parameters:

W+2H-4T≤C(Max)L+2H-4T≤D(Max)

A(Min)≤W+2H+2T+2R≤A(Max)B(Min)≤L+2H+2T+2R≤B(Max)
