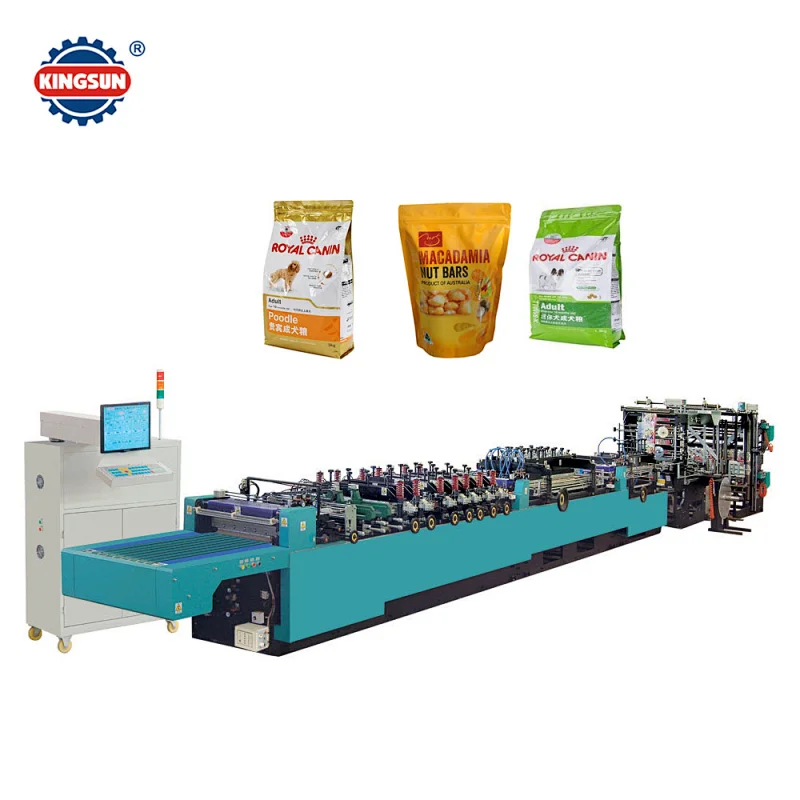

Servo Control High Quality Plastic Bag Four Side Sealing Center Sealing Machine
Servo Control High Quality Plastic Bag Four Side Sealing Center Sealing Machine

Servo Control High Quality Plastic Bag Four Side Sealing Center Sealing Machine

Model NO.
USD 42000.00-90000.00 / set
Minimum order quantity
1 set
Supply Ability
30 set / Month
Country of Origin
NIngbo or shanghai
  • Place of Origin:CN;ZHE
  • Weight:3500kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Dimension(L*W*H):11250X1700X1700mm
  • Model Number:WKZD-600ZF
  • Brand Name:Kingsun
  • Warranty:1 year
  • Computerized:YES
  • Power(W):45kw
  • Condition:New
  • Voltage:380V or others
  • Bag Type:Zipper Bag
  • Material:plastic
  • Certification:CE,ISO9001
  • Machine Type:SEALING MACHINE
  • Machine color:custmer choose

China high speed high quality best plastic bag four side sealing center sealing machine

Machine function: Center sealing, four side sealing

Mainly electrical equip:Two drawing servo motor,Taiwan IPC liquid crystal display compute. AC motor with Panasonic inverter for the mainly Master drive,12 segment temperature control.Unwind constant tension.

Material: BOPP.COPP.PET.PVC Nylong ETC.(laminated film,metallized laminated film, multilayer extruding film ,paper-film and Al laminated film).

Machine speed: 160 segment/min

Max unwind speed:≤40meter/min

Max bag size:length:400mm,more than this need multiple feeding(Max6times feeding)

Max width:600mm

Max unwind size:600×1240mm(Dia×Width)

Orientation precision:≤+/-0.2mm

Hot sealing knife quantity: vertical sealing 2 setscooling2sets

Plastic sealing 2sets

Transverse sealing3setscooling 1sets

Temperature control: 12 sets

Temperature setting range: 0~300℃

Totaol power:about45Kw

Machine size: 11250×1700×1700mm (length×width×height)

Machine weight:about 5000KG

Color: Green cover and black body
