Application of plastic film shrink wrapping machine:
It is mainly used to shrink plastic films on the lid of bottle
It is used to shrink bottle labels.

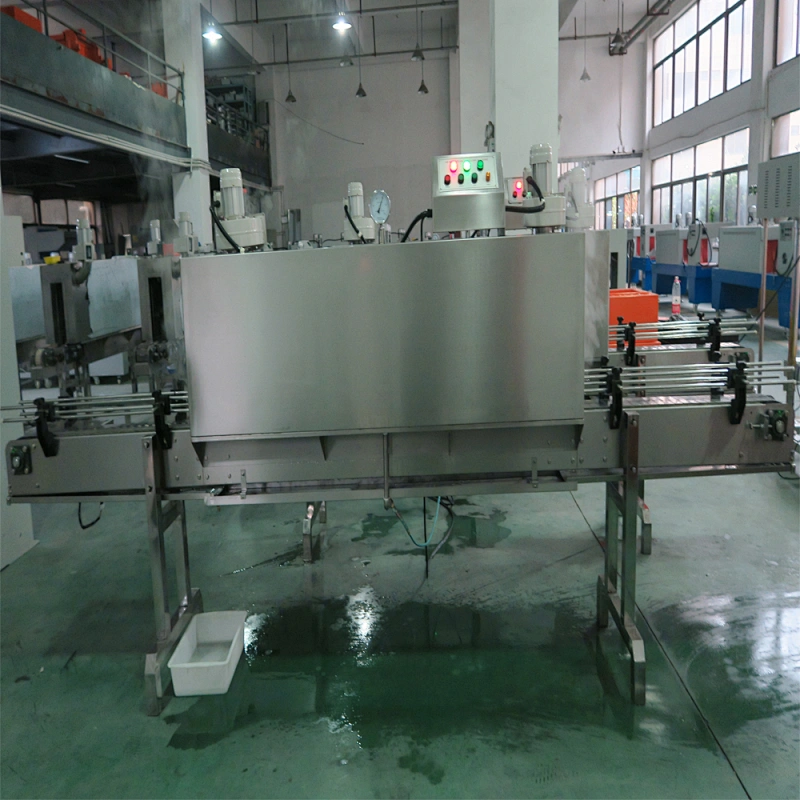

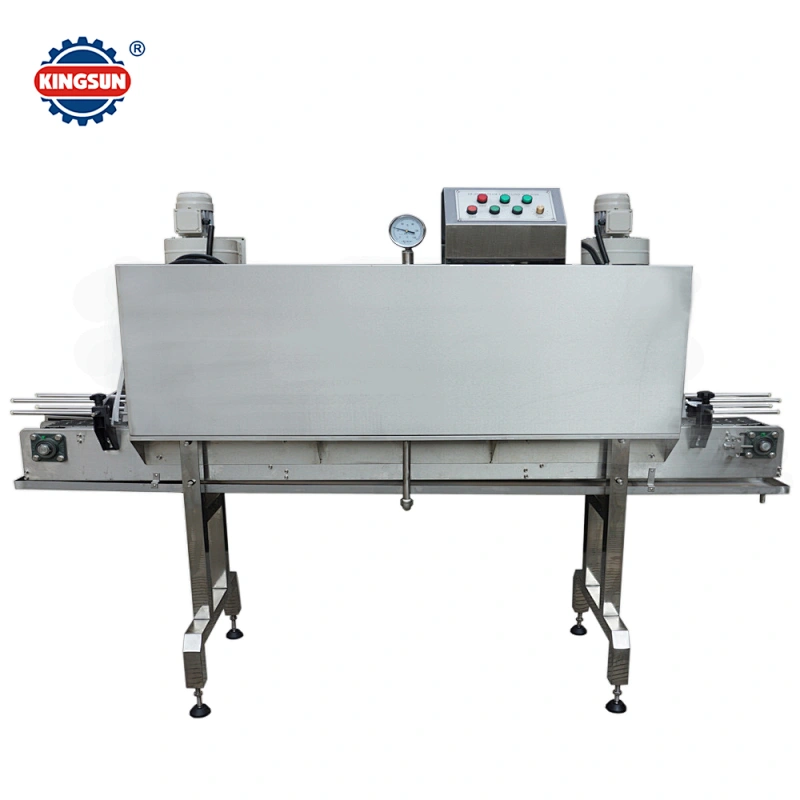

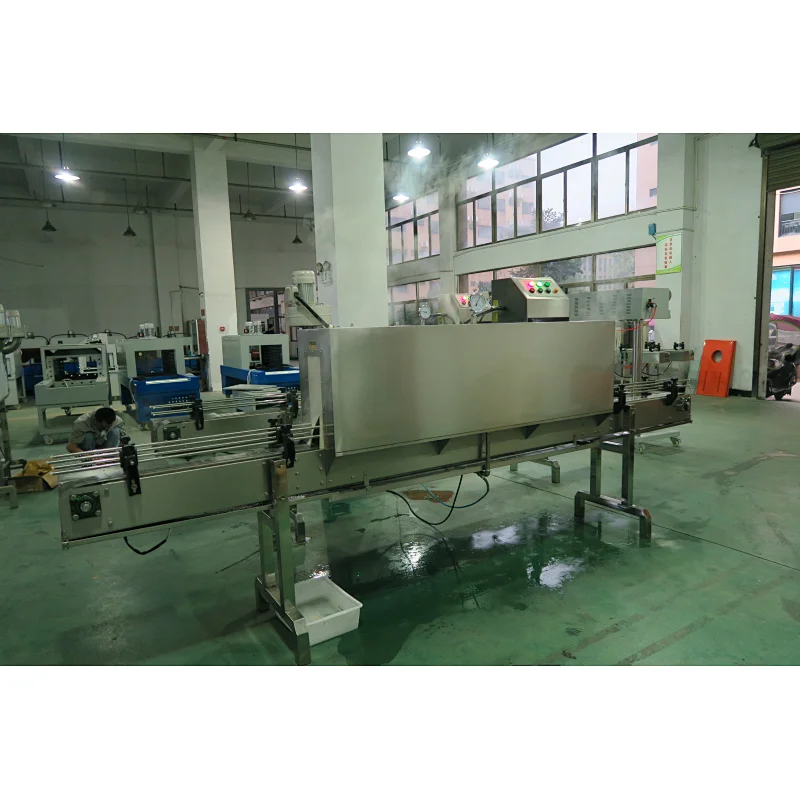

Descriptions of plastic film shrink wrapping machine:
This series PVC Cap Shrinking machines are mainly used to shrink label of product in bottle shape, can shape or barrel shape with glass bottle, plastic bottle or paper cup. The label is shrinking on the top or wrapping the whole bottle neck is able to be shrank with different type model. It is widely applied in the industry of food, medicine, cosmetic and pesticide, etc.
Intelligent shrink temperature control.
Model KP403Z: Steam heating (Steam heating, the product is packaged, more smooth, not wrinkled)
Model KP403: Ordinary electric heating

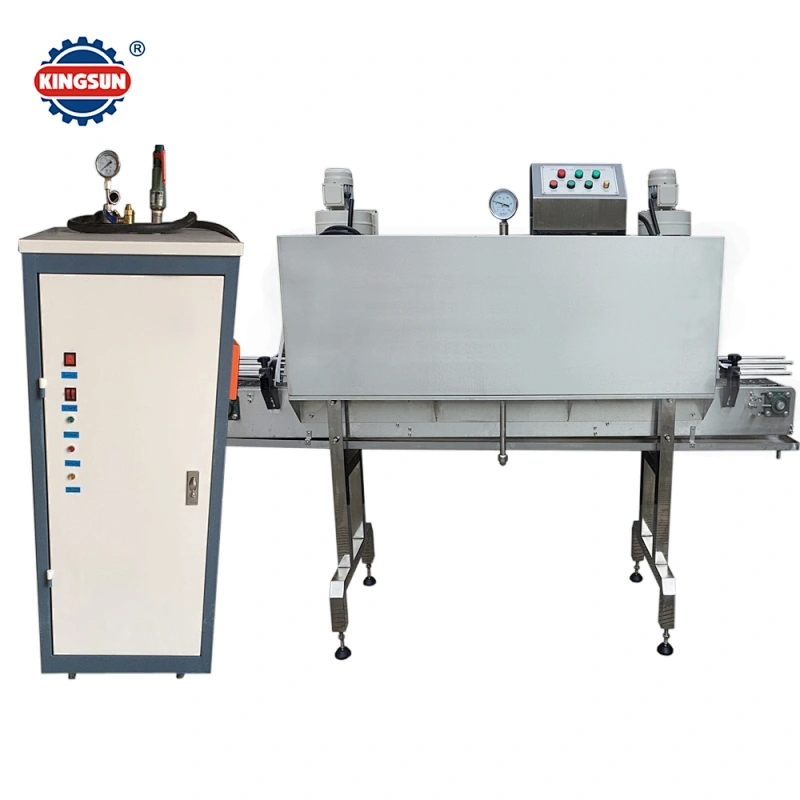

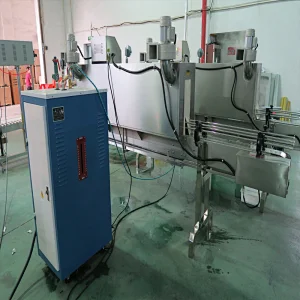

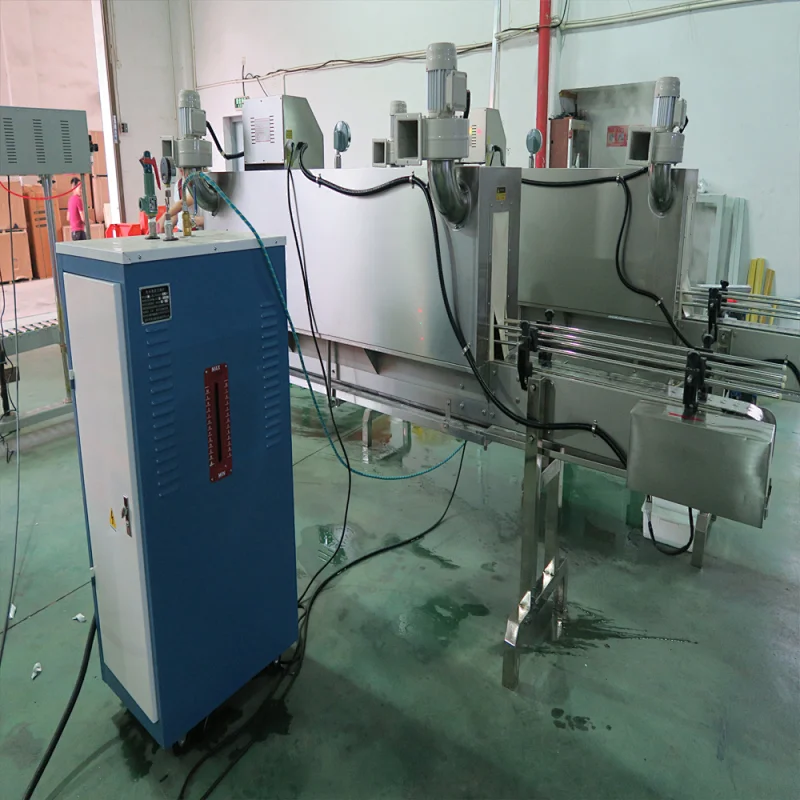

Steam heating machine
Our machines can be customized according to the size of the bottle.
Specification:
Model | KP403 | KP403Z |
Power Supply | AC380V 50/60hz | AC220v/380V 50/60hz |
Heater Power | 8kw | 24kw |
Conveyor Speed | 0-10m/min | 0-10m/min |
Tunnel Size | 1200X140X400mm | 1200X140X400mm |
Shrink Product Size | Φ120mm H400mm | Φ120mm H400mm |
Conveyor Loading | 8kg | 10kg |
Tunnel Temperature | 0-250℃ | 0-250℃ |
Machine Size | 2200×520×1600mm | 2200×520×1600mm |
Machine Weight | 160kg | 160kg |

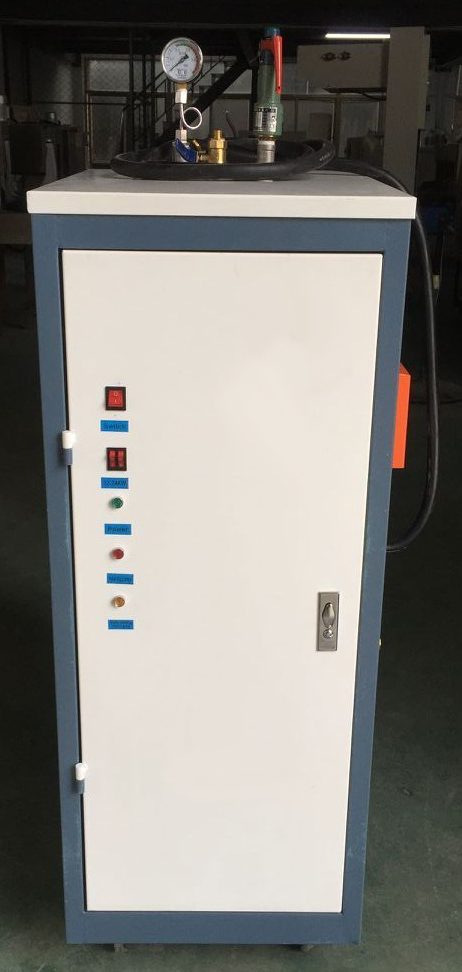

Name | Steam heating machine |
Voltage | 380V 50/60HZ |
Power | 24KW |
Steam Vapour Volume | 32KG/H |
Steam Pressure | 0.45MPA |
Steam Temperature | 155.3 DEGREE |
Effective Water Volume | 27L |
Weight | 84KGS |
