T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open turntable)

T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open turntable)

T1650FM Automatic Pre-stretch Pallet Film Wrapping Machine (open turntable)

Model NO.: T1650FM
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 20 set / Month
Country of Origin: Ningbo

Quantity:

Product Description

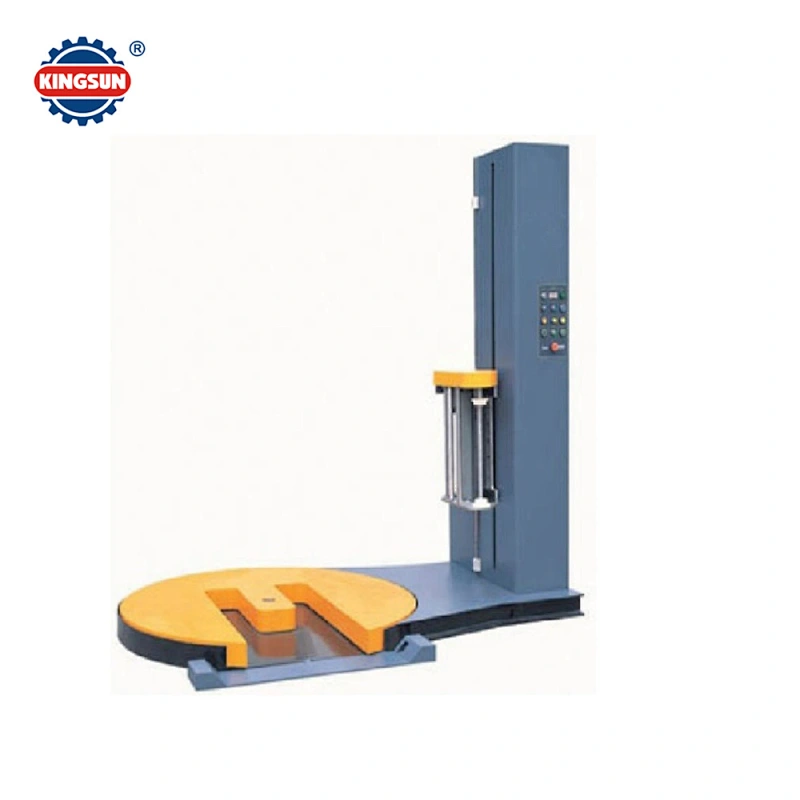

T1650FM Automatic Pre-stretch Pallet Wrapping Machine (open turntable)

Product Feature:

T1650FM Automatic Pre-stretch Pallet Wrapping Machinewith an open turntable in order to enable direct loading with manual or electric jacks, so there is no need either for floor modifications or for a ramp. Therefore, that would save much effort and improve efficiency. Top plate is optional and specially designed for holding an unstable product.

Technical Specification

Model	T1650FM
Wrap size(L×W)	(500-1200)mm×(500-1200)mm
Wrap height(max)	L type:1800mm H type:2400mm Y type:2800mm
Wrap efficiency	20-40 Pallets/Hour
Turntable speed	0-12rpm Adjustable turntable speed
Turntable diameter	1650mm
Turntable height	98mm
Turntable weight capacity(max)	2000kg
Film carriage	Pre-Stretch film carriage,stretch up to 250% and adjustable speed
Lift system	Double chain structure,lift speed adjustable
Control system	PLC control,wrap layers adjustable,Turntable automatic reset,photo-eyes auto-height sensing
Open turntable size	Custom made
Total weight(max)	700kg
Machine size	2745mm×1650mm×(2270-2870)mm
Power/voltage	Turntable:0.75kw Film carriage:0.35kw Lift system: 0.37kw`/AC220V

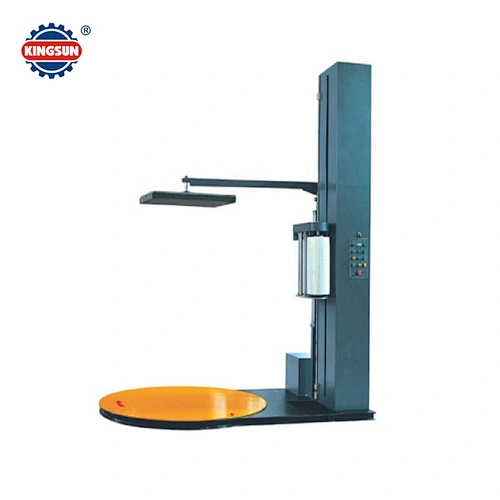

Top plate(optional)	Motor-driven
