Product Overview

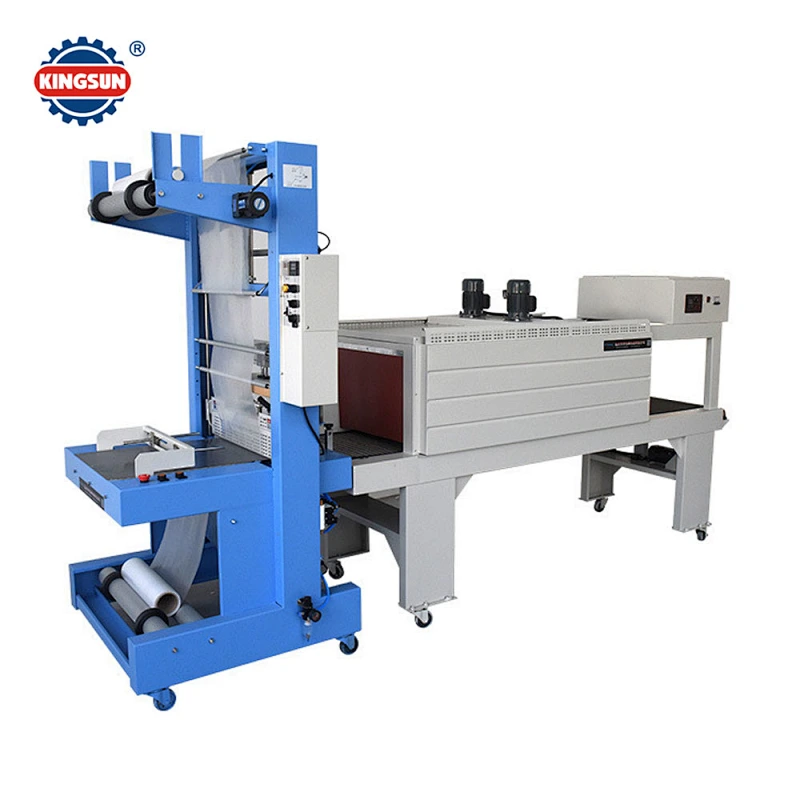

TF6540SA+BS5540M Semi- Automatic sleeve sealing & Shrink Packing Machine (Sleeve Type)
The object should be feed by manual, it can pack unitary counted case (box or can) and also many goods, and it’s used to sleeve seal for many different industries such as printing, floor, chinaware, beverage and beer etc. and it’s suitable for film of PVC,POF, PP and PE.
PRODUCT SPECIFICATIONS

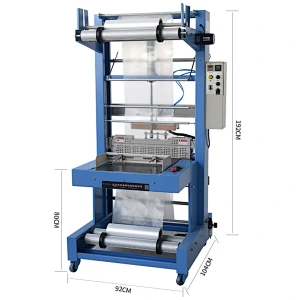

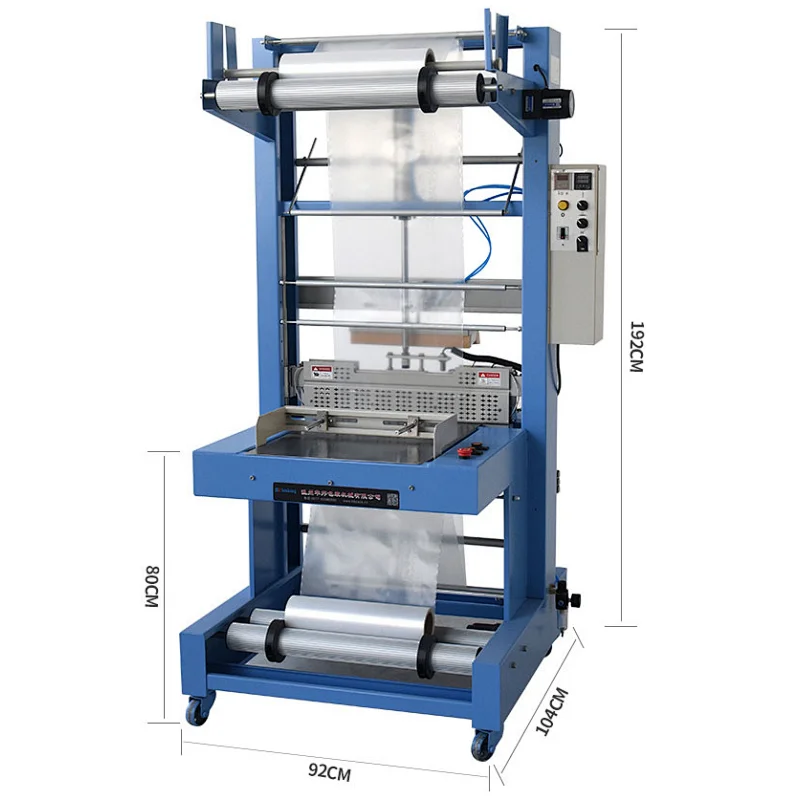

Model | TF6540SA |
Voltage(V/Hz) | AC 220/50 110/50 |
Power(kw) | 1.5 |
Max. Packing Dimension(mm) | 550×400×380 |
Max. Sealing Length(mm) | 650 |
Working Air pressure(kgf/cm2) | 5~7 |

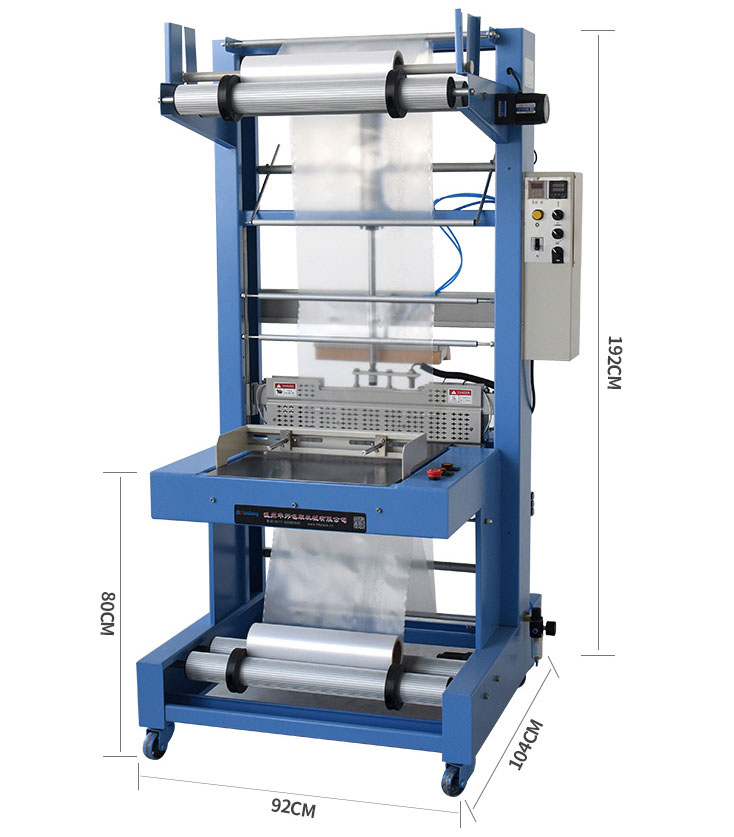

Dimension(L×W×H)(mm) | 925×1040×1920 |
Net Weight(kg) | 300 |

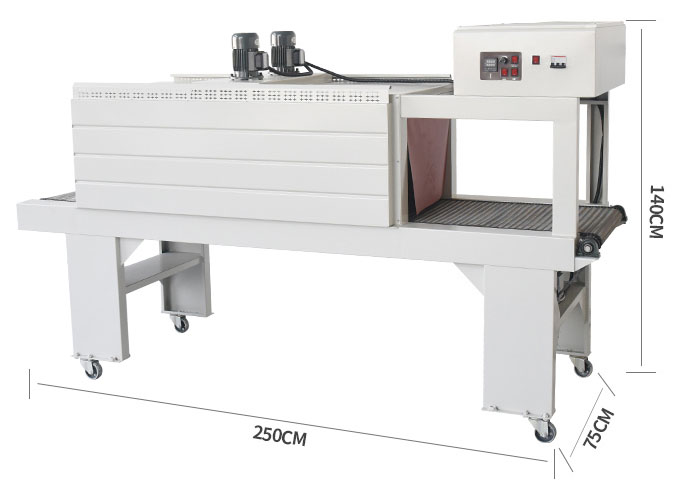

Type | BS5540M |
Voltage | 380V |
Power | 18KW |
Load | 40 |
Max. packing size(mm) | 550x400 |

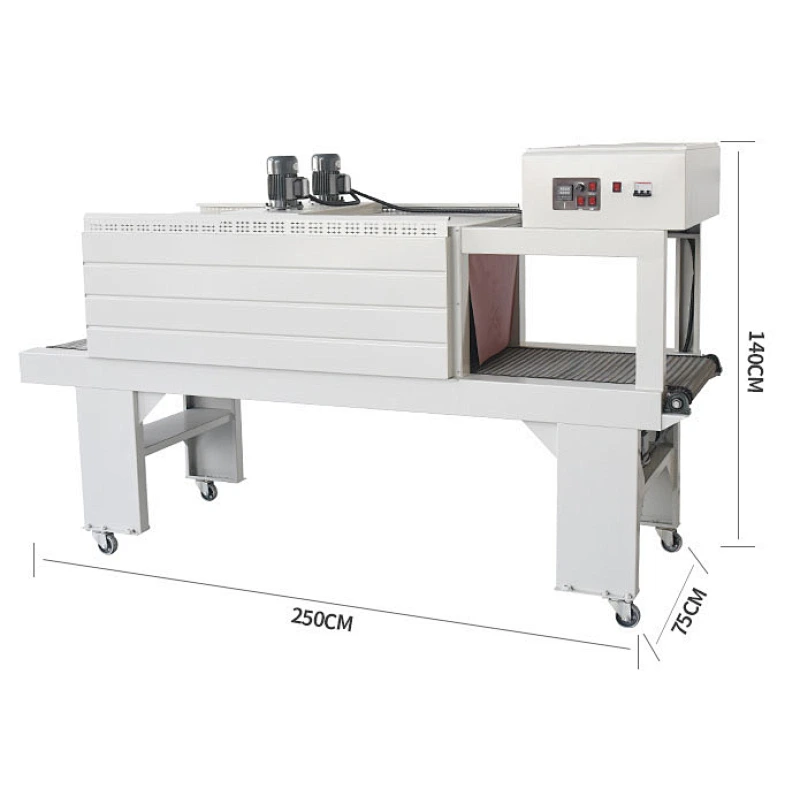

Overall dimension(mm) | 2500X750X1400 |
Delivery speed | 0-10m/min |
Weight | 240kg |
Shrinkable Film Temperature, Time Reference Table:
Film | Commonly called | Thickness (mm) | Heating time (S) | Thermal shrinkable room temperature (℃) |
Polyvinyl chloride | PVC | 0.02-0.06 | 5-10 | 110~130 |
Polypropylene | PP | 0.02-0.04 | 6-12 | 130~170 |
Polyethylene | PE | 0.03-0.10 | 20-30 | 170~200 |
Polyethylene | PE | 0.12-0.20 | 30-60 | 180~220 |

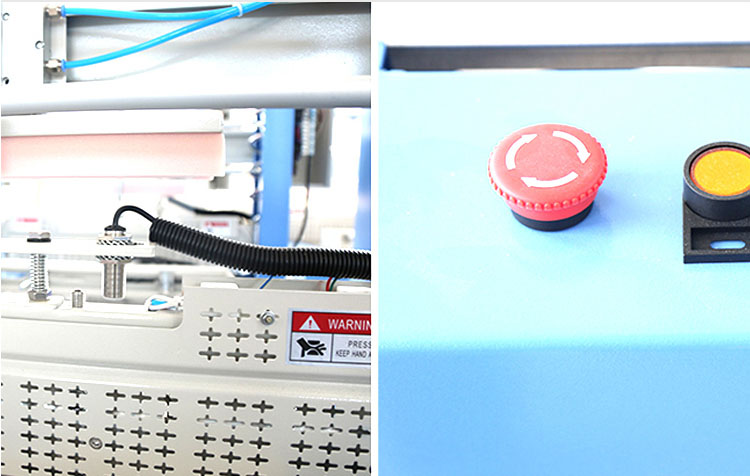

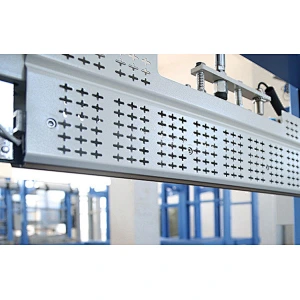

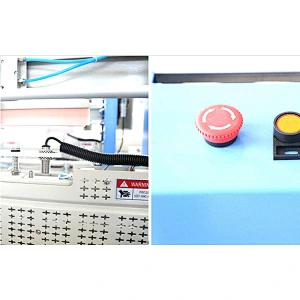

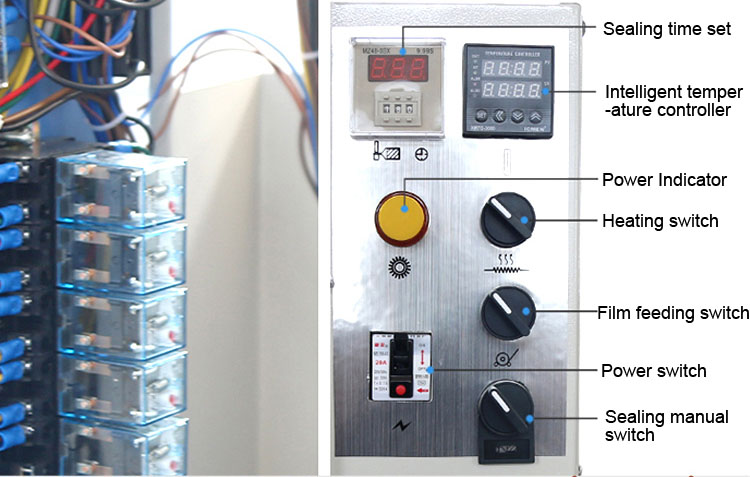

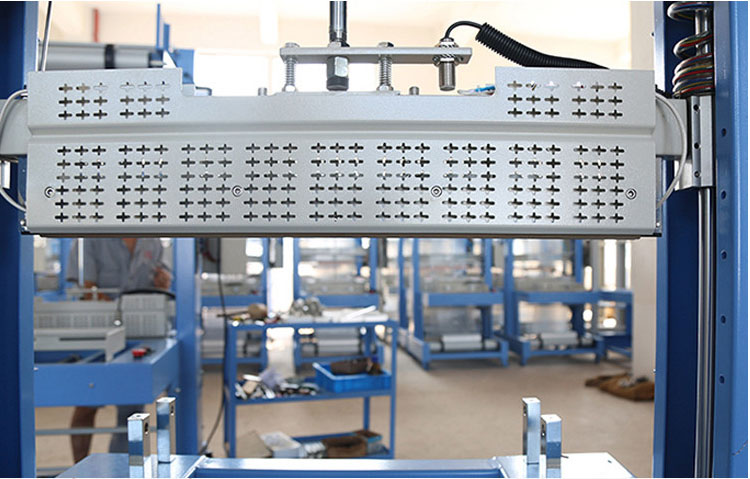

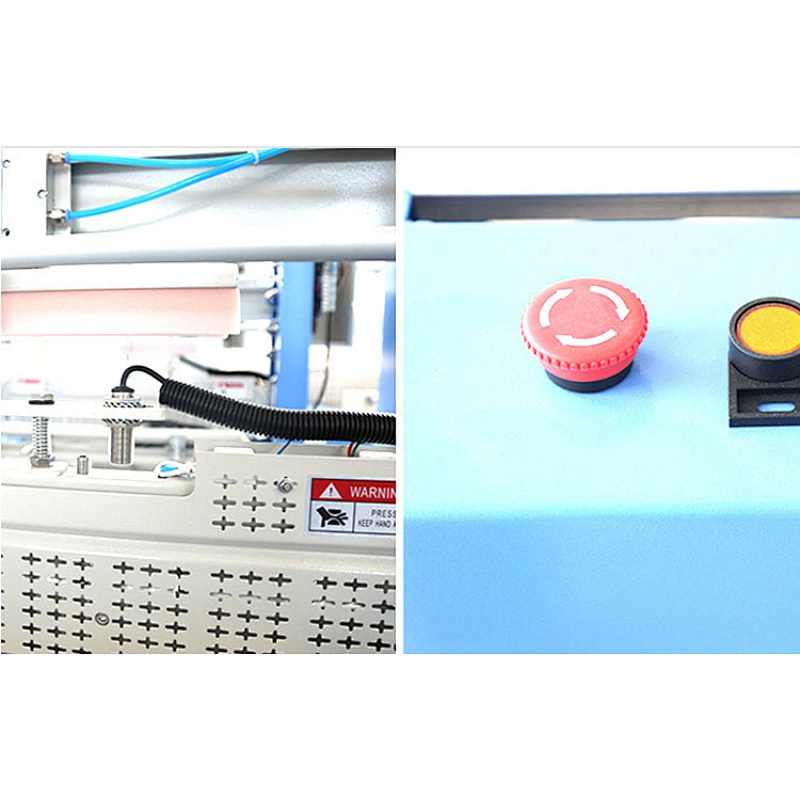

Details Images
