Automatic heat shrink packing machine
Automatic heat shrink packing machine

Automatic heat shrink packing machine

Model NO.
BMD-450B, BS-400LB
Minimum order quantity
1 set
Supply Ability
100 set / Year
Country of Origin

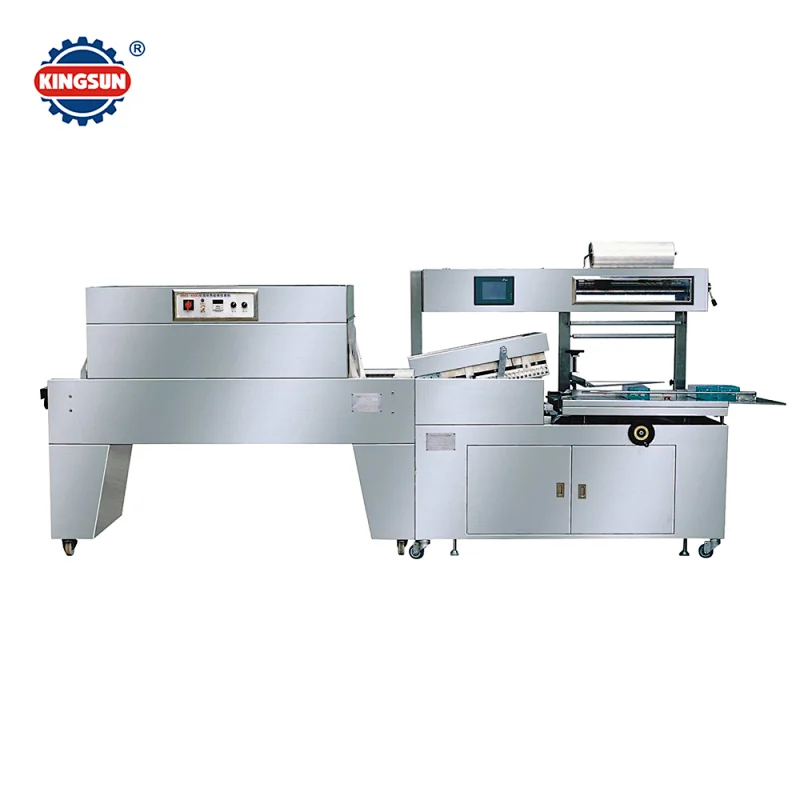

Fully Automatic Heat Shrink Packing Machine

This series of fully-automatic L-sealing and cutting machine, heat shrink packing tunnel machine, which is fully automatic type heat shrink packing machine, it is for heat shrink packaging and warapping goods to keep it out of humidity or dust, so can improve the package of products.

Type: BMD-450B(KSP-2), BS-400LB

BS-400LB micro-computer sealing-cutting machine together with BMD-450 B dual-cycling heat-shrinking packing machine, which adopts Japanese technology. It is high efficient packing equipment that can be in process of single or collective way of full-closed packing.
The machine adopts PLC program control, man-machine interface to operate. It is the product having upper automation degree and integrating motor and electricity. And it can replace the same kind of imported products. The complete machine is made of stainless steel and other normal type.

This machine suitable for packing of pharmacy, food, stationary, cosmetic, electronic products, toy, printing goods, CD tec.

It can package quickly with the Max. Speed of 35 p/min. And it is suitable for mass production.
Feeding, bag-making, sealing-cutting, collecting waste, neatening, shrinking and packaging are finished in one process automatically.
Constant temperature superfine Al alloy sealing blade, anti-stickiness, slight sealing, non-coking, non-smoking, without pollution occur.
Cutting blade safety system: Micro-sensor device, preventing blade from cutting hard objects and resilience safely.
Neaten automatically, delivery to flating structure after sealing, specializing in collective and unit packing of batch goods.
Adjust the dimension of packing objects optionally, and no need to change mould.
All transmission belts covers with special materials, so as not to scald and damage film.
The dual hot-air cycling temperature in the shrinking chamber can be set optionally.
Transmission motor adopts electronic stepless speed regulation, which has long lifetime and low noise.

Main Technical Data:
BMD-450B Dual-cycling heat shrinking packing machine:

Power Supply: 380V 50HZ(or special made)
Power: 7KW
Working Speed: 0-10m/min
Max Packing Size: 450x320mm(LxH)
Overall Dimensions: 1600x600x1260mm
Whole Weight: 200kg
Main Material: Stainless steel

BS-400LB Micro-computer L-sealing cutting machine:

Suitable film: POF
Power Supply: 220V 50HZ (or special made)
Power: 1. 25KW
Max Packing Size: 560x400x125mm
Production Capacity: 15-32Bags/min
Air pressure: 0. 5Mpa
Overall Dimensions: 1500x770x1450mm
Whole Weight: 350kg
Main Material: Stainless steel

Heat shrink packing machine, shrink wrapping machine, shrink tunnel, shrink wrapper,packing machine,shrink wrap machinery
