KHD-1050 Model Automatic Hot Foil Stamping Machine

KHD-1050 Model Automatic Hot Foil Stamping Machine

Model NO.: KHD-1050

Quantity:

Product Description
Application Description

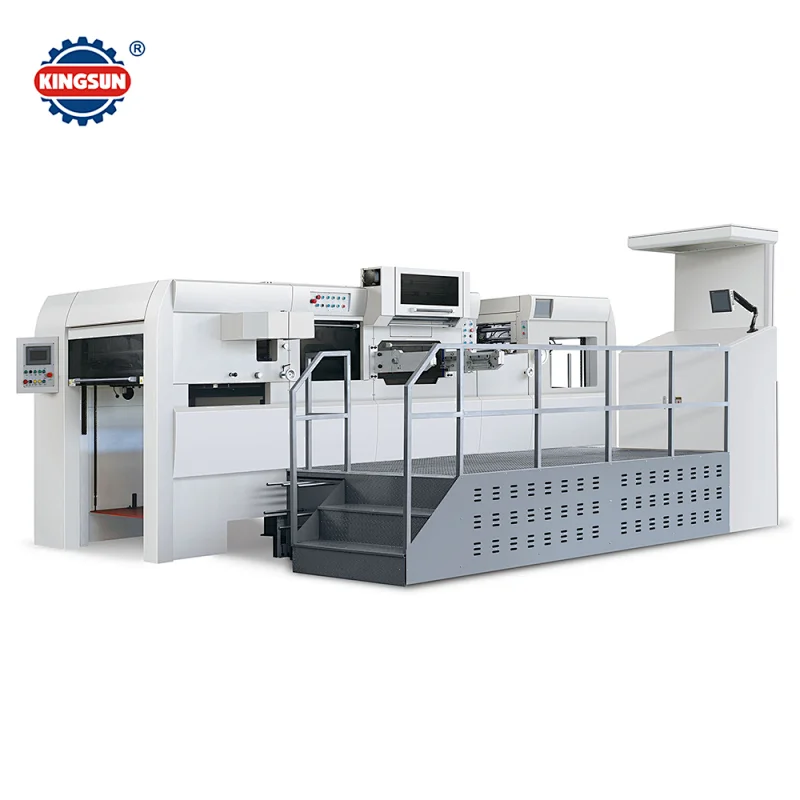

KHD-1050 Model Automatic Hot Foil Stamping Machine

KHD series automatic hot foil stamping and die-cutting machines are one kind of the newest model for high grade post printing finishing, it can efficiently complete the hot stamping, die cutting and embossing of paper products or plastic sheet, to realize the highest precision and finish product quality. This type machine is especially for high quality required printing house or packaging converting company.

Features:

1.All the machine adopts world latest technology.

2. Uses international famous brand electric components.

3) 20 years manufacturing experiences.

4) 15 more years export experience for international market.

5) Fast and reliable after sale service.

Main specifications:

Max. sheet size	1050×750mm
Min. sheet size	400×360mm
Max. die cutting size	1040×720mm
Max. hot stamping size	1040×720mm
Gripper range	9-17mm
Dimension of inner plate frame	1080mm×745mm
Paper thickness range	80~600g/m2(Card paper) ≤4mm(Corrugated paper)
Precision of die cutting	≤±0.1mm
Max. working pressure	300 tons
Max. working speed	7500 S/H for die cutting
Max. paper feeding stacking height	1600mm(Including wooden pallet)
Max. paper collecting stacking height	1400mm(Including wooden pallet)
Max. gold foil diameter	25cm(Longitudinal) 25cm(horizontal)
Electric-heated system	20 temperature zone, 40-180℃ adjustable
Foil width	20-1020mm
Main motor power	11kw
Whole machine dimension	L:7700mm(Including pre-feeding track) W:5200mm(Including the pedal) H:2600mm
Total weight	about 18.5 tons
Whole power	52kw
