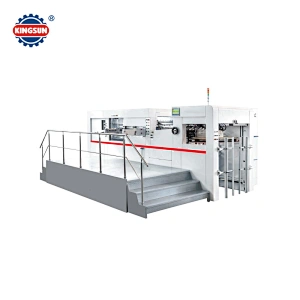

1050D Automatic deep embossing die cutting machine
1050D Automatic deep embossing die cutting machine

1050D Automatic deep embossing die cutting machine

Model NO.
1050D
Quantity:

1050D Automatic deep embossing die cutting machine

Product Description

TECHNICAL PARAMETERS:

Model number

LH-1050D

Max sheet size

1050*750MM

Min sheet size

400*360MM

Max cutting size

1040*720MM

Inner chase size

1080*745MM

Die cutting steel plate size

1080*736MM

Feed material

80-2000g/m² cardboard

Corrugated paper≤4mm

Plastic range

0.1-2.0MM

Cutting pressure

580T

Min grabbing-sheet width

9.0MM

Max cutting speed

7500sheets/hr

Total power

20kw

Number of heating zones

40-180°c adjustable, 12 heating zones

Full load wattage

42kw

Machine weight

18.9T

Machine dimension

7400*4200*2100mm

Deep embossing/die cutting part

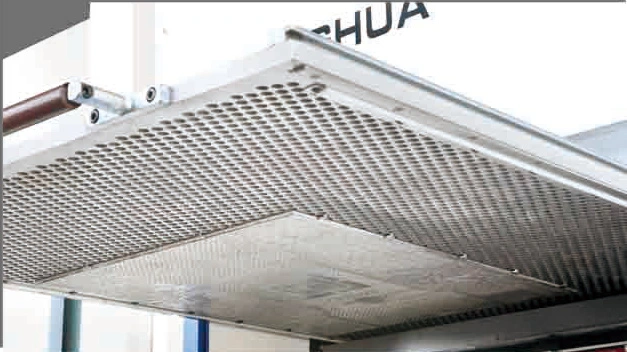

In the die cutting platform, it adds 12 heated temperature zone, each zone could controlled by alone, and heated even temperature. It is adopt to hot embossing, hot lumps and bumps, hot indentation and so on. Hot press honeycomb is made by nodular cast iron which is high strength and heat resistance, it will be not transformation. Hot press honeycomb knife could be changed, so that it could change hot press function and die cutting function.

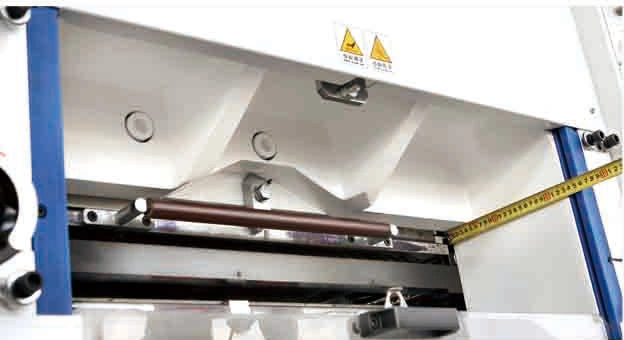

Thicken wall

Thicken wall could stress-tolerant 1000Ton, the embossing is more clear, the effect is more better.


Pneumatic clutch

The imported high quality pneumatic clutch reduces noise and minimizes impact when stopping the machine at a high speed.


12 temperature control sectors

The 12 independent heating zones are controlled by an accurate PID system developed by masterwork machinery, The PID system provides variable and even temperature across the embossing plate, it could adjust complexity electrochemical aluminum transfer effect.


Company Information

Kingsun Company also boasts its 12 more years of experience in supplying a variety of printing and packaging machinery and materials, so we deliver goods worldwide, our teams are all university graduated and constantly with professional training with energetic and positive attitude, so we fully understand how to provide high-quality products and better services to our global customers. We continuously improve our organizational management, adopt the most advanced technologies and software system, so we have been keeping the pace with the leading position in the industry.

Kingsun Company has 15 more manufacturing factory bases, each factory focus on one or a few kind of specific printing and packaging machines production, as a result, we have the ability to meet different needs from different buyers, this way can take advantage of our machinery group and each of factory can play its own marketing or manufacturing strengths.

Our team has accumulated so many years of experience for printing and packaging machinery industries, we also have established a specialized after-sales service team and R&D team, so that we can provide our buyers with better machines and services.


FAQ

How to place an order with Kingsun Machinery

It is quite easy for the procedures of placing an order with Kingsun machinery. 1) Firstly our sales team (together with engineers) will discuss with you about the technical requirement, 2) After finalized the specification, we will issue you a proforma invoice or contract, then you make deposit and we start the production. 3) When we finish the production, we will send you video or photos for check, if everything is fine, we test run the equipment again before shipment and then prepare the shipment for you. 4) You make the payment, we ship the goods to the address you given. 5) You receive the machines, we start after sale service. For example, we send technician to visit your factory for installation etc.

What are the customers more care about?

Kingsun machinery has established good relationship with thousands of buyers from all around the world since 12 year ago. Good service and quality of equipment is most important for the buyers, we are focus on providing first class service for the buyers.

How does Kingsun company help you ?

We help you to choose suitable models, fit for your production. We are trust worthy company so you no need to worry about the safe of payment, no worry about machine quality and after sale services etc.

Why choose Kingsun company as your partner in China?

Professional service, honesty and reliable is our philosophy, win-win cooperation, we take much care of you and in view of long term relationship!
