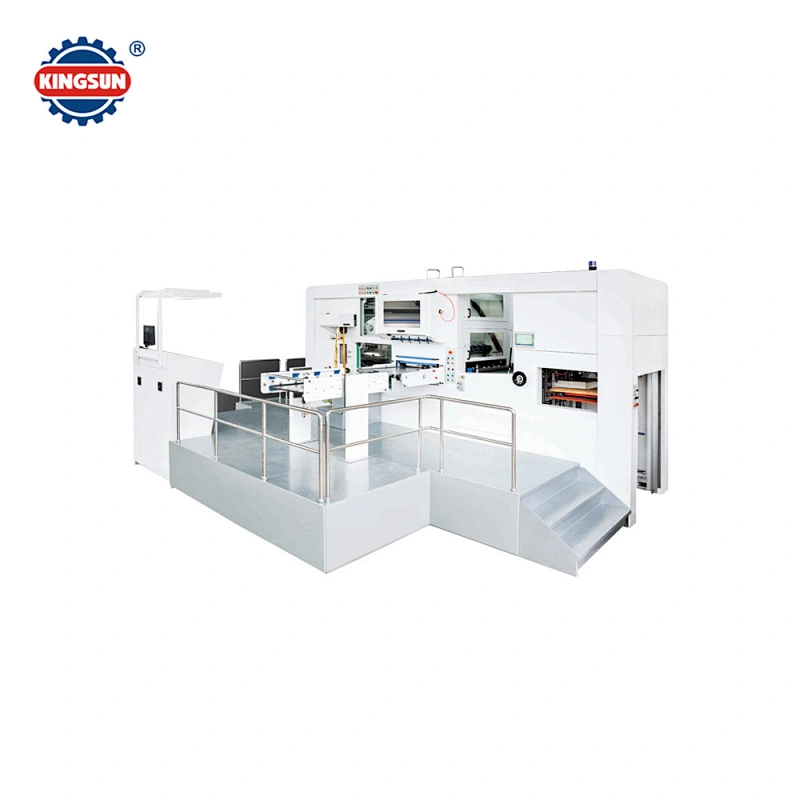

1050ESF Automatic Foil Stamping and Stripping Die Cutting Machine
1050ESF Automatic Foil Stamping and Stripping Die Cutting Machine
1050ESF Automatic Foil Stamping and Stripping Die Cutting Machine

1050ESF Automatic Foil Stamping and Stripping Die Cutting Machine

Model NO.
1050ESF
Quantity:

1050ESF Automatic Foil Stamping and Stripping Die Cutting Machine

Product Description

TECHNICAL PARAMETERS:

Max sheet size1050*750mm
Min sheet size 400*360mm
Max Cutting size1040*720mm
Max Foil Stamping size1040*720mm
Paper thickness

80-2000g/m² cardboard

Corrugated paper≤4mm

Min waster side width 8mm
Max mechanical speed7500sheets/h
Max foil stamping speed6500sheets/h
Max die cutting pressure420T
Max feeding plie height1540mm
Max delivery pile height1340mm
Total weight22T

Dimensions

(with ore-pile device)

8000*6000*3000mm
Heated system zone 12
Stamping temperature range0°c-200°c
Foil feeding shaftV3+H2
Total power 70kw
Air compressor 0.8Mpa,≥0.6m3/min

Feeder/ Feeding Section:

The design of stacker preparatory stage was improved, it could use prepared can sheet piling, Also could use ordinary hydraulic car sheet piling to stacker directly. The machine has four suction nozzles and four sending nozzles in feeder, ensure feed smoothly. Adopt import screw air-blowing device, it could make the sheet send smoothly.

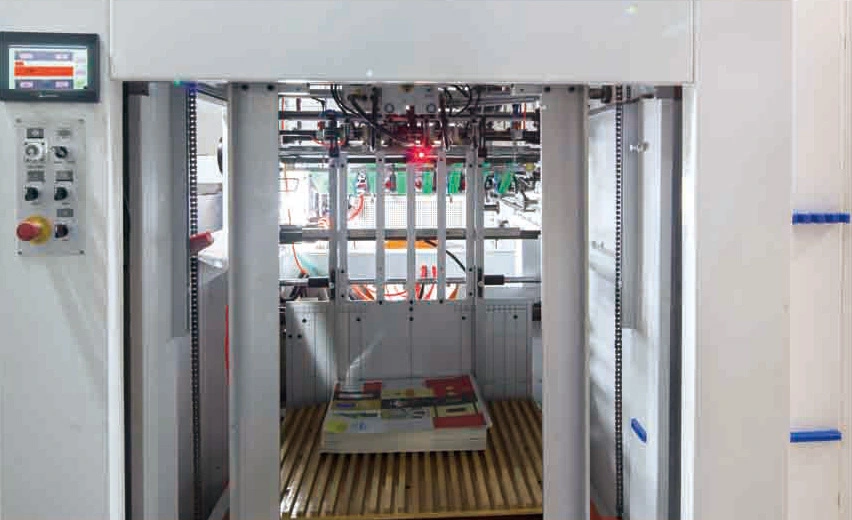

Automatic Sheet Piling Positioning System

The sheet piling plate will be moved to fixed position automatically when you enter the sheet size. it is very convenient for opetator to load the paper.

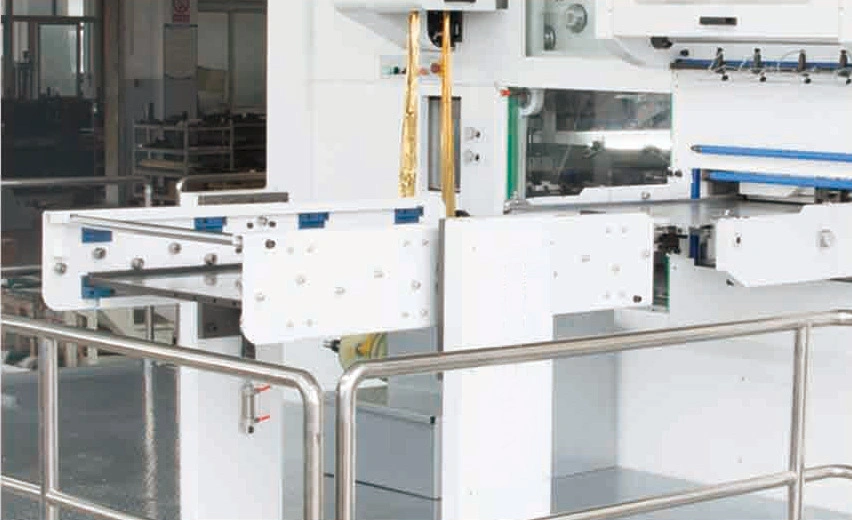

Foil Stamping/Die Cutting Plate Quick Changed Device

The sheet piling plate will be moved to fixed position automatically when you enter the sheet size. it is bery convenient for operator to load the paper.

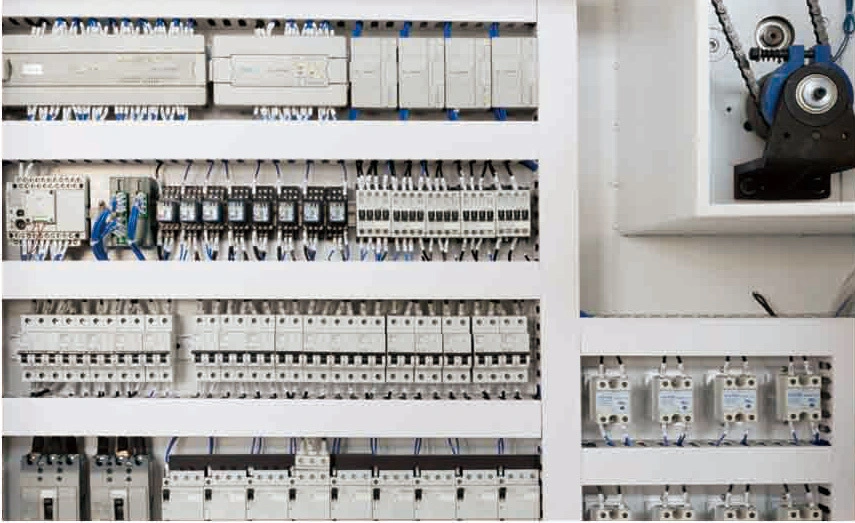

Electric Appliance Cabinet

All main electric appliances were imported from foreign countries, make sure machine running smoothly and stably.

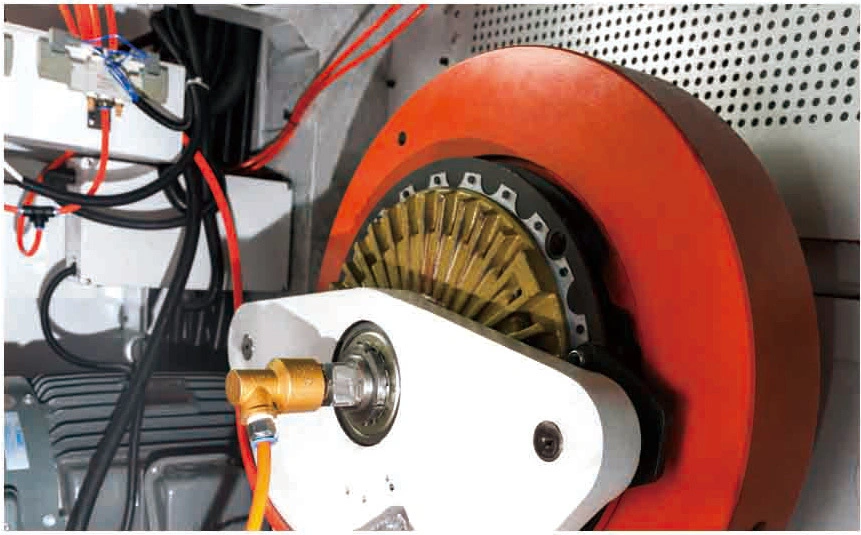

Enhanced Pneumatic Clutch

Providing huge pressure, make sure foil stamping has good effects.



Remote Control System

After connecting the internet, through this system we could remote control this machine then solve problems for customers.


Company Information

Kingsun Company also boasts its 12 more years of experience in supplying a variety of printing and packaging machinery and materials, so we deliver goods worldwide, our teams are all university graduated and constantly with professional training with energetic and positive attitude, so we fully understand how to provide high-quality products and better services to our global customers. We continuously improve our organizational management, adopt the most advanced technologies and software system, so we have been keeping the pace with the leading position in the industry.

Kingsun Company has 15 more manufacturing factory bases, each factory focus on one or a few kind of specific printing and packaging machines production, as a result, we have the ability to meet different needs from different buyers, this way can take advantage of our machinery group and each of factory can play its own marketing or manufacturing strengths.

Our team has accumulated so many years of experience for printing and packaging machinery industries, we also have established a specialized after-sales service team and R&D team, so that we can provide our buyers with better machines and services.


FAQ

How to place an order with Kingsun Machinery

It is quite easy for the procedures of placing an order with Kingsun machinery. 1) Firstly our sales team (together with engineers) will discuss with you about the technical requirement, 2) After finalized the specification, we will issue you a proforma invoice or contract, then you make deposit and we start the production. 3) When we finish the production, we will send you video or photos for check, if everything is fine, we test run the equipment again before shipment and then prepare the shipment for you. 4) You make the payment, we ship the goods to the address you given. 5) You receive the machines, we start after sale service. For example, we send technician to visit your factory for installation etc.

What are the customers more care about?

Kingsun machinery has established good relationship with thousands of buyers from all around the world since 12 year ago. Good service and quality of equipment is most important for the buyers, we are focus on providing first class service for the buyers.

How does Kingsun company help you ?

We help you to choose suitable models, fit for your production. We are trust worthy company so you no need to worry about the safe of payment, no worry about machine quality and after sale services etc.

Why choose Kingsun company as your partner in China?

Professional service, honesty and reliable is our philosophy, win-win cooperation, we take much care of you and in view of long term relationship!
