Model NO.
1050FH/FF
Quantity:

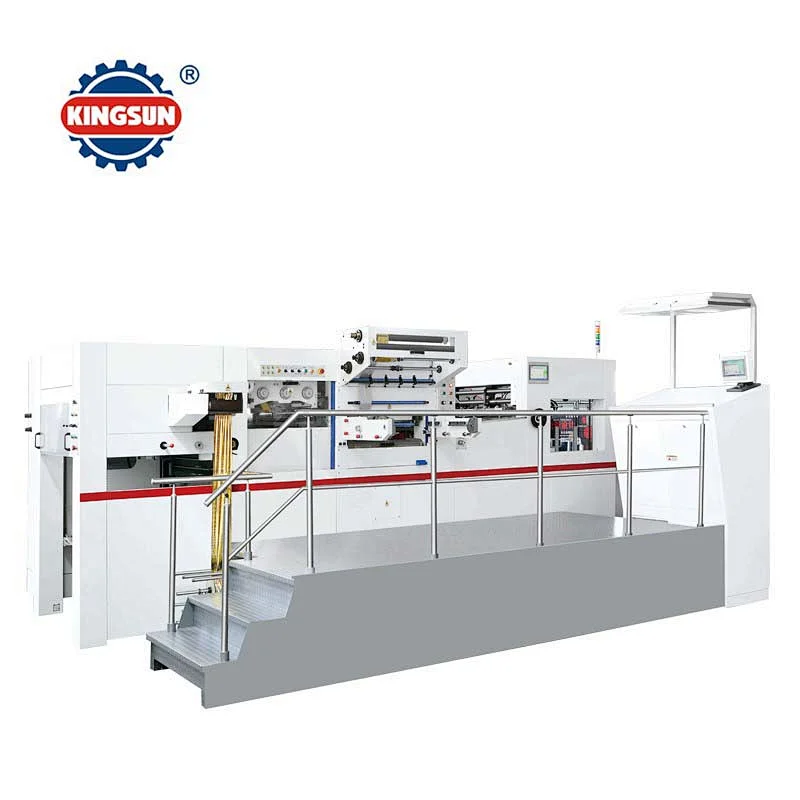

1050FH/FF Automatic hot foil stamping and die cutting machine

Product Description

TECHNICAL PARAMETERS:

Max paper size

1050*750mm

Min sheet size

400*360mm

Max cutting range

1040*720mm

Inner chase size

1080*745mm

Die cutting steel plate size

1080*736mm

Applicable paper range

80-2000g /m² cardboard,

Corrugated board thicknessr≤4mm

Min waste side width

8mm

Max machine speed

7500times/hour

Max compressive shear

300T

Net weight

16.8T

Overall dimensions

7060*4669*2230mm

Max foil stamping range

1050*600mm

Vertical foil stamping section performance specification

Max foil width

1020mm

Min foil width

25mm

Max length of pull foil

700mm

Max put foil roll diameter

240mm

Horizontal foil stamping section performance specification

Max foil width

600mm

Min foil width

25mm

Max length of pull foil

1020mm

Max put foil roll diameter

200mm

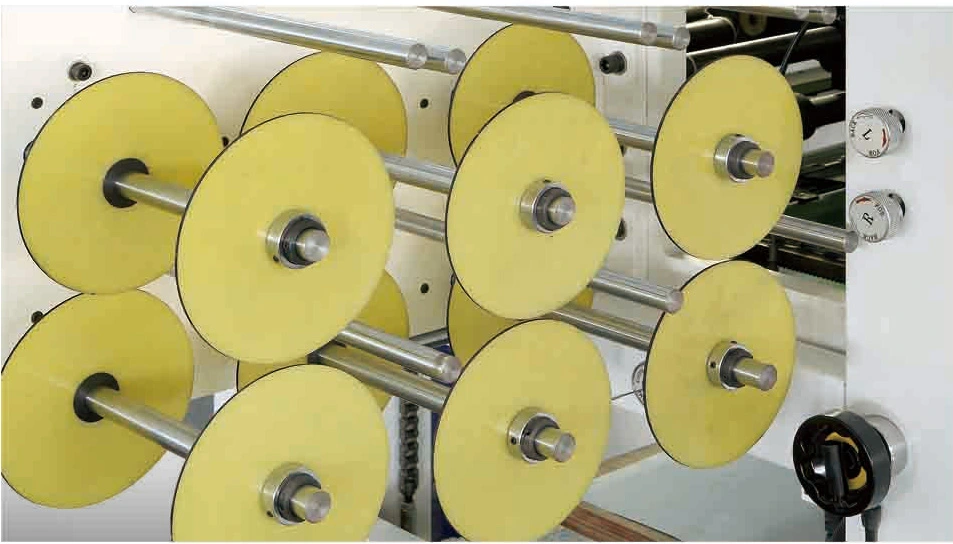

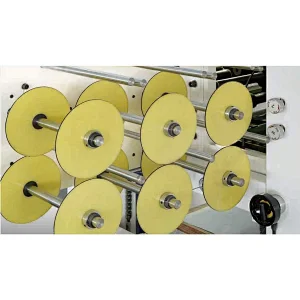

Foil stamping system and other comprehensive performance specification

Stamping temperature adjustment range

0°c-200°c

Heating plate heating zone

12

Electric hot plate with electricity

24kw

Total electricity requirements

57kw

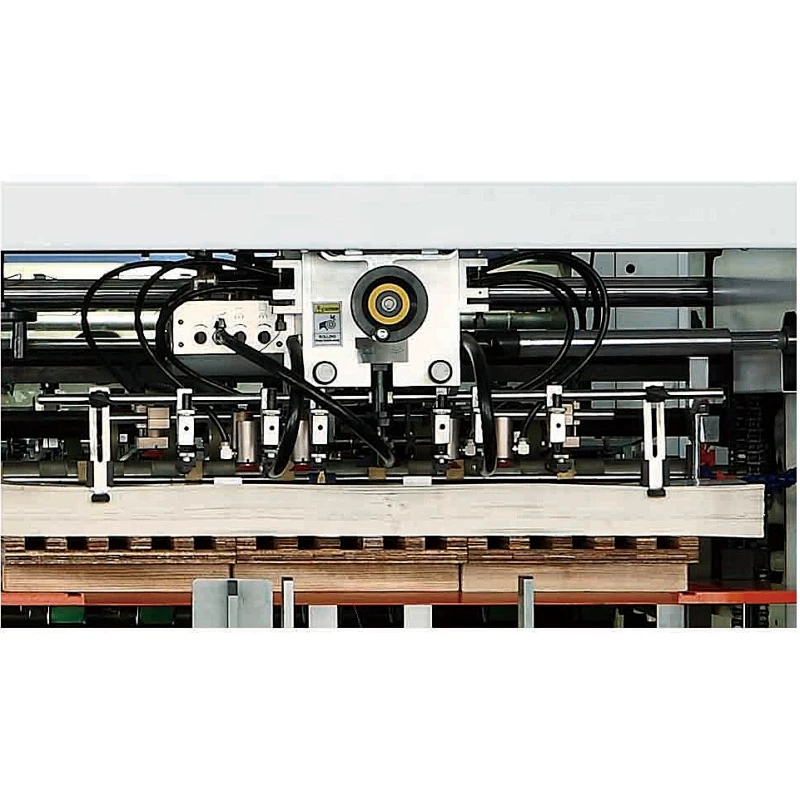

Feeder/Feeding section:

The design of stacker preparatory stage was improved, it could use prepared can sheet piling, Also could use ordinary hydraulic car sheet piling to stacker directly. The machine has four suction nozzles and four sending nozzles in feeder, ensure feed smoothly. Adopt import screw air-blowing device, it could make the sheet send smoothly.


Delivery section

Dlivery section add tester into security system. Allocation inset counter. Using subsection could adjust brush and sheet air-blowing device, so that the finished product of delivery section could product stably. Gripper drive train expanded buffer device.

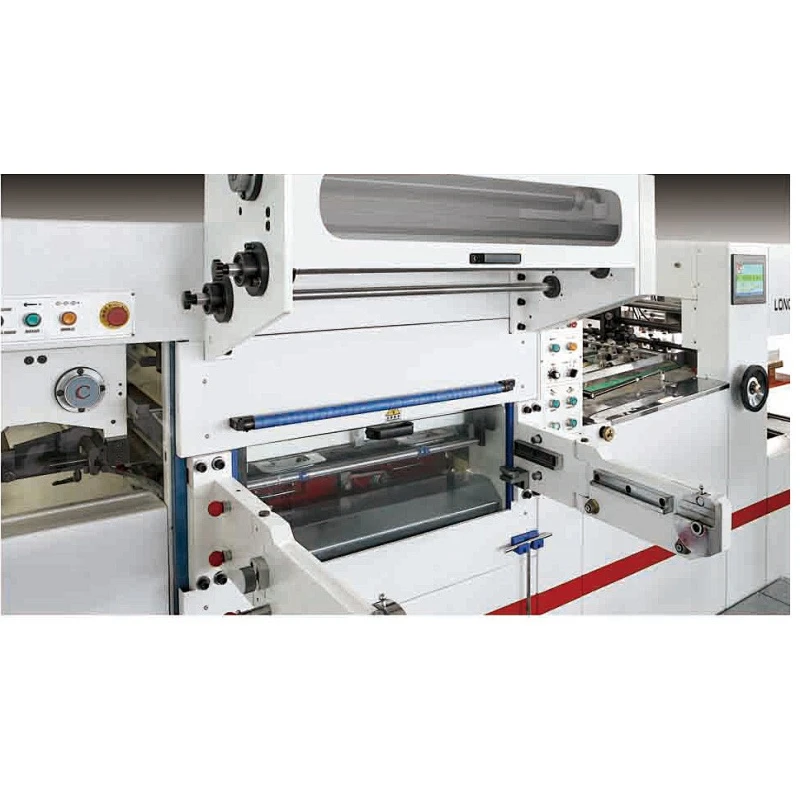

Cutting section/ horizontaland vertical foil stamping system

Adopt advanced technology with single gripper location could adjust the front-and –back registration. Horizontal hot stamping dual-anxis/vertical hot stamping tri-axial( standard configuration), put horizontal hot stamping collection of waste foil frame into operationside, it is benefit of operation. 12 electric heating zone has timing pneumatic temperature colltroller function, each zone can be controlled by sepatated zone. Adopt motion controller, it could control foil-delivering servo counter and track the machine speed variation timing, so that it could reach the foil –delivering smoothly.

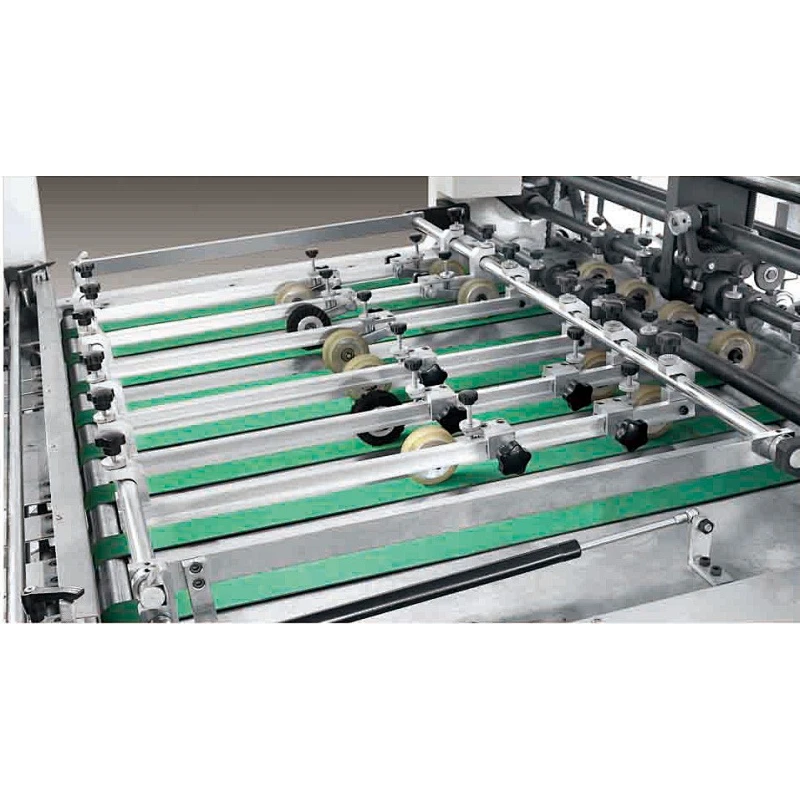

Feeding positioning section

The incline-type paper moving table top is more suitable to high-speed thin paper and location. Side location adopt dual purpose side device with pull and push, according to paper choose, it makes switch easier. It could switch front rise position arriving reduction of speed device, it is benefit of thin paper’s location.


Quick changed foil device

Vertical underfoil frame could be pulled out machine, so that it could make the foil work more convenient.


Rewinding foil device

There has brush rewinding foil function. And it has equipped with a simple collection waste device.
