Model NO.
800
Quantity:

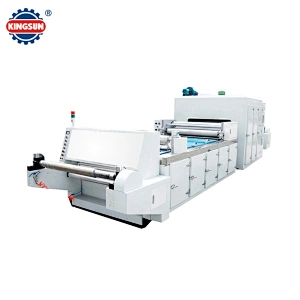

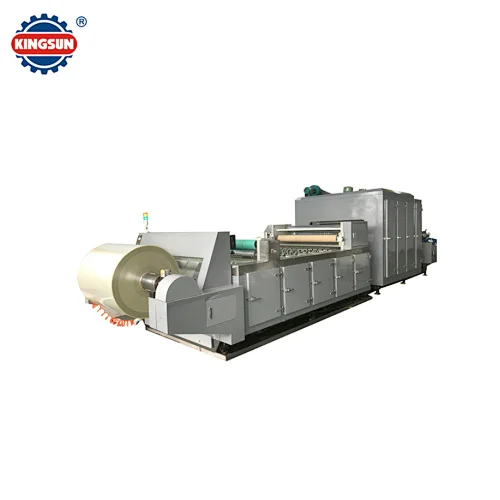

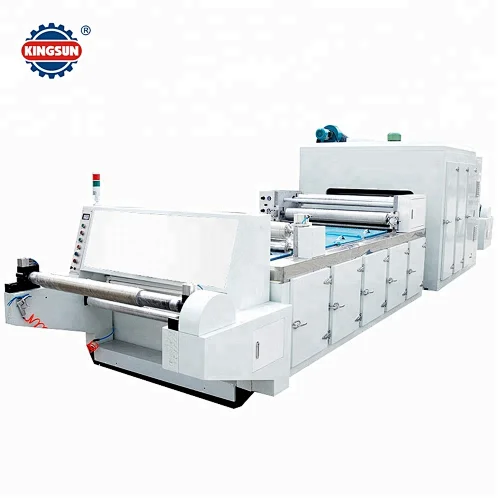

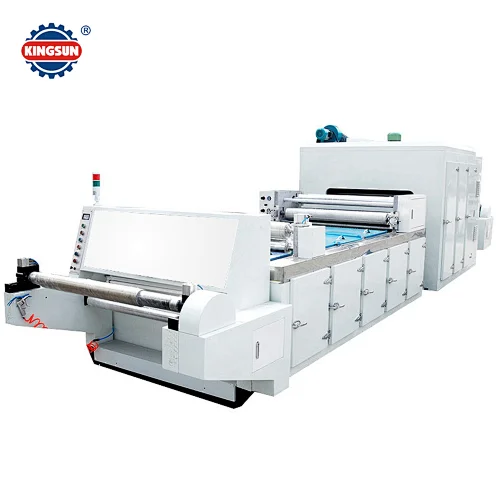

800 Metalized Film Demetallizing Machine, for normal metalized film or holographic film etc.

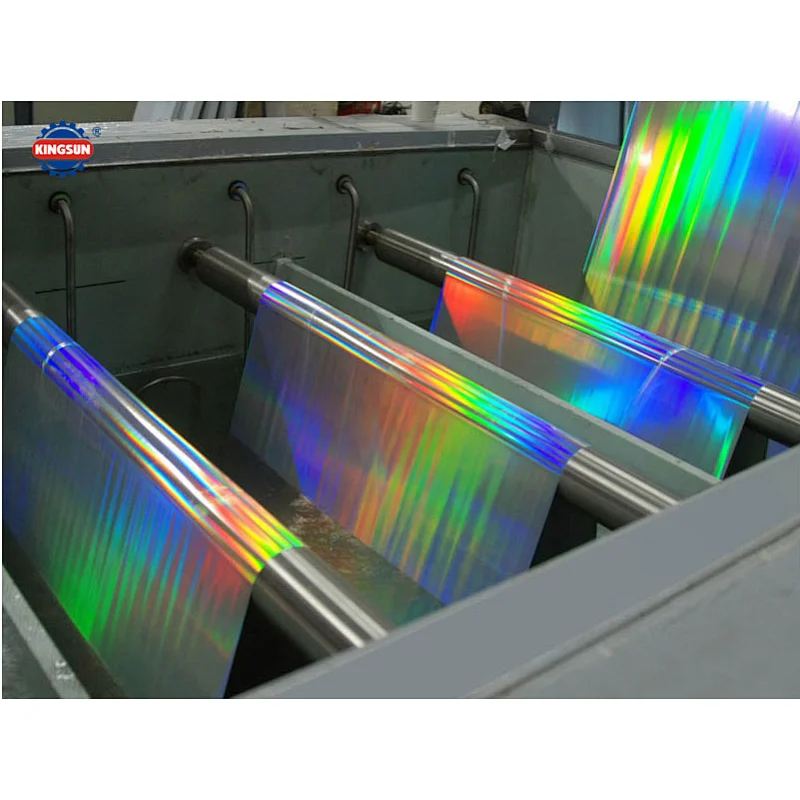

800 model demetallizing machine is widely applied to partly chemical etching washing metalized film or laser holographic BOPP, PET, PVC film to make window by chemical or water washing-away methods for giving prominence to logo position, the see-through window is optional according to client's requirements in size and shape. Kingsun Machinery has over 12 years experience for this type of demetalizing equipment, we can special made it for your production. The demetalized film after laminated with printed film,the laminates will be greatly improved the level, so you can get more profit from this flexible packaging converting.

Features of demetallization machines:

1.The chemical reaction tank for this windowing machine is made of PVC materials and the guide roller is made of stainless steel. So it is strong in anti-corrosion performance and durability.

2.It features drying system which is scientific in working way and quicken the drying speed, and help part see-through part of the film same as before.

3.Low in cost, only keep the concentrate of the reaction solution which is sustained by supplying chemical solution that costs USD0.70 after each 10 hours working time. Besides, the chemical reaction liquid is without color, odorless, toxin-free and exhaust-free, so it's good for environmental protection

4.Very easy to master the technology how to make it, simple for operation and maintenance.

Main Specifications:

Model

Working Width

Working Speed

Web Dia

Main Motor

Water Pressure

Total Power

Mounting Size

Weight

1200

1200mm

60-100m/min

500mm

1.5kw

≥0.2Mpa

38kw

860x150x150cm

4.3/T

1000

1000mm

50-100m/min

500mm

1.5kw

≥0.2Mpa

32kw

806x130x150cm

3.8/T

800

800mm

50-100m/min

500mm

1.5kw

≥0.2Mpa

28kw

860x110x150cm

3.3/T
