Model NO.
KCP-A4-35
Quantity:

5 rolls fully automatic A4 A3 size manufacturing paper cutting and packing machine,or A3 or A4 paper cutting and packaging machine is new advanced equipment for converting A4 copy paper reams. With features of high automation and low labor intensity. It is an integration of electric, PLC controlling system and mechanical automation.

The whole process consists of paper roll unwinding, slitting, sheeting, counting, conveying, reams ejecting, packaging and delivery.

Main Structures:

1) Shaftless unwinding controlling system------ Two sets

2) Advanced tension controlling system ------ Five sets.

3) Five sets of anti-warping mechanisms------Five sets.

4) Longitudinal slitting knife groups------Five sets.

5) Simultaneous sheeting knife group-----One set.

6) High-speed paper feeding system-----Three sets.

7) Low-speed paper feeding system-----Two sets

8) Waste paper automatic discharging system-----One set.

9) Making papers in order of 2D vibration, the cylinder lifting device of reams of paper collecting system------One set.

10) PLC reams of paper counting device------One set.

11) Reams of paper longitudinally discharging equipment-----One set.

12) PLC failure alarm and machine haulting system and PLC controlling equipment ------One set.

All above features will be various according to different design and models.

Main Specifications:

Min roll width

1056mm

Net cutting width

1050mm

Number of cutting

5 cuttings-A4 210mm(width) depends on sizes

Diameter of paper roll

400-1200mm

Paper core ID

3”(76.2mm)-6”(152.4mm)

Paper weight

60-100gsm

Length of paper cutting

A4(297mm)

Paper quantity

0-500 pages

Ream height

Max 65mm

Designing speed of paper sheeting

250-300m/min

Times of sheet cutting

780cts/min

Cycle time of ream output

4.3/min

Real speed of paper sheeting

130m/min

Times of paper cutting

750cus/min

Cycle time of ream output

6-8/min

Paper ream output speed

28-35 reams/min

Paper sheeting accuracy

±0.2mm(compromise error)

Paper sheeting condition

1.Speed not change 2.Paper roll with no breakage 3. Qulified paper roll.

Transmission

AC Frequency converter, stepless speed regulating

Main power source

3phase/380v/50Hz or special made

Adjustable voltage

220V AC/22V DC

Installed capacity

35KW

Air consumption

300NL/min

Pneumatic pressure

6bars

Overall dimension(sheeting machine):

16000×2950×2100mm(Depends on models)

Weight:

19000kgs(Depends on models)

Overall dimension(packing machine):

3400×3300×1600mm(Depends on models)

Weight:

1500kgs (Depends on models)

For more details please contact Kingsun Machinery Team, this machine is special made as per customer requirement. So the specification is subject to change without notice.

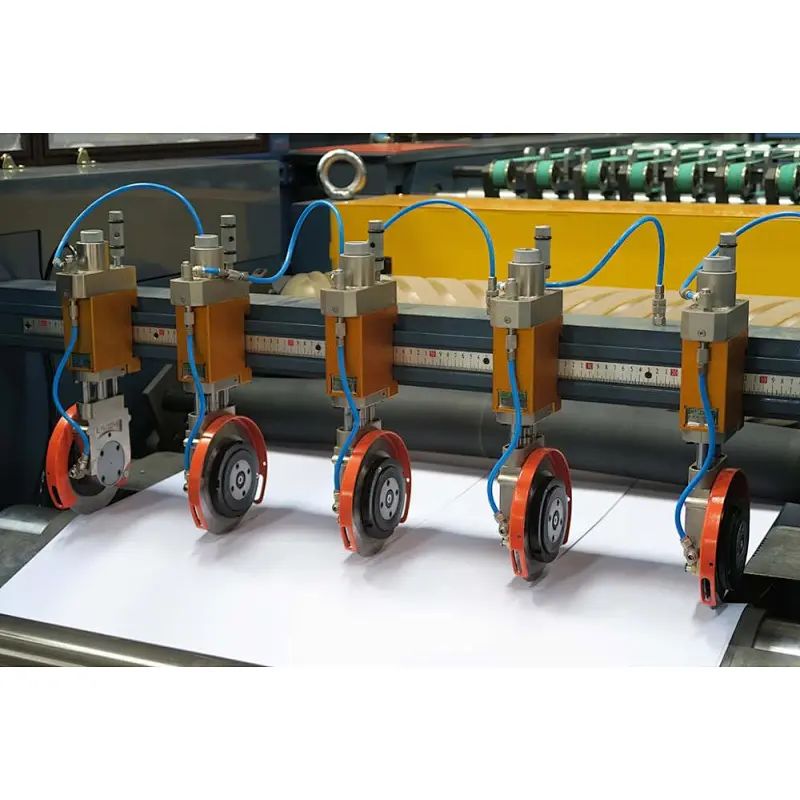

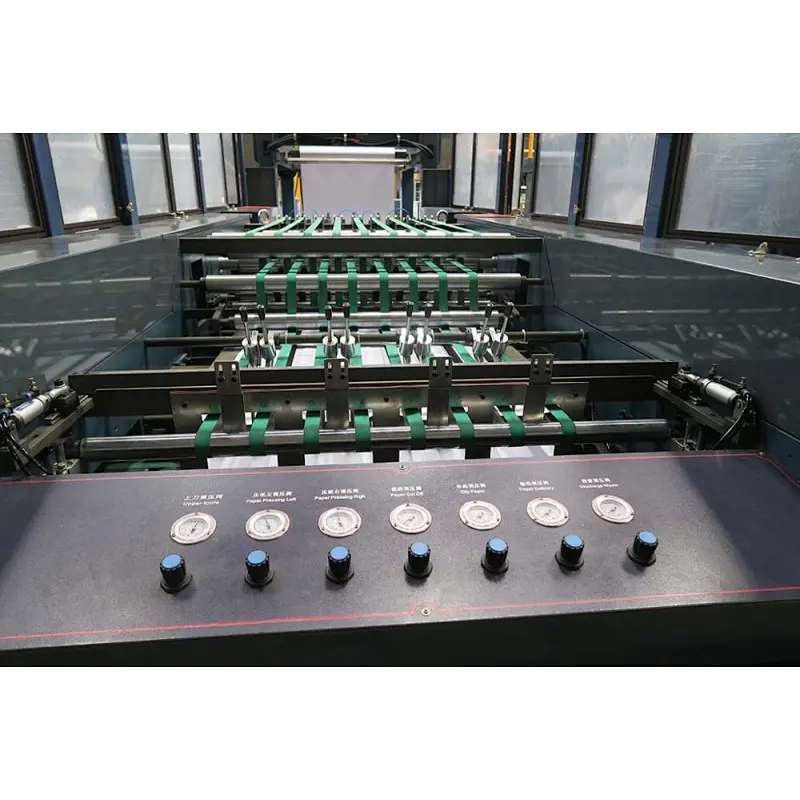

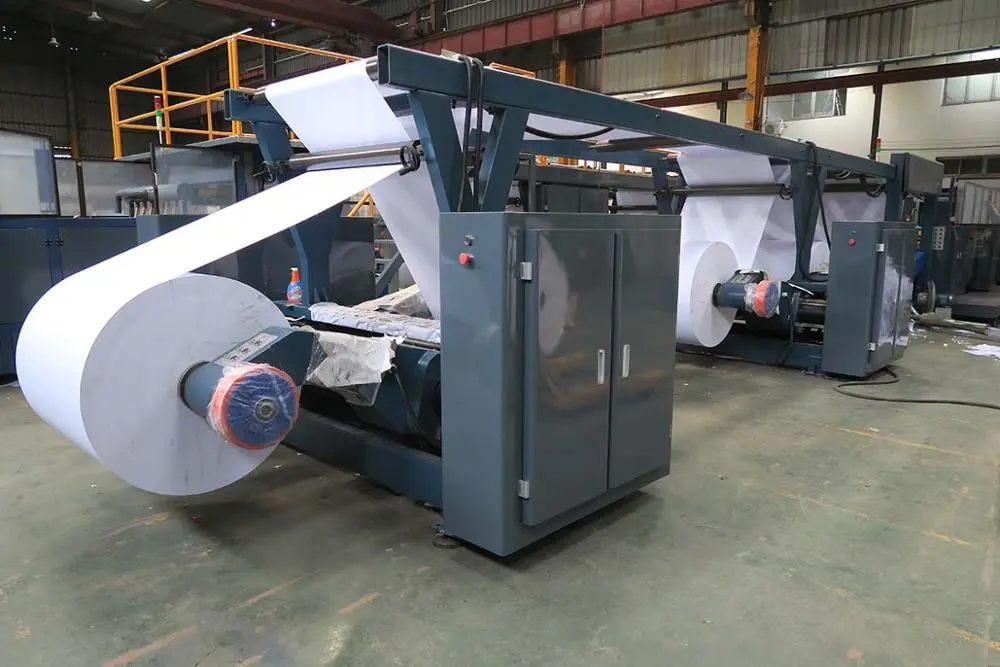

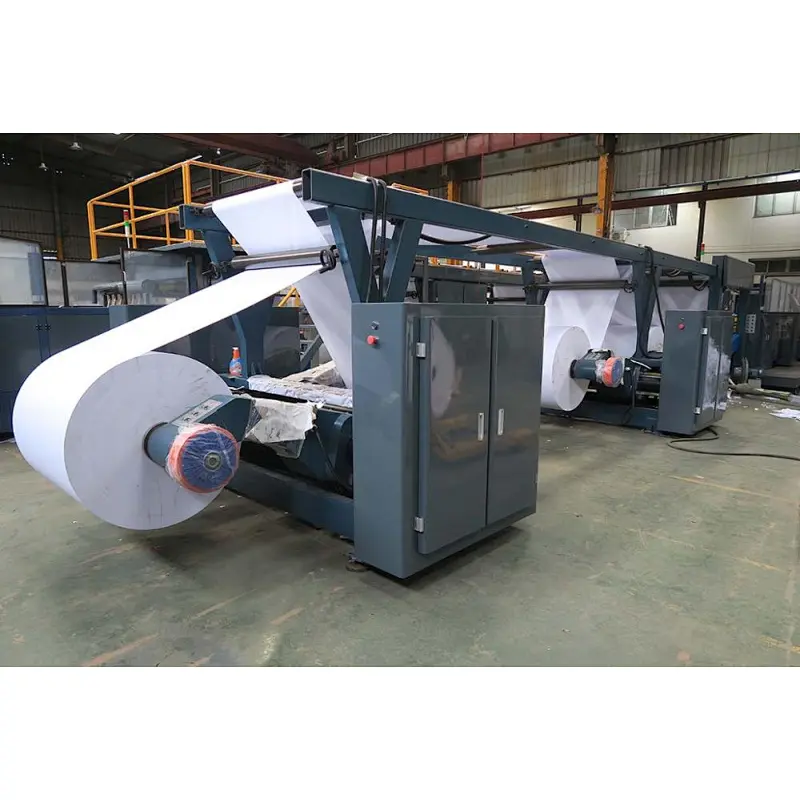

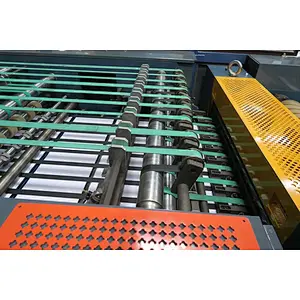

A4 paper making machine unwinder.jpgA4 paper making machine slitting.jpgA4 paper making machine sheeting.jpg

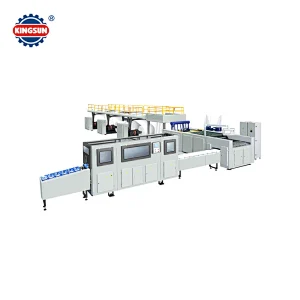

Kinsun A4 paper making machine.jpg
