Model NO.
SAFM-800A
Quantity:

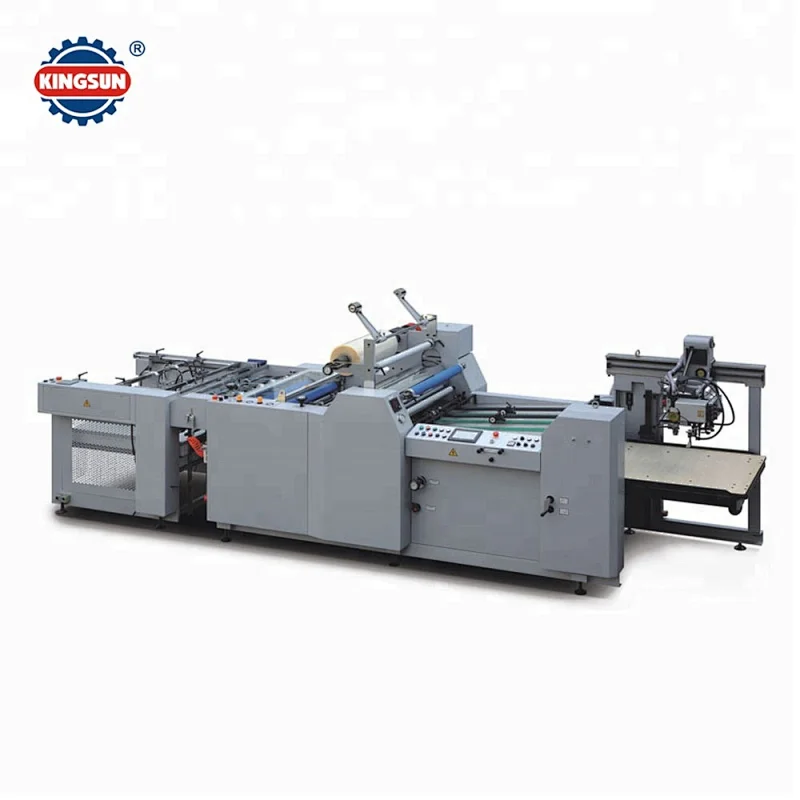

SAFM-800A Model Automatic thermal laminator Machine

Features:

1. Suitable for glueless film and thermal film.

2. Consits of feeder, lamination unit, cutting unit and paper collecting unit.

3. Automatic paper feeder realized with an oil- free vacuum pump.

4. Photoelectric protector works for paper shortage and paper breaking.

5. PLC ontrolled electric and pneumatic device.

6. High precise chromed heating roller with built- in oil heating system to ensure an excellent constant temperature.

7. Air shaft equipped with braking device that is easy to release the film at a proper tension and speed, and convenient for film's loading and unloading, and ensuring an accurate film location.

8. Film cutter for wide cut the film to fit the size of the paper.

9. Film perforating wheel to perforate the film edge to make the automatic cutting of laminated paper to be much more smoother and easier.

10. Anti- curved device to ensure a smooth laminated surface.

Max. paper780 x 1040mm
Min. paper 350 x 350mm
Laminting speed0- 45m/min
Paper thickness125- 500g/m2
Power21kw
Overal dimensions3900 x 1630 x 1650mm
Weight1800kg
