Model NO.
TYMK-750
Quantity:

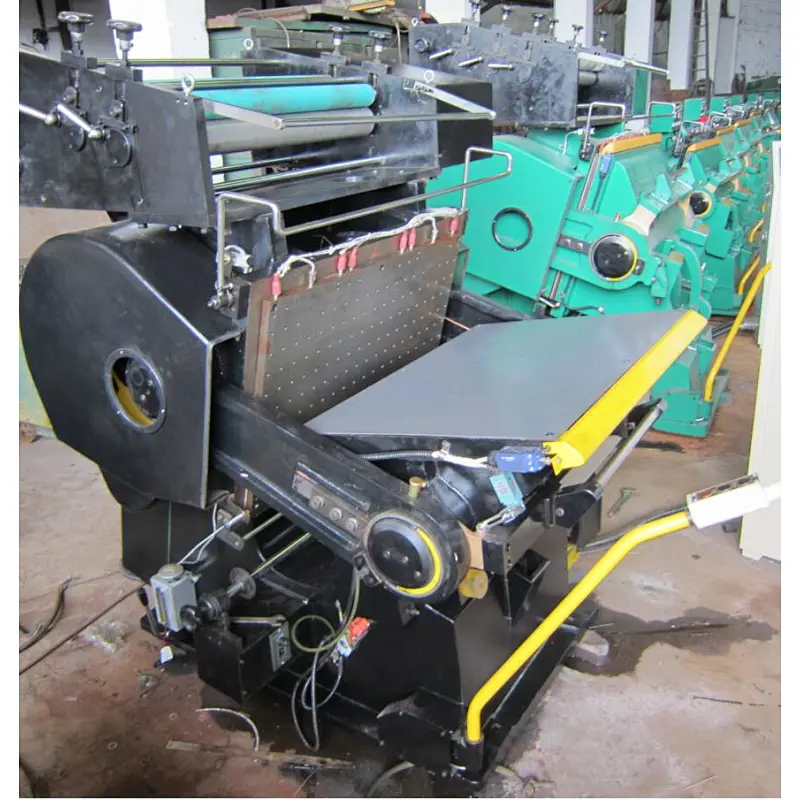

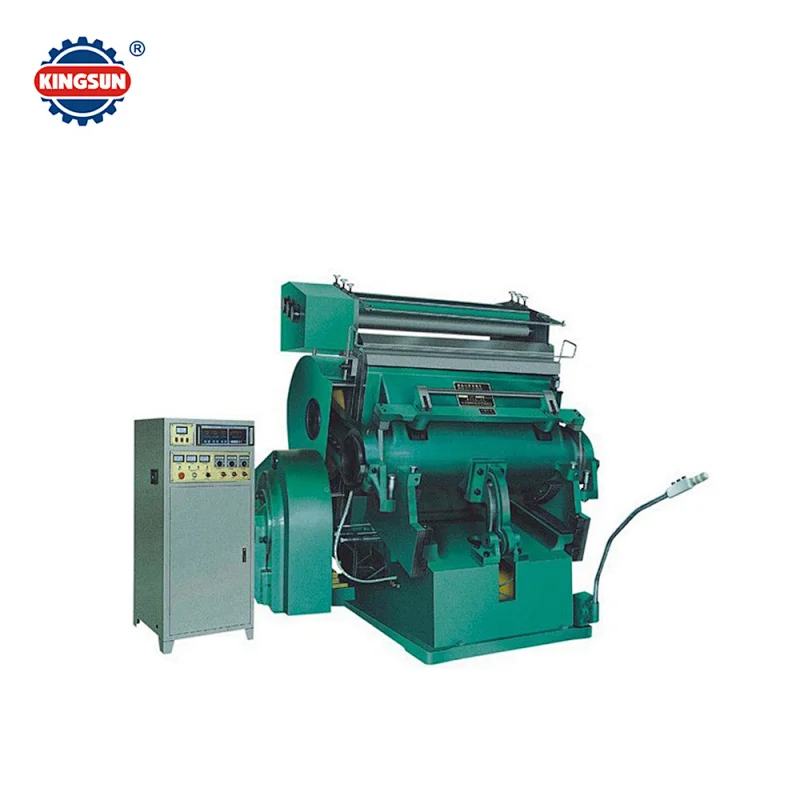

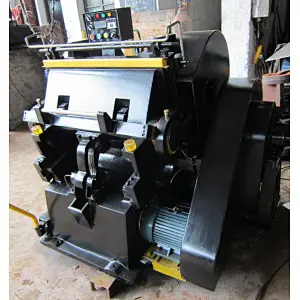

Manual Feed Hot Foil Stamping Machine

TYMK series hot stamping machine and die cutting machine is new type high precision machine for hot stamping and die cutting various hot stamping foil, press concave-convex, die cutting label, catalogue, paper box, book cover, invitation letter and new year card, etc. It is suitable for various materials such as paper, paper board, plastic sheet, leather, etc. It is an ideal machine to improve the grade of materials for printing, packaging and plastic.

Features:

1. High strength due to one piece casting by using top quality materials for machine body.

2. Single plate electromagnetic cluth is ingenious and reliable.

3. Operation height is reasonable designed, moving-bed opens to its optimum.

4. Single, continuous operation and opening dwell. Dwell range is adjustable.

5. Electric system is according to IEC standard.

6. Safety system is reliable.

7. Center lubricating system makes the machine long lasting.

8. Bigger size model can special made upon request.

Technical specifications:

Model

TYMK750

TYMK930

TYMK1100

Max. platen working area

720X510mm

930X660mm

1100X800mm

Max. stamping area

670X480mm

930X660mm

1100X800mm

Skip order range

Built-in processor in the computer

Working pressure

150tons

170tons

220tons

Foil-feeding length

500mm

640mm

800mm

Foil-feeding group

2 groups

3 groups

3 groups

Working speed

25 strokes/min

22 strokes/min

20 strokes/min

Main power

2.2kw

3kw

4kw

Main machine power

4.5kw

9kw

9kw
