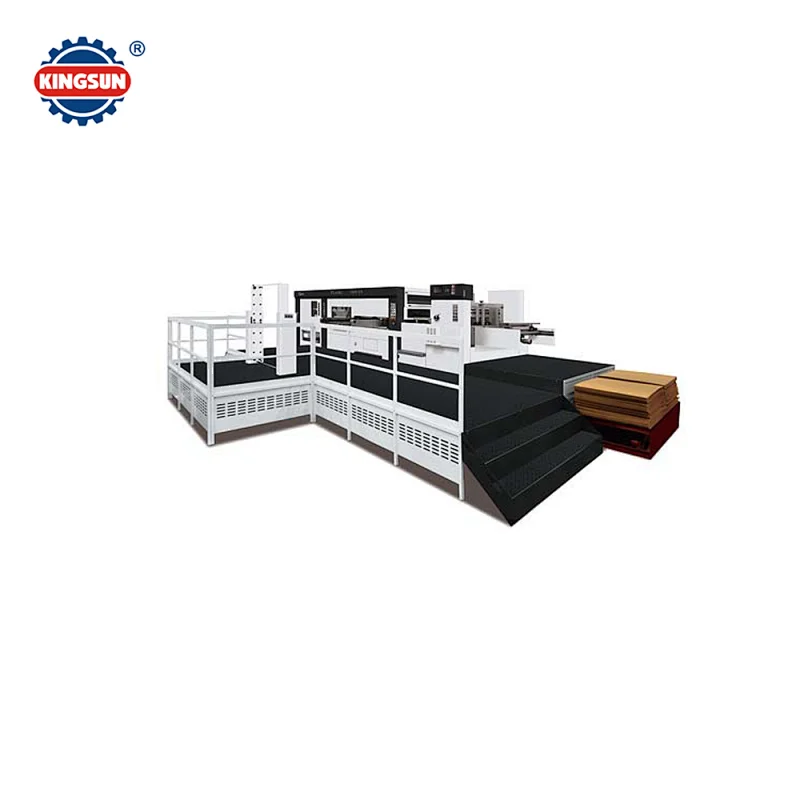

AD-1670CS Corrugated Box Automatic Platen Die Cutting Machine

Model NO.: AD-CS
Delivery:: FOB
Minimum order quantity:: 1 set
Country of Origin:: Shanghai

Quantity:

Product Description

AD-1670CS Model Corrugated Box Automatic Platen Die Cutting and Creasing Machine

This large format lead-edge paper feeding automatic die cutting creasing machine is according to the demand of market needs for big size cutting, adopts latest technology and make sure it has stable working for large format die cutting of cardboard and corrugated board. This machine is an ideal equipment for big packaging converting.

What is features of this machine?

1)High precision lead edge paper feeding with servo control

2)Adopts vacuum sucking system together with paper support roller air cylinder system to avoid stripping and scraping for printed side.

3)Separating running all edge stripping three frame system together central positioning device ensure smooth operation, fast and effective.

4)CE standard electric system to ensure smooth operation and safety of operators.

5)Pile delivery or counter belt delivery makes its convenient for output.

6)Reliable and flexible chase turning and central positioning system.

7)Motor driven die cutting pressure adjustment system to make its precise and fast to work.

Main technical specifications:

Model	AD-1300CS	AD-1500CS	AD-1670CS
Max feeding size	1300 x 980mm	1500x 1100mm	1670 x 1200mm
Min feeding size	550 x 400mm	550 x 450mm	650 x 550mm
Max die cutting size	1280 x 960mm	1490 x 1090mm	1650 x 1180mm
Max die cutting pressure	300tons	400tons	205N/mm2
Max machine speed	5000S/H	4500S/H	4500S/H
Total power	28kw	32kw	38kw
Precision	±0.5mm	±0.5mm	±0.5mm
Sheet range	E, C, B, A, AB corrugated board 1-6mm
Machine weight	21 tons	25tons	32 tons
Gripper edge	Min 6mm	Min 7mm	Min 8mm
Chase inner dimension	1340 x 980mm	1540 x 1100mm	1686 x 1210mm
Out dimensions	1000 x 400 x 280cm	1200 x 510 x 250cm	1350 x 680 x 260cm
