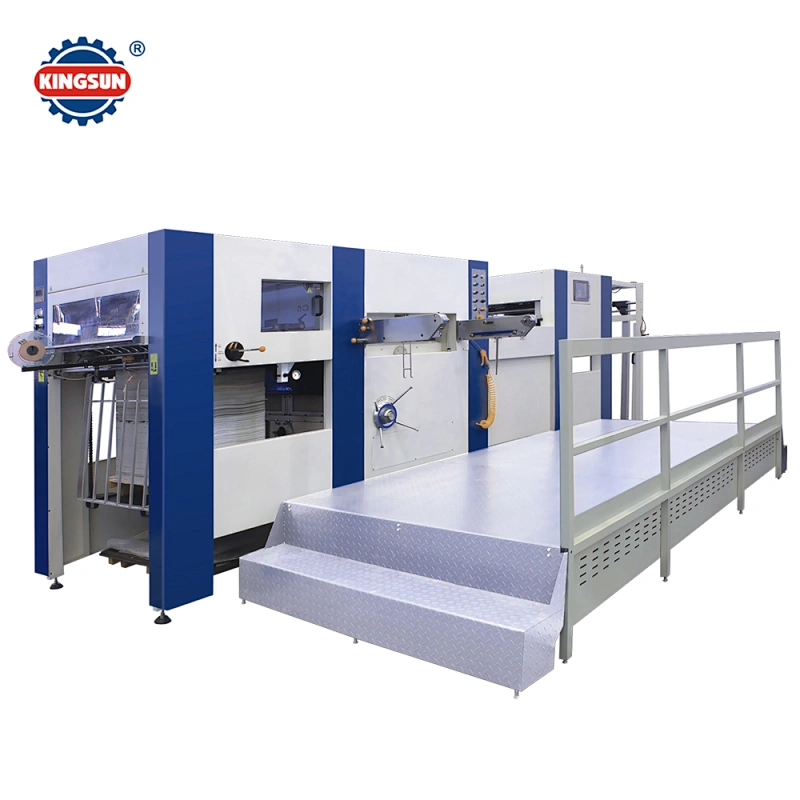

AD-E Series Flat Bed Paper Board Automatic Die Cutting Machine
AD-E Series Flat Bed Paper Board Automatic Die Cutting Machine

AD-E Series Flat Bed Paper Board Automatic Die Cutting Machine

Model NO.
AD-1020E,1060E,1080E
Quantity:

AD-E Series Flat Bed Paper Board Automatic Die Cutting Machine, Automatic Die Cutting and Creasing Machine

This series paper automatic die cutting machines are our newly improved type of paper processing machine to meet the demand of customers new high requirement for packaging. This automatic die cutting machine adopts the latest technology of similar top-level die-cutting machines in the world. The perfect design enables high stability at all parts of the machine, which means the lowest maintenance cost and highest working hours of the same type of the machine. The specially designed and made flatbed ensures the perfect matches of the beds under different pressure and the smooth conveying of the paper to meet the high requirement of the customers. The key spare parts are all adopt the international well-known companies high quality goods and the main structure parts are all processed by high precision machine tools, which enable the die cutting machine as high productivity and high safety.

Main specifications:

Model

AD-1100E

AD-1080E

AD-1060E

AD-1020E

Max. paper size

1120X780

1080X780

1060X760mm

1020X720mm

Min. paper size

400X370

400X370

400X370mm

400X370mm

Max. die-cutting size

1110×770mm

1070X770

1050X750mm

1010X710mm

Paper cutting thickness :

1.Paper Board

120-2000g/m2

120-2000g/m2

120-2000g/m2

120-2000g/m2

2.Corrugated Board

≤5mm

≤5mm

≤5mm

≤5mm

Height of paper feeding pile

1500mm

1500mm

1500mm

1500mm

Height of delivery pile

1220mm

1220mm

1220mm

1220mm

Cutting precision

≤±0.10mm

≤±0.10mm

≤±0.10mm

≤±0.10mm

Min. paper clipper size

7mm

7mm

7mm

7mm

Max. machine speed

7200s/h

7200s/h

7200s/h

7200s/h

Max. die-cutting speed

6500s/h

6500s/h

6500s/h

6500s/h

Max. die-cutting pressure

300T

300T

300T

300T

Power

17.6KW

17.6KW

17.6KW

17.6KW

Dimensions(LXWXH)

7800×4000×2150mm

7650X3900X2150mm

6750X3900X2200mm

6500X3900X2150mm

Weight

17.5T

17T

16.5T

16T

Automatic die cutting machine main features:

1.Automatic Die-cutting and Creasing Machine Feeder: The feeder adopts the European technology with four suckers and four blowers. The suckers are adjustable to ensure the steady conveying of different type and shape of paper without stopping the machine. The easy to be adjusted functions can do thin and thick paper for an accurate convey.

2.Main Chain Drive(Torque Limiter):The imported divider and clutch makes the chain to run intermittently to ensure the safety to operator and reduce the damages to the machine.

3.Driving Shaft: All the driving shafts are adopted the steel alloy with high intensity and stability.

4.Paper Conveying Part: The pressure of the paper conveying belt can easily be adjusted to ensure the constant conveying of paper to the desired position with little break down time. The paper conveying belts are imported and rubber pressers and the hair pressers are high wear resisting.

5.Lubricating and Cooling System: The Lubricate system automatically with low-pressure alarm. The high power cooler can ensure the oil work at constant temperature.

6.Pneumatic Clutch: It adopts Italian pneumatic clutch and German FESTO pneumatic component with high torque and precision.

7.Worm and Crank Shaft: They adopts high quality steel alloy and specially processed to ensure high precision, long working hours and low abrasion.

8.Electric Control: The machine is controlled by OMRON PLC. All the electric parts are either from Japan, France, Germany or Taiwan, The man machine interface provides accurate working states of the machine.

9.Main Motor: It is imported from Germany and made by Siemens with the feature of high power and low energy consumption.

10.Paper Feeding System: The motor adopts USA.-made, with the feature of high torque and stability.

11.Worm gear: It adopts bronze alloy from Taiwan. It has the feature of high precision, low noise and low abrasion.

12.Die-Cutting Part: The Die and the die-cutting plate are specially designed for safe, easy to operate. The pneumatic locking device makes the fixing of the plate strong, accurate and time-saving.

About us


Our advantage


FAQ

Q1.: What does your company usually do regards the quality control?
A.:We pay high attention to quality control for all equipment from very beginning to the

very end. Strictly process checking and testing before shipment, make sure good quality machine

arrivals to the buyer company.
Q2.: What service or guarantee can you provide?

A.: All the machines bought from Kingsun company with one year main parts guarantee;

Machine installing and operator training service; Whole-life free technical support.

Q3.: Where is your company located? How can I visit there?

A.: Our company is located at Wenzhou city, Zhejiang Province, China. You can fly to

Shanghai or Guangzhou or Beijing, then take connect flight to Wenzhou airport.

Or you can take fast train from Shanghai to Wenzhou South railway station. We will pick you up you

from airport or train station.

Q4: What about your standard delivery date ?

A: Usually 30-45days, depends on different products, some of them need more or less time.

Q5: Can you arrange to ship the machine to our country?

A: We have 14 more years’ experience for international market, we deliver and install worldwide,

just give us your port name or location, we can arrange it for you.

Q6: Will you send engineer to help installing the machine?

A : Yes, for some of machine which need us to send technician, then we will send our engineer or technician

to your factory to help installing the machine, training the operators and make sure your operators

running well the machine before they return to China.

Q7: If the machine get damaged, what can I do?

A: In the guarantee time (1 year), we will send the spare parts to you for free by DHL or other couriers. After the guarantee time

we still always support you during whole life of machine, any parts need we just charge you low cost. Our service team will

provide same good after-sale service as the pre-sale service,any of your question will be replied within 12 hours.
