Model NO.
1300,1450,1600
Delivery:
FOB
Country of Origin:
Shanghai
Quantity:

AFL Series corrugated board and cardboard paper automatic flute laminating machine

AFL series automatic flute laminating machines is latest designed model with advantages of easy operation, working reliable, convenient maintenance, high speed, low noise and high accuracy. It will provide to customers with more excellent reliable equipments, which help you to gain the competitive power in the market competing.


1. AFL series Automatic Flute Laminating Machine adopts timing belts imported from Japan,which are constructed with wear resistant and high tensile, thus guarantee the extremely accurate precision of lamination.

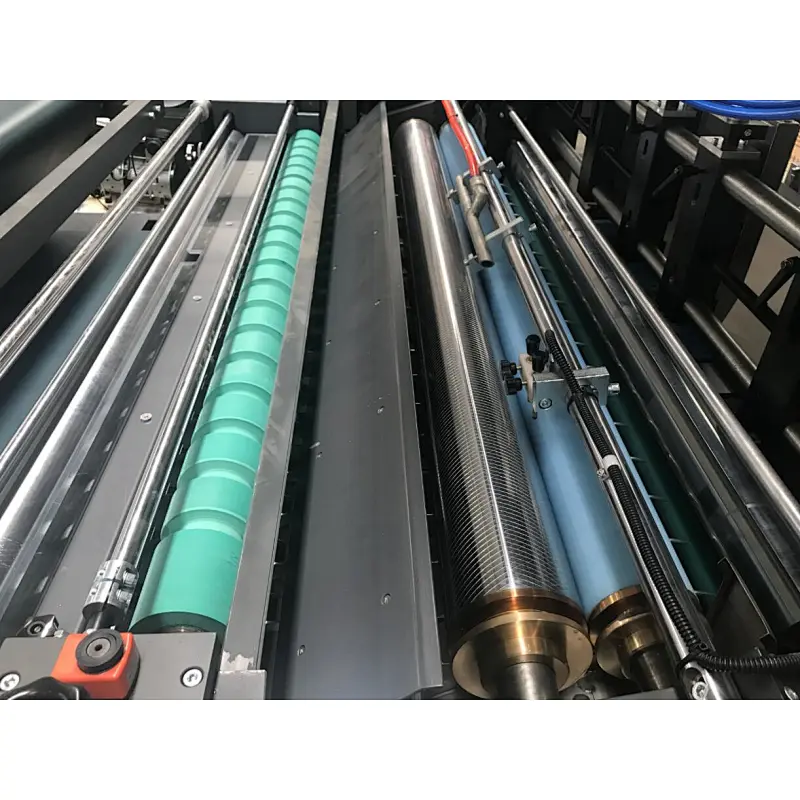

2. Adjustable glue roller system applies evenly on the corrugated paper and achieved gluing action.The recycle gluing system is refilled glue in the slot at both gluing rollers by electric glue controller. The glue system prevents wasting glue

that makes it efficiency.

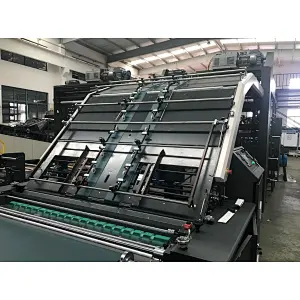

3.The advanced suction belt feeding mechanism of the bottom sheet feeder ensures A,B,C,D,E and F flute, single and double wall corrugated paper to be delivered smoothly even at high speed.

4. It is most suitable equipment for high grade color print corrugated packaging converting.

(automatic flute laminating machine, automatic flute laminator,corrugated cardboard flute lamination machines, paper laminating machine)

Main specifications:

Model

AFL-1300

AFL-1450

AFL-1600

Maximum size(W×L)

1300×1100mm

1450×1100mm

1600×1400mm

Minimum size(W×L)

350×350mm

350×350mm

450×450mm

Laminate precision

≤±1.5mm

≤±1.5mm

≤±1.5mm

Max Speed

6000s/min

6000s/min

6000s/min

Total power

12kw

12kw

13kw

Total length

12.6m

12.6m

15m

Total weight

6900kgs

7350kgs

8200kgs
