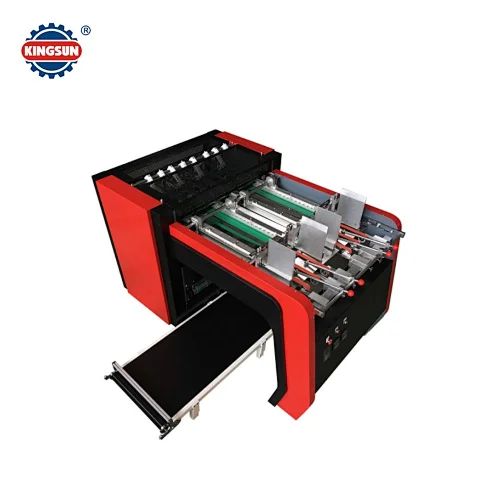

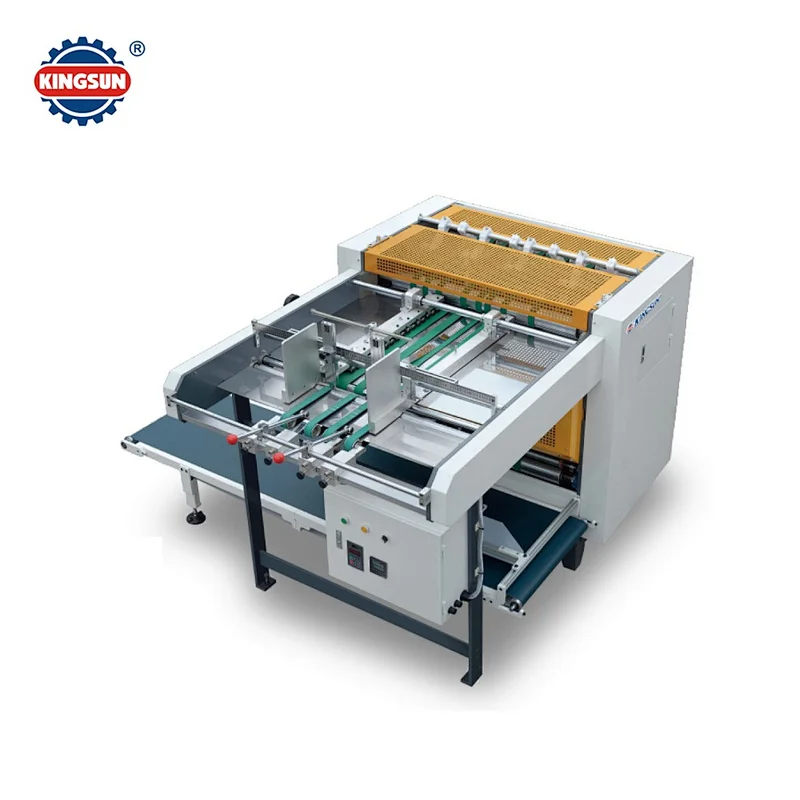

KLZ-900 Automatic Rotative Board Grooving Cutting Machine
KLZ-900 Automatic Rotative Board Grooving Cutting Machine
KLZ-900 Automatic Rotative Board Grooving Cutting Machine

KLZ-900 Automatic Rotative Board Grooving Cutting Machine

Model NO.
KLZ-900
Quantity:

KLZ-900 Automatic Rotative Board Grooving Cutting Machine

This series automatic grooving machine is mainly for rigid box making,it is new improved, also we do have the other models for options, this machine is aimed to cut groove V or groove U (optional) onto kinds of materials, like cardboard, MDF board, so necessary for making higher quality rigid boxes or hard covers etc. With this automatic grooving machine,you can greatly improved the efficiency of finish products and have much better quality.

Main specifications:

Cardboard width: min. 100 mm - max. 800 mm
Cardboard length: min. 200 mm - max. 600 mm
Distance of each groove: min. 70 mm
(for tools installed on the same support) - No limit for tools installed
on two differents bars)
Cardboard thickness: min. 1 mm max 4 mm
Grooves number per cycle : 8 grooves max. per cycle
Production speed: 30 cycles/minute
Power required: 3.7Kw/380V
Overall dimensions: L1500 x W1400 x H1600mm
Weight:1380Kg
