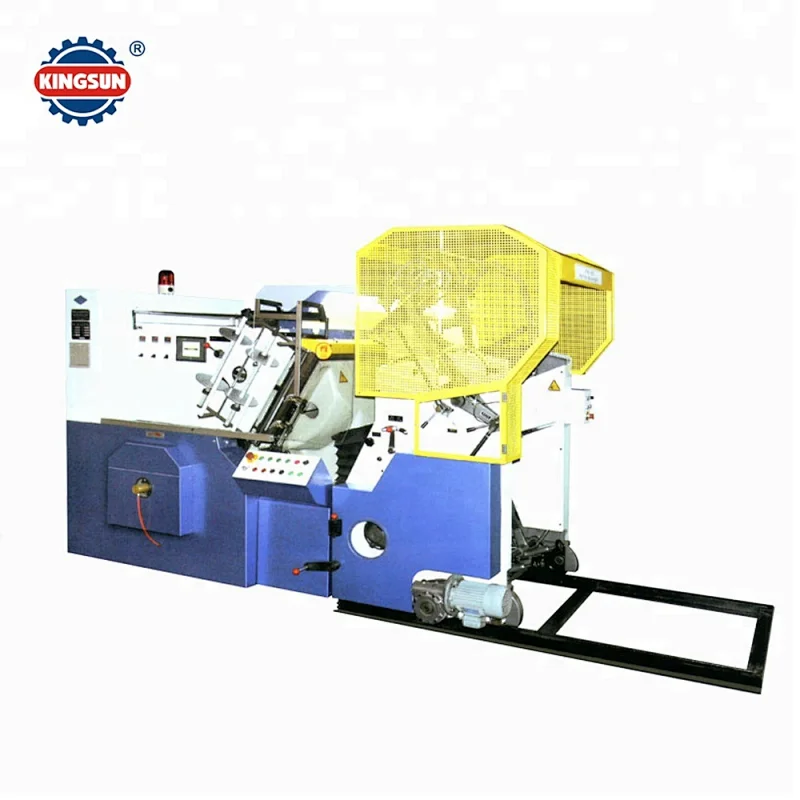

ATML-800 Model Automatic Hot Foil Stamping Machine
ATML-800 Model Automatic Hot Foil Stamping Machine
ATML-800 Model Automatic Hot Foil Stamping Machine
ATML-800 Model Automatic Hot Foil Stamping Machine
ATML-800 Model Automatic Hot Foil Stamping Machine

ATML-800 Model Automatic Hot Foil Stamping Machine

Model NO.
ATML-800
Quantity:

Fully automatic hot foil stamping machine

Features of hot stamping machine:

1. The automatic hot stamping machine of vertical type is designed to meet the customers' needs of foil hot stamping, die cutting and indentation processing.

2. The automatic hot stamping machine has the advantages of easy operation, accurate positioning, safety, low investment and high return, which is ideal for packaging printing enterprises to produce exquisite printed products.

3. It is consisted of main engine, automatic sheet feeding and collecting mechanism, hot stamping mechanism and electric control device. 4. After the connection of hot stamping mechanism and automatic sheet feeding and collecting mechanism, the machine then can conduct the work cycle that is automatic sheet feeding - die cutting/gold stamping - stripping - sheet collection.

5. Equipped with PLC and man-machine interface system, the electrical components mainly employ the imported famous products. And the hot stamping foil movement is controlled by two groups of servo motors.

6. The automatic hot stamping machine employs centralized lubrication system.

Main specifications:

Model

ATML-800

Max. sheet size

800x580mm

Min. sheet size

280x220mm

Inner chase dimension

800x532mm

Sheet feeder stacking height

800mm

Sheet collection stacking height

160mm

Application range of cardboard

100-2000g/m2

Max. speed

2000/H

Air pump displacement

40m2/H

Power of electric hot plate

8kw

Max. pressure

110x104N

Power

12kw

Weight

4500kg

Dimensions(L X W X H)

2700x1880x2020mm
