Automatic Blocking Machine
Automatic Blocking Machine

Automatic Blocking Machine

Model NO.
KZY
Quantity:

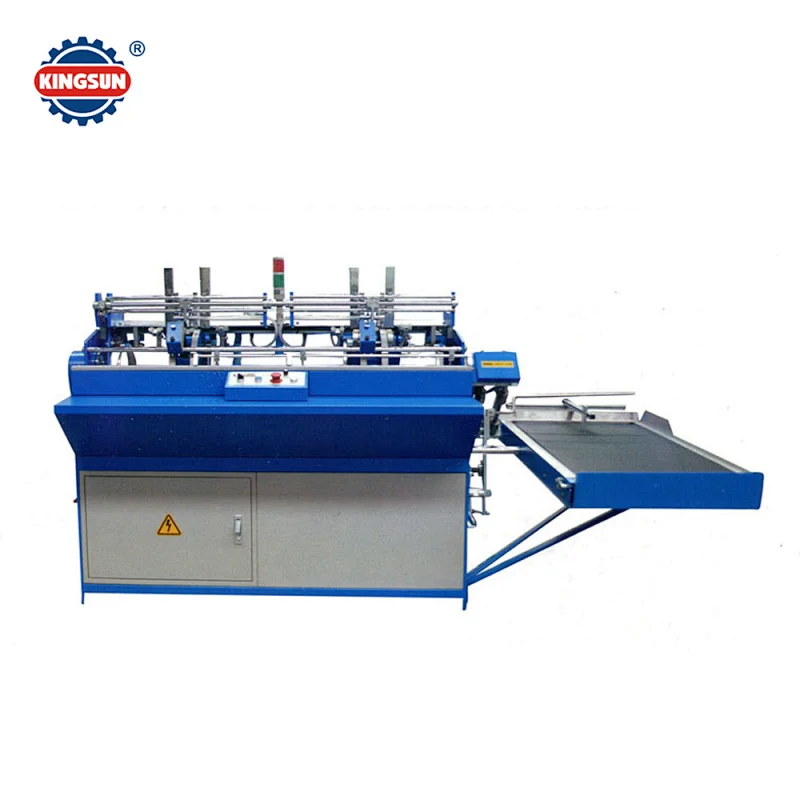

Automatic Blocking Machine KZY series

Features:

-This machine allows to glue single page or multiple pages for paperbacks, and to glue endpapers for hard covers, high-classed notebooks before its thread sewing of book block.

-Free adjustment of glue volume.

-Gluing method: normal gluing and upmoving gluing.

-Accurate photocell detection for page missing.

-The sheet transmission structure is similar with the gathering structure, stable and reliable.

-The machine frame is made of high quality steel, and with self-aligning bearings which ensure a high speed operation.

Main specifications:

Model

KZY-440

KZY-580

Max. size of book block

440 x 310mm (single page no less than 60g/m2)

580 x 320mm(single page no less than 60g/m2)

Min. size of book block

155 x 100mm

155 x 100mm

Max. mechanic speed

4800 pages/h

4800 pages/h

Main motor power

0.75kw

1.5kw

Air pump power

1.5kw

1.5kw

Machine weight

860kg

960kg

Overall dimensions

1980 x 1350 x 1400mm

2430 x 1350 x 1400mm
