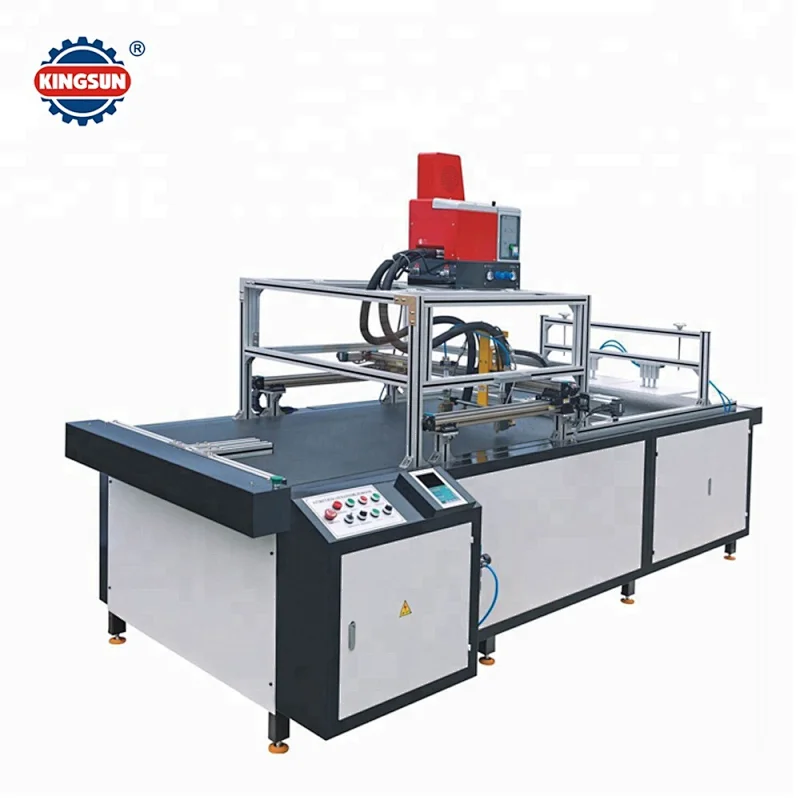

KS-650 Automatic Book Box Assembly Line
KS-650 Automatic Book Box Assembly Line

KS-650 Automatic Book Box Assembly Line

Model NO.
KS-650
Quantity:

KS-650  Automatic Book Box Assembly Line

Features:

1. Aimed to make book shaped box.

2. It consists of hard cover feeding, glue spraying on hard cover, box feeding and positioning onto the hard cover, box pressing, book box forming.

3. With advanced 32-bit processor and optimized software to fulfill all functions of high precision and automation.

4. Human man interface, 5.7 inch touch screen, easy for operation.

5. By using of advanced glue spraying system, wear free closing structure enables the glue system to precisely cut off the adhesive flow.

6. The maximum switching frequency is 500 cycles per second.

7. With high temperature hot melt glue to ensure the efficiency and quality.

8. Able to glue spray any patterns as required, special products with specific glue spraying can be custom-made.

Main specifications:

Width of finished book box

190- 600mm

Length of finished book box

200- 1000mm

Height of finished book box

150mm

Speed

2200- 3000pcs/h

Power

6500W

Air pressure

5- 8kg/m2

Machine size

4000 x 1600 x 1500mm

Machine weight

800kg
