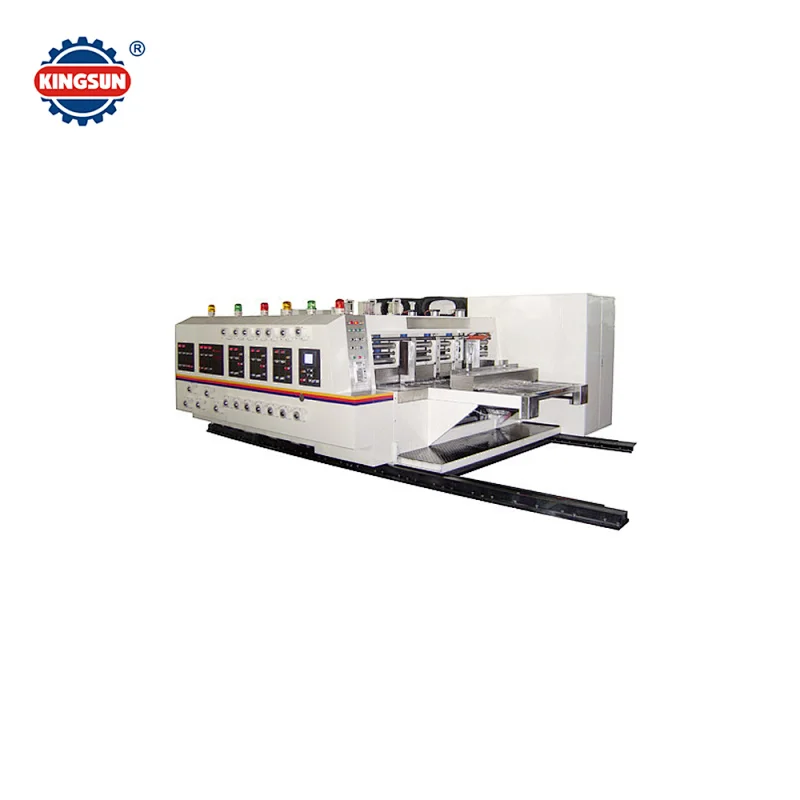

YKMZ-3000 Series Flexo Printer Slotter
YKMZ-3000 Series Flexo Printer Slotter
YKMZ-3000 Series Flexo Printer Slotter

YKMZ-3000 Series Flexo Printer Slotter

Model NO.
YKMZ-3000
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
15 set / Month
Country of Origin:
Shanghai or Ningbo
Quantity:

YKMZ-3000 Series Flexo Printer Slotter

COMPUTERIZE OPERATION UNIT

1. Memory Return to Zero: When the machine is working and you want to open it and clean or change the plate, It can return to zero after the machine shut.

2.The Controllable Anilox Roller Up and Down: When one unit have no use to printing for a while, it can be make Anilox Rollers of this unit not to go down and not to clean the ink roller.

3.Auto Carton Orderly Device: The flexible operation suitable for the personal operation habit that can be set the time and the pitch time of carton ordering.

4. Position Return to Zero: The printing plate can return to zero and make it reach the position once. Usually try to printing 2 piece of cartons can reach the right position.

5.Main motor screen show the speed, feeding, carton orderly and skip feeding ect

6. show the set number of order and actual produces. After quota setting, it stop feeding and the anilox roller break away the print plate automatically.

Main specifications:

Specification

1800/2200 model

2500 model

2800 model

Highest Speed pcs/min

160

150

150

Highest Printing speed pcs/min

140

120

120

Max. paper feeding size (mm)

1770/2170×1000

2470×1200/1400

2770×1200/1400

Min. paper feeding size (mm)

650×250

650×380

700×380

Max. printing size (mm)

1750/2150×950

2450×1150/1350

2750×1150/1350

Standard printing plate thickness (mm)

7.2

7.2

7.2

Power (kw)

36

36

36

Main power (kw)

32(depend on the printing unit )

50(depend on the printing unit )

50(depend on the printing unit )
