Automatic High Speed Surface Rewinding Type Paper Aluminum Foil Slitting Machine
Automatic High Speed Surface Rewinding Type Paper Aluminum Foil Slitting Machine

Automatic High Speed Surface Rewinding Type Paper Aluminum Foil Slitting Machine

Model NO.
WKQZ
Minimum order quantity:
1 set
Quantity:

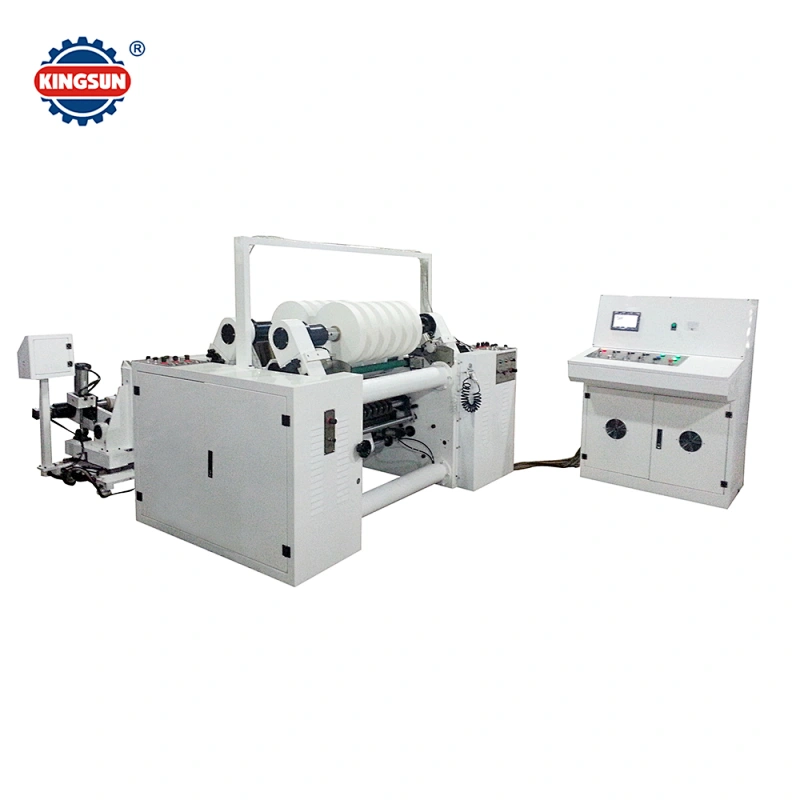

WKQZ Automatic High Speed Surface Rewinding Type Paper Aluminum Foil Slitting Machine

This is high grade and high speed paper slitting machine for aluminum foil, cigarette tipping paper, narrow paper and film. It is surface type slitting and rewinding, this way guarantee the rewind roll very even and nice. Machine max speed can reach 450m/min, whole machine adopt import famous electrical parts.

Main technical parameter

Maximum material width

800mm

Guide roller width

850mm

Maximum unwinding diameter

800mm

Unwinding core diameter

76mm

Max machine speed

400m/min

Rewinding diameter

600mm

Rewinding core diameter

120mm

Minimum slitting width

25mm

Paper thickness

25-120 gsm

Total power

20kw

Machine dimension

3500 × 4500 × 1700mm

Machine weight

4000kg
