Model NO.
MT-200
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
20.0 set / Month
Country of Origin:
Ningbo
Quantity:
roduct Description

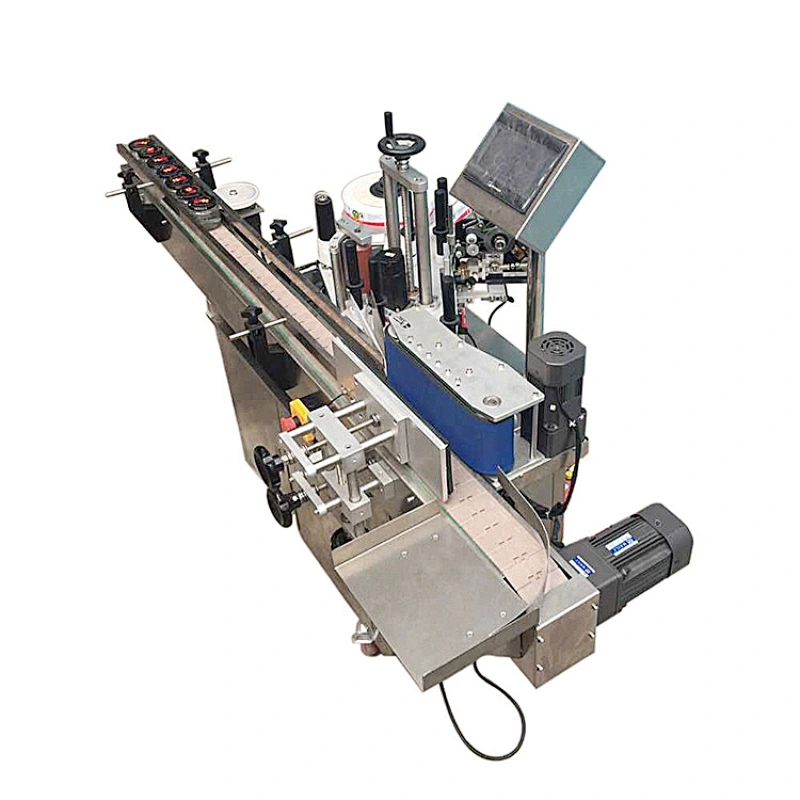

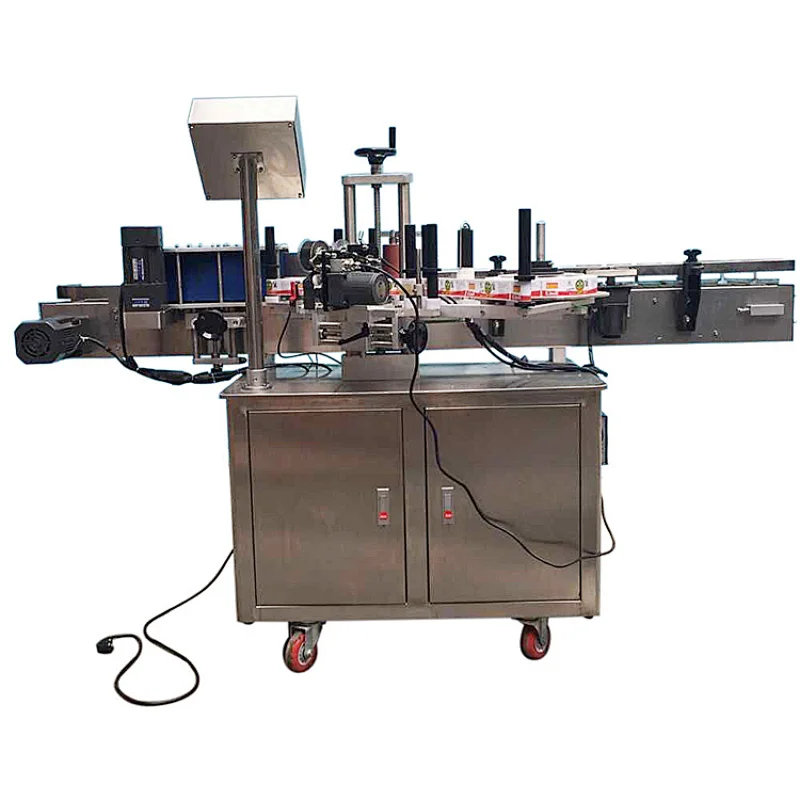

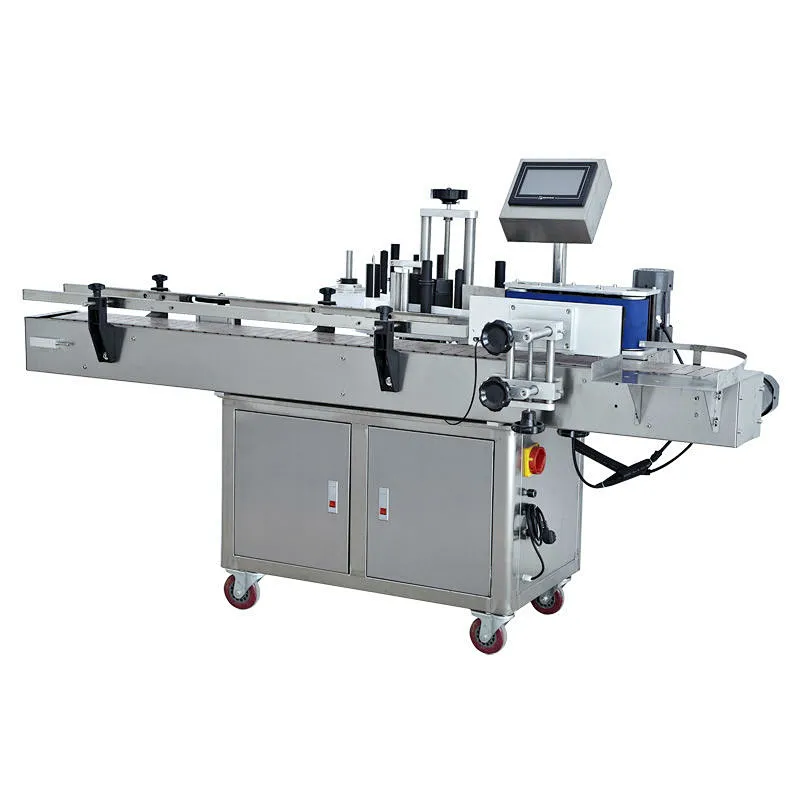

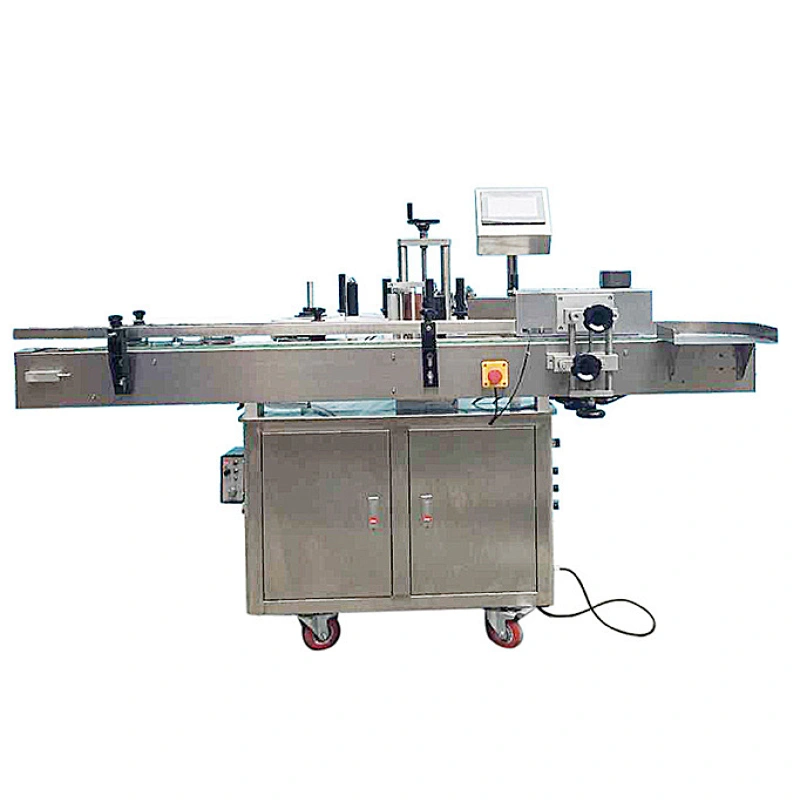

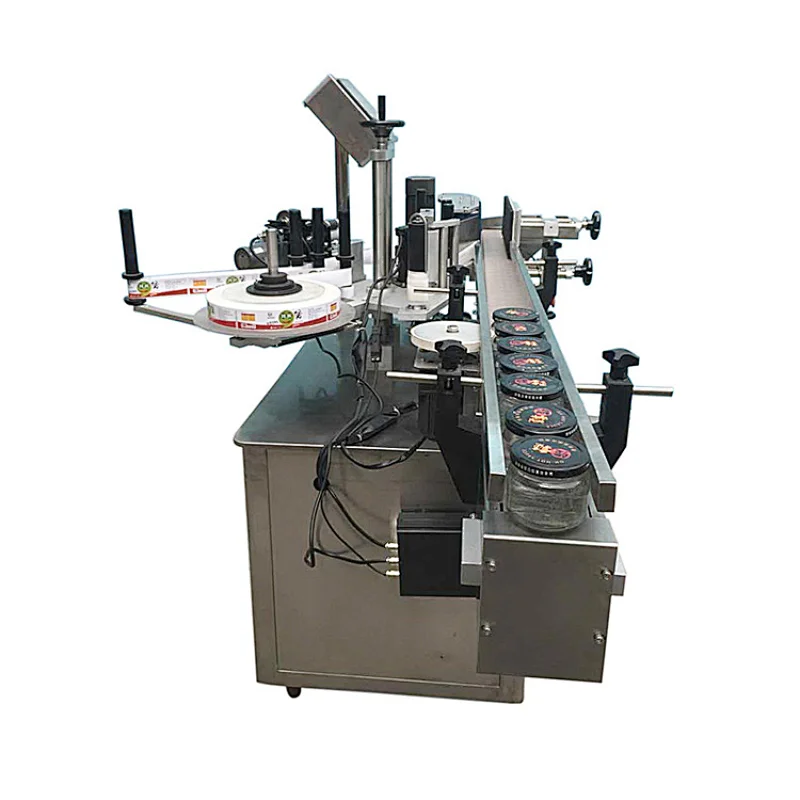

Auto labeling machine/bottle sticker labeling machine

This labeling machine suits for un-dried-clue label-sticking of φ35mm-φ96mm cylinder vessel, can once only complete label-sticking and packing up. It uses photoelectric detecting and synchronous tracing, ensuring synchronism of label-conveying speed and bottle-rotating, making labels sticking and pressing level.
The machines function is reliable its keypad has a high automation. The production speed can be adjusted in the scope of 0-150 bottles/minutes.

Introduction:

MT-200 model vertical round bottle non-dry tape marking machine, in order to achieve rationalization of production target and design. Labeling process automation, simple operation, the production speed is quick, labeling position, beautiful, neat, For pharmaceutical, chemical and foodstuff trades etc circular vessels labeling.

Second, working principle and structural features

Will different packing objects into labeling machine belt conveyor, by driving a bottle into the bottle conveying institutions, continuous motion by depending on fiber detected after bottle, photoelectric signal transmission to PLC, by PLC output signal processing will lose to the stepping motor, the standard of stepping motor, through the rolling institutions will stick son, tag labeling of objects by labeling machine conveyor belt into the next procedure or containers.

Host adopts stepping motor driver, sets of (Taiwan) PLC control system, sets of (Taiwan) touch people interface, keyence fiber (Japan) device etc imported components, gathers numerous leading technology, make it become the industry has the advantage of technology products. Microcomputer automatic control, interface screen friendly human-machine interface, ingenious mechanical structure, make the operation simple and powerful function, Can realize tag number, counting, set print control, labeling, lack of control, marking, colorless such abnormalities automatic detection and alarm functions, Random capacity and the quantity management label, Adjust tightness labels, The length and tags, Host height and adjust position before, Optional ribbon typewriter one, Labeling and tag with reaction degree detection. The machine adopts high-quality T6 aluminum and stainless steel SUS304, well made, in conformity with the requirements of GMP. LM - ST vertical non-dry tape marking machine is a very good price.

Main Specification

Model

MT-200

Label height

10~140mm

Label length

15~200mm

Label-sticking precision

±1mm

Label-sticking speed

0-18m/min

Bottle diameter of suiting for

φ35mm-φ95mm

Power source

220V 50Hz

Total power

0.75KW

Weight

about 250Kg

dimensions

2000×1000×1350L×W×H)(mm)

Customizing is available
